Запчасти Case IH 6088 (72.350.AI[04]) - SEPARATOR JACKSHAFT HOUSING, BEATER (72) - SEPARATION

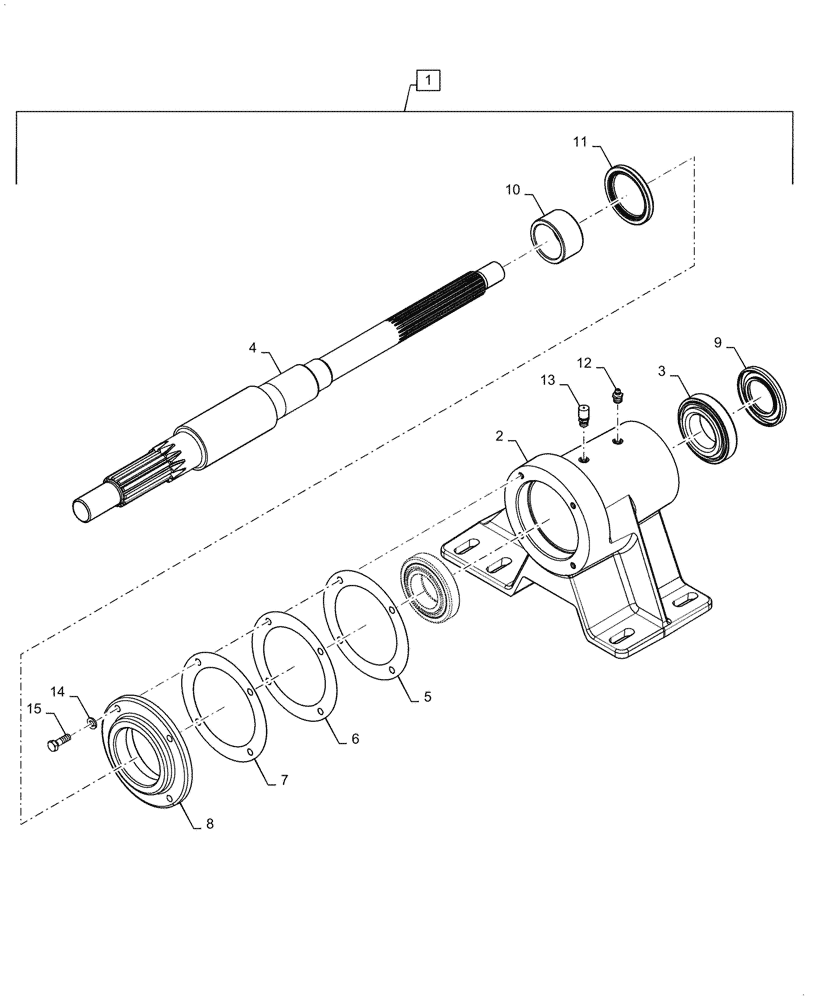

Схема запчастей Case IH 6088 - (72.350.AI[04]) - SEPARATOR JACKSHAFT HOUSING, BEATER (72) - SEPARATION
2
8
4
9
15
3
12
5
10
14
13
6
7
1
11

Артикул

Название

Примечание

Количество

1

87744680

HOUSING

Separator Jackshaft, 5088, Incl 2 - 15

1шт.

1

87609224

HOUSING ASSY.

Separator Jackshaft, 6088/7088, Incl 2 - 15

1шт.

2

87343282

HOUSING

Jackshaft Bearing

1шт.

3

87341589

BEARING ASSY,47.63mm ID x 90mm OD x 20mm W

1шт.

4

87744723

SHAFT

Separator Jackshaft, 5088

1шт.

4

87343280

SHAFT

Separator Jackshaft, 6088/7088

1шт.

5

87343289

SHIM

Bearing, .005"

1шт.

6

87343290

SHIM

Bearing, .007"

1шт.

7

87343291

SHIM

Bearing, .010"

1шт.

8

87343285

SEPARATOR

Rear Bearing Hub

1шт.

9

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

Hub, Forward

1шт.

10

181269C1

SPACER

Jackshaft Rear

1шт.

11

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

Hub, Rear

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

13

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

1шт.

14

492-11031

LOCK WASHER,5/16"

4шт.

15

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

Выбрано товаров: 17
