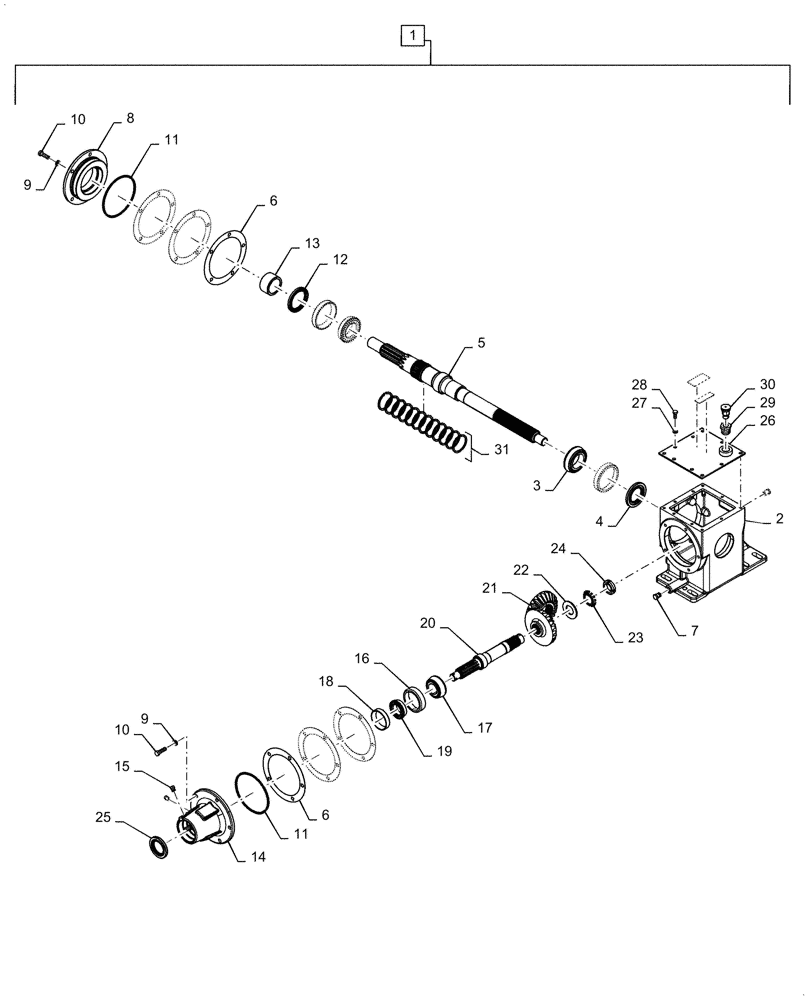

Запчасти Case IH 6088 (72.350.AI[03]) - GEARBOX, STRAW CHOPPER / FLAIL (72) - SEPARATION

1

87608781

GEARBOX

Straw Chopper, Incl 2 - 31

1шт.

1

87634147

GEARBOX

Flail, Incl 2 - 31

1шт.

2

181278C1

BEARING HOUSING

Gearbox Case

1шт.

3

87341589

BEARING ASSY,47.63mm ID x 90mm OD x 20mm W

Incl Race

2шт.

4

181287C1

SEAL,47.65mm ID x 79.5mm OD x 9.53mm Thk

Drive Shaft

1шт.

5

87386758

SHAFT

Jackshaft

1шт.

6

195484C2

SHIM KIT

Rear Bell Housing

1шт.

7

217-405

PLUG,Hex Hd, 1/4" - 18 NPT

2шт.

8

181274C1

BEARING HOUSING,79.375 mm ID x 177.8 mm OD x 38.1 mm

1шт.

9

492-11038

LOCK WASHER,3/8"

10шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

11

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

2шт.

12

181288C1

SEAL,60.33mm ID x 79.5mm OD x 9.53mm Thk

Drive Shaft, Rear

1шт.

13

181269C1

SPACER

Jackshaft Rear

1шт.

14

191245C2

HUB

Bell Housing Rear

1шт.

15

217-84

PLUG,Hex Hd, 1/8"-27, Brass

2шт.

16

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

1шт.

17

1345296C1

ROLLER BEARING,1.3755" ID x 3" OD x 0.9375"

1шт.

18

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

20

181195C1

SHAFT

Chopper Drive

1шт.

21

243333A1

BEVEL GEAR

Set, Chopper Drive

1шт.

21

87608658

GEAR SET

Flail Chopper, 28T/21T

1шт.

22

396-11119

WASHER,30.18mm ID x 57.15mm OD x 3.4mm Thk

1шт.

23

55-2006

BEARING WASHER,Type TW-106

1шт.

24

54-2006

BEARING LOCK NUT,Bearing, 1.1811" Bore

1шт.

25

192527C1

OIL SEAL,44.45mm ID x 69.95mm OD x 7.92mm Thk

Case Input

1шт.

26

181281C1

COVER

Chopper Drive

1шт.

27

492-11031

LOCK WASHER,5/16"

10шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

29

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

1шт.

30

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

1шт.

31

1315284C1

PACKAGE

Shim Ring

1шт.
