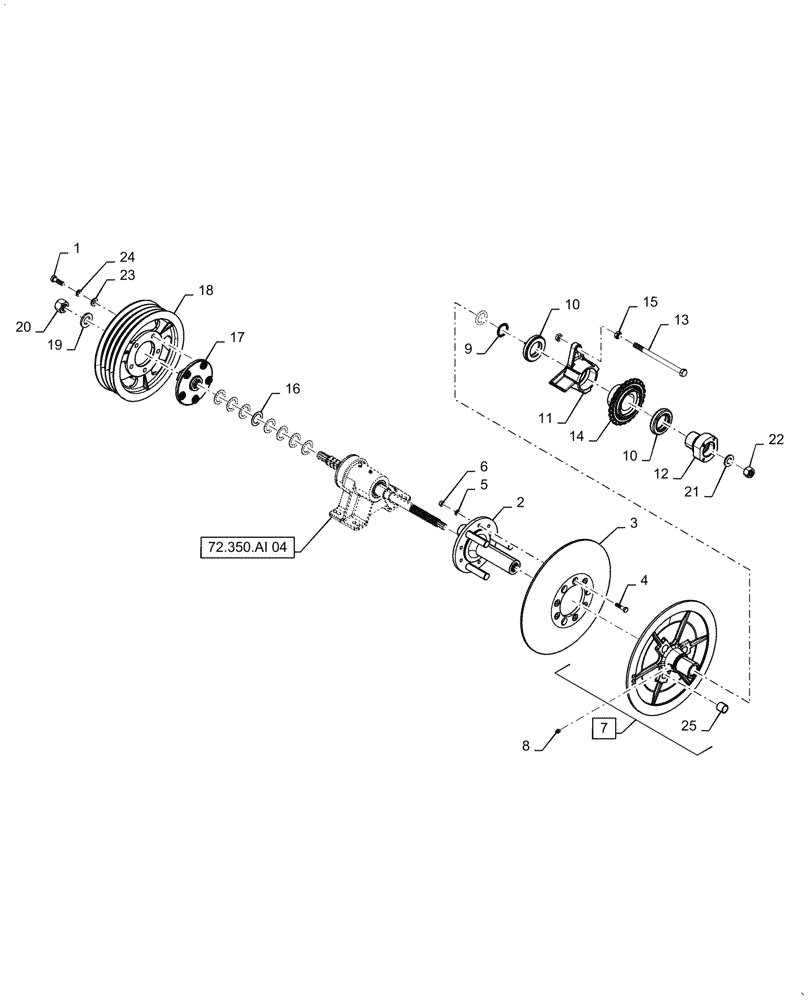

Запчасти Case IH 6088 (72.350.AI[02]) - DRIVE GEARBOX, BEATER (72) - SEPARATION

1

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

5шт.

2

87609670

HUB

Stationary, Rotor Drive

1шт.

3

87602134

PULLEY

Fixed, Rotor Drive

1шт.

4

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

5

492-21050

LOCK WASHER,1/2"

6шт.

6

429-108

NUT,1/2"-13, G8

6шт.

7

87602135

PULLEY

Variable, Rotor Drive, Incl 25

1шт.

8

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

2шт.

10

87307506

BALL BEARING,82.54mm ID x 132.06mm OD x 22.86mm W

2шт.

11

87602136

PULLEY

Variator, Sleeve, Female

1шт.

12

87602138

FLEXIBLE COUPLING

Universal Joint

1шт.

13

413-12176

BOLT,3/4"-10 x 11", Gr 5

1шт.

14

87307512

SLEEVE

Variator Pulley, Male

1шт.

15

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

16

87313981

WASHER,1.66" ID x 2.5" OD x 0.06" Thk

8шт.

17

87677098

PULLEY ASSY.

Hub, Driven

1шт.

18

87677105

PULLEY ASSY.

Separator Driven, 4HC

1шт.

19

87301675

WASHER,1.38" ID x 2.5" OD x 0.25" Thk

1шт.

20

231-41120

NUT,1 1/4"-7, GB

1шт.

21

496-21106

WASHER,1 1/16" x 2" x .209", HDN

1шт.

22

232-41316

NUT,1"-8, GC

1шт.

23

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

24

87016618

LOCK WASHER,M16

5шт.

25

87307839

BUSHING,30.2mm ID x 35.03mm OD x 31.75mm L

3шт.
