Запчасти Case IH 6088 (66.331.AL[01]) - VAR - 425127, 425438 - SUPPORT, ROTOR, FRONT, SMALL TUBE (66) - THRESHING

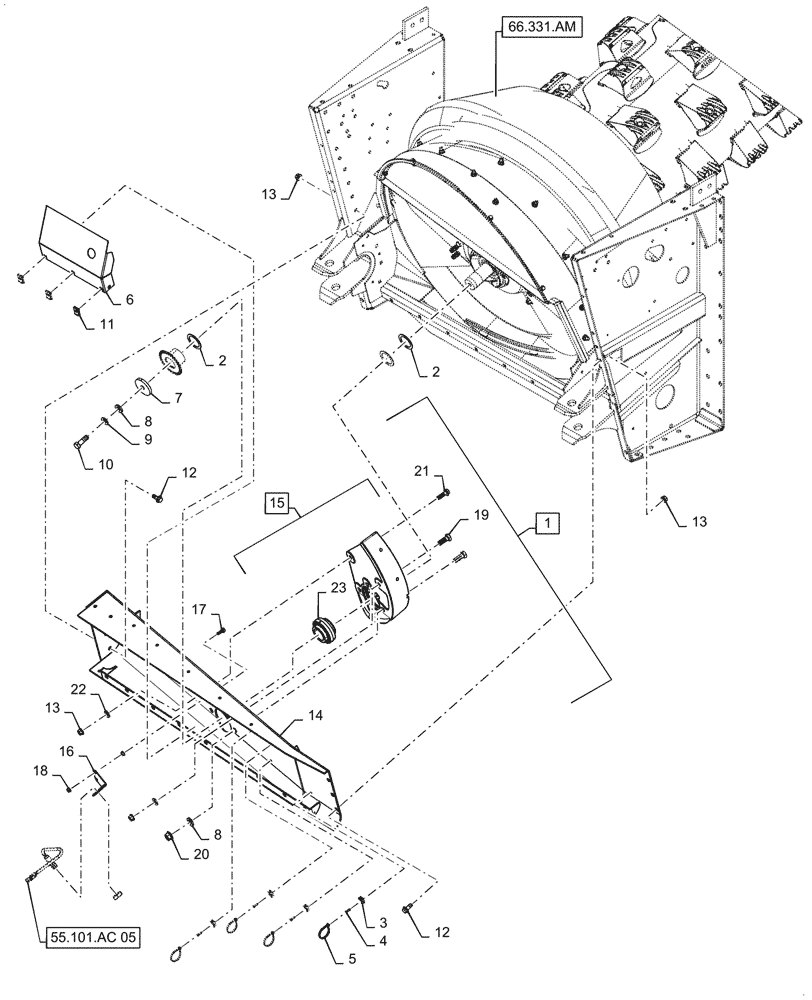

Схема запчастей Case IH 6088 - (66.331.AL[01]) - VAR - 425127, 425438 - SUPPORT, ROTOR, FRONT, SMALL TUBE (66) - THRESHING
66.331.am
9
16
20
8
14
2
3
22
11
23
6
8
10
7
13
12
19
18
13
12
2
21
13
4
5
15
1
17
55.101.ac 05

Артикул

Название

Примечание

Количество

1

47870346

SUPPORT

Rotor Front Channel, Incl 8, 13 - 23

1шт.

2

87613205

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

1шт.

3

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

4шт.

4

445395

RIVET,Pop, 4.8mm OD x 18.1mm L

4шт.

5

86566989

CABLE TIE,208mm L

4шт.

6

87681895

BRACKET, SUPPORTING

Shield, Rotor RPM Sensor

1шт.

7

86998693

WASHER,17.8mm ID x 76.2mm OD x 9.5mm Thk

1шт.

8

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

9

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

10

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.

11

86625071

SPRING NUT,M10 x 1.5

3шт.

12

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

7шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

9шт.

14

47836802

SUPPORT

Rotor Front Bearing, Extended Wear

1шт.

15

87680175

BEARING ASSY

Housing, Incl 23

1шт.

16

87681790

BRACKET, SUPPORTING

Rotor Speed Sensor

1шт.

17

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

18

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

19

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

3шт.

20

86512498

FLANGE NUT,M16 x 2, Cl 10

3шт.

21

86705431

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

22

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

23

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

1шт.

Выбрано товаров: 23
