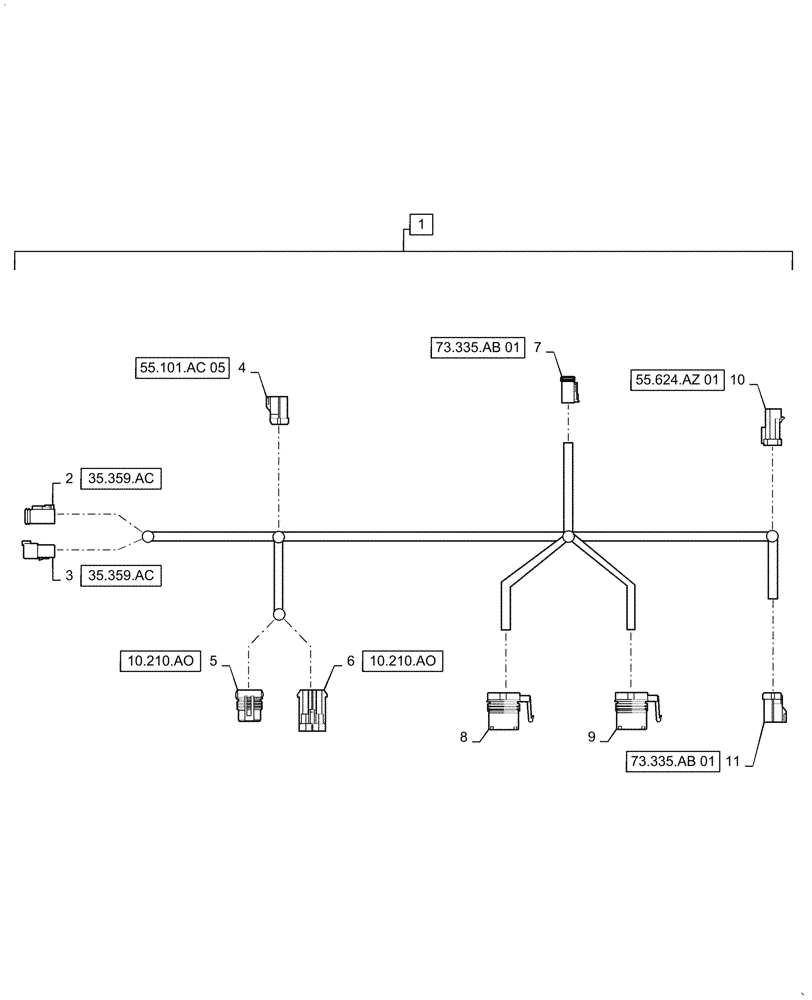

Запчасти Case IH 6088 (55.624.AZ[02]) - WIRE HARNESS, CHAFF SPREADER (55) - ELECTRICAL SYSTEMS

1

87712379

WIRE HARNESS

Chaff Spreader, Incl 2 - 11, Serial Range: -Y9G001507

1шт.

1

84191951

WIRE HARNESS

Chaff Spreader, Incl 2 - 11, Start Serial: Y9G001507

1шт.

2

87708147

ELEC CONNECTOR,Female, 4 Cavities

Unloader/Separator Valve, X-249

1шт.

3

87694110

HYD CONNECTOR

Unloader/Separator Valve, X-249

1шт.

4

87382918

WIRE CONNECTOR,Female, 6 Cavities

LH Side Harness, X-123

1шт.

5

87679438

WIRE CONNECTOR,Female

Fuel Pump, X-240

1шт.

6

87686736

ELEC CONNECTOR

Fuel Pump, X-240

1шт.

7

87695909

ELEC CONNECTOR,Female, 2 Pole

Spreader Solenoid, X-294

1шт.

8

84147481

Relay B, X-296

ELEC CONNECTOR

1шт.

9

84147481

Relay A, X-400

ELEC CONNECTOR

1шт.

10

87382913

ELEC CONNECTOR

Speed Sensor, X-295

1шт.

11

87382906

WIRE CONNECTOR,Female, 2 Cavities

Position Sensor, X-293

1шт.
