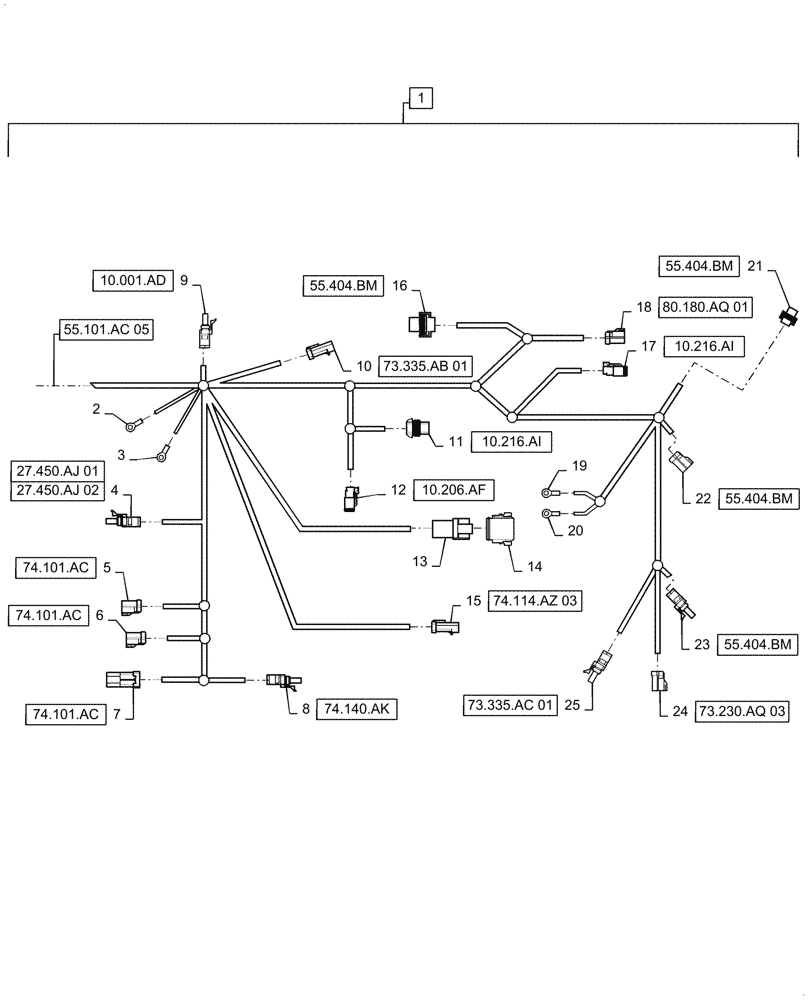

Запчасти Case IH 6088 (55.101.AC[06]) - WIRE HARNESS, LEFT MAIN, CONTINUED (55) - ELECTRICAL SYSTEMS

1

87676242

WIRE HARNESS

Left Main, Incl 2 - 25

1шт.

2

84482658

TERMINAL

Chassis Ground

1шт.

3

84482658

TERMINAL

Chassis Ground

1шт.

4

87692855

CONTACT HOUSING,Male, 2 Cavities

4WD Axle, X-233

1шт.

5

87382918

WIRE CONNECTOR,Female, 6 Cavities

Shoe Sieve Harness, X-055

1шт.

5

84395358

TERMINAL

Shoe Sieve Harness, X-055

5шт.

5

84279937

PLUG,Apex, 2.80mm

Shoe Sieve Harness, X-055

1шт.

6

87382906

WIRE CONNECTOR,Female, 2 Cavities

Shoe Speed, X-235

1шт.

6

84395358

TERMINAL

Shoe Speed, X-235

2шт.

7

87686736

ELEC CONNECTOR

Clean Ground, X-232

1шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Tailings Speed, X-236

1шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

Engine Speed, X-242

1шт.

10

87382919

WIRE CONNECTOR,Male, 6 Cavities

Chaff Spreader, X-123

1шт.

10

84395362

TERMINAL,Apex, 2.80mm, Male, 0.50 - 0.80mm2 Wire Range

Chaff Spreader, X-123

6шт.

11

87679438

WIRE CONNECTOR,Female

Fuel Pump, X-240

1шт.

11

84806458

COLLAR

Lock, Fuel Pump, X-240

1шт.

12

87695909

ELEC CONNECTOR,Female, 2 Pole

Water In Fuel, X-243

1шт.

13

84147382

ELEC CONNECTOR

Trailer Connector, X-244

1шт.

14

87700325

ELEC CONNECTOR,Female, 8 Cavities

Dust Cap, X-244A

1шт.

15

87382927

ELEC CONNECTOR,Male, 14 Cavities

Upper Sieve, X-231

1шт.

15

84395363

TERMINAL

Upper Sieve, X-231

14шт.

16

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

Engine Deck Light, X-256

1шт.

17

87695909

ELEC CONNECTOR,Female, 2 Pole

Fuel Level Sender, X-245

1шт.

18

87382906

WIRE CONNECTOR,Female, 2 Cavities

Unloader In Limit Switch, X-186

1шт.

18

84395356

TERMINAL,Female, 2.8mm, 18-20

Unloader In Limit Switch, X-186

2шт.

19

84482658

TERMINAL

Ground

1шт.

20

84482658

TERMINAL

Backup Alarm

1шт.

21

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

LH Rear Worklight, X-246

1шт.

22

87382918

WIRE CONNECTOR,Female, 6 Cavities

LH Rear Safety Lights, X-248

1шт.

22

84395358

TERMINAL

LH Rear Safety Lights, X-248

6шт.

23

245482C1

ELEC CONNECTOR,2 Pin

Engine Compartment Light, X-218

1шт.

24

87382910

WIRE CONNECTOR,Female, 3 Cavities

Ladder Position Sensor, X-247

1шт.

24

84395356

TERMINAL,Female, 2.8mm, 18-20

Ladder Position Sensor, X-247

3шт.

25

87692855

CONTACT HOUSING,Male, 2 Cavities

Straw Spreader Speed, X-241

1шт.
