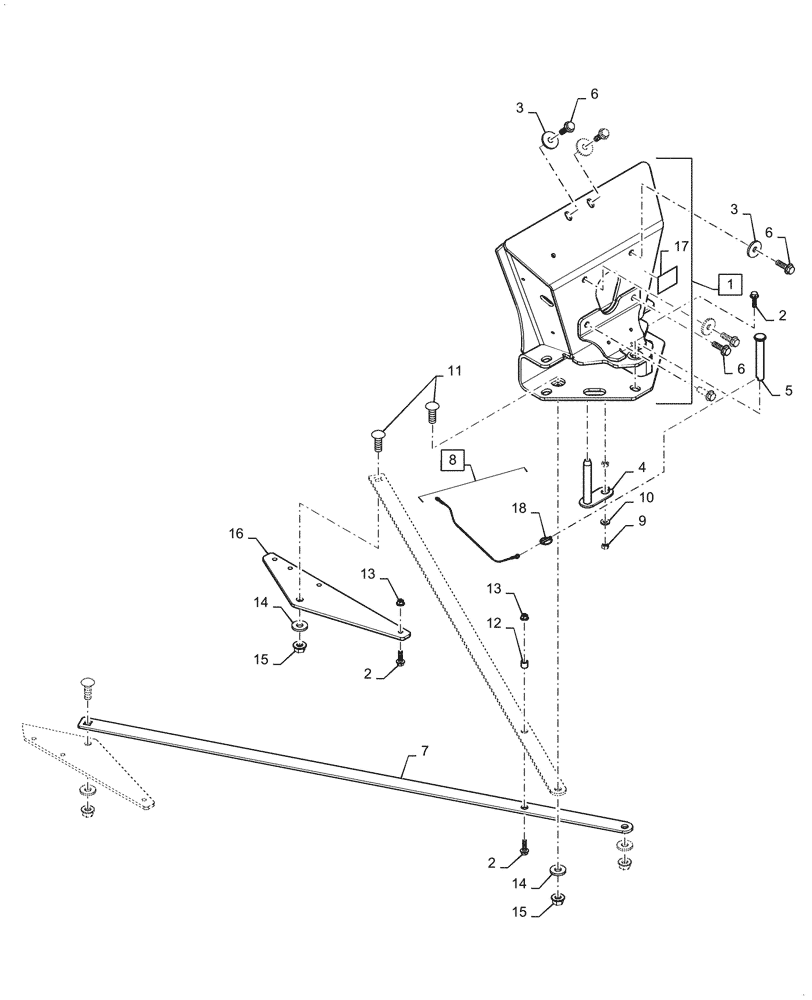

Запчасти Case IH 6088 (37.100.AF) - HITCH BASE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84499134

HITCH

Support W/ Decal, Incl 17

1шт.

2

87695413

BOLT,M12 x 51.8mm, Cl 10.9

8шт.

3

337522

WASHER,17.5mm ID x 56mm OD x 5mm Thk

4шт.

4

84298523

CLEVIS PIN

Hitch

1шт.

5

84294531

CLEVIS PIN

24mm x 160mm

1шт.

6

87698849

BOLT,M16 x 50mm, Cl 10.9

6шт.

7

84426478

STRIP

Trailer Hitch

2шт.

8

87668116

LOCK PIN,6mm OD

W/ Tether, Incl 18

1шт.

9

9706685

NUT,M12 x 1.75, Cl 8

2шт.

10

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

11

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

4шт.

12

84428369

SPACER,13mm ID x 20.6mm OD x 18.5mm L

1шт.

13

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

14

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

4шт.

15

86512499

FLANGE NUT,M20 x 2.5, Cl 10

4шт.

16

84332167

BRACKET

Trailer Hitch Plate

2шт.

17

84446050

DECAL

Weight Capacity

1шт.

18

82013836

ROLL PIN,6mm OD

Lynch

1шт.
