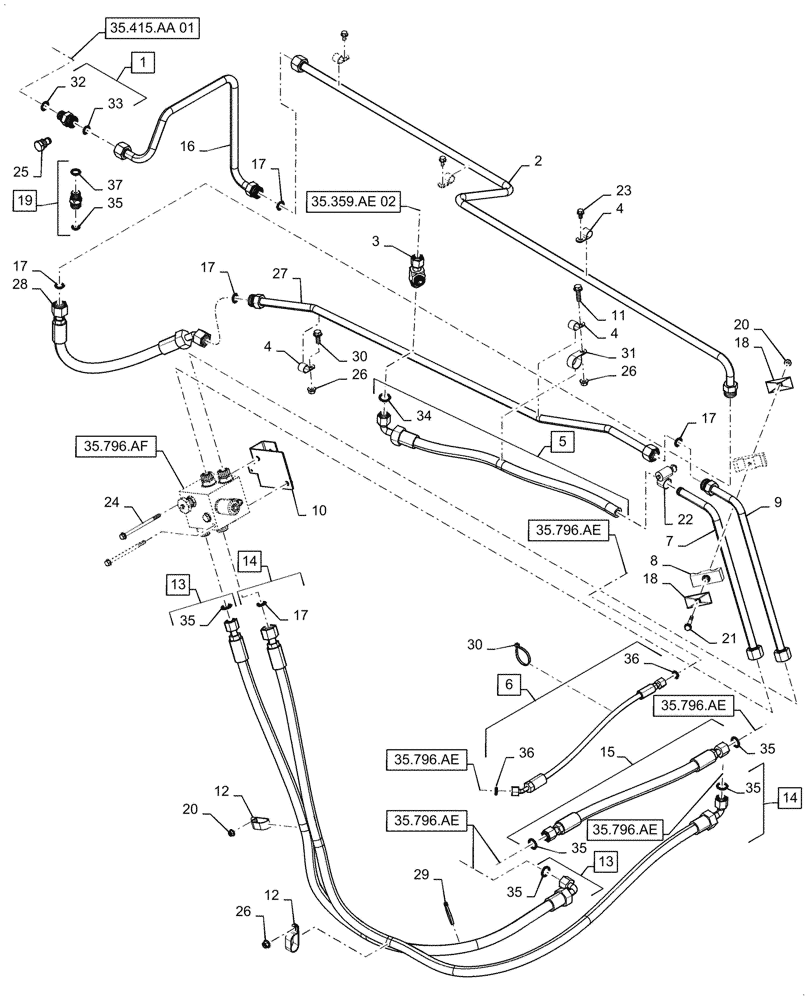

Запчасти Case IH 6088 (35.796.AC[01]) - CHAFF SPREADER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

Incl 32, 33

1шт.

2

87725086

TUBE,.75" OD

Spreader Supply

1шт.

3

86624133

TEE,1"-14 ORFS x 1"-14 Sw Run

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

5шт.

5

84130571

HOSE ASSY.

Spreader Return, Incl 34

1шт.

6

84130573

HOSE ASSY.

Motor Drain, Incl 36

1шт.

7

84130572

TUBE ASSY.,0.75" OD, 446.83, 115.9 mm Length

Spreader Return

1шт.

8

87000151

CLAMP

Hydraulic Tube

1шт.

9

87631071

HYD TUBE,19.05 mm OD x 471.83 mm L

Spreader Supply

1шт.

10

84197992

BRACKET

Manifold

1шт.

11

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

1шт.

12

470375C1

CLAMP,1", Insul, 3/8" Bolt

2шт.

13

87631078

HOSE ASSY.

Spreader Supply, Incl 35

1шт.

14

87709638

HOSE ASSY.

Spreader Return, Incl 17, 35

1шт.

15

87709636

HOSE ASSY.

Motor Supply, Incl 35

1шт.

16

87702178

TUBE,0.75" OD

Spreader Supply

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

5шт.

18

87000230

PLATE

Hose Clamp

2шт.

19

87662315

VALVE, CHECK

In-Line, Incl 35, 37

1шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

21

87656138

BOLT,M8 x 78.1mm, Cl 10.9

1шт.

22

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

23

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

24

87681208

BOLT,Hex, M8 X 130, Class 10.9

2шт.

25

87694720

PLUG

Cavity

1шт.

26

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

27

87725085

HYD TUBE,19.05 mm OD x 1445.12 mm L

1шт.

28

87725087

HOSE ASSY.

Spreader Supply

1шт.

29

86566989

CABLE TIE,208mm L

2шт.

30

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

31

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

33

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

6шт.

36

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
