Запчасти Case IH 6088 (35.518.AC[02]) - FEEDER HYDRAULIC SYSTEM, LATERAL TILT (35) - HYDRAULIC SYSTEMS

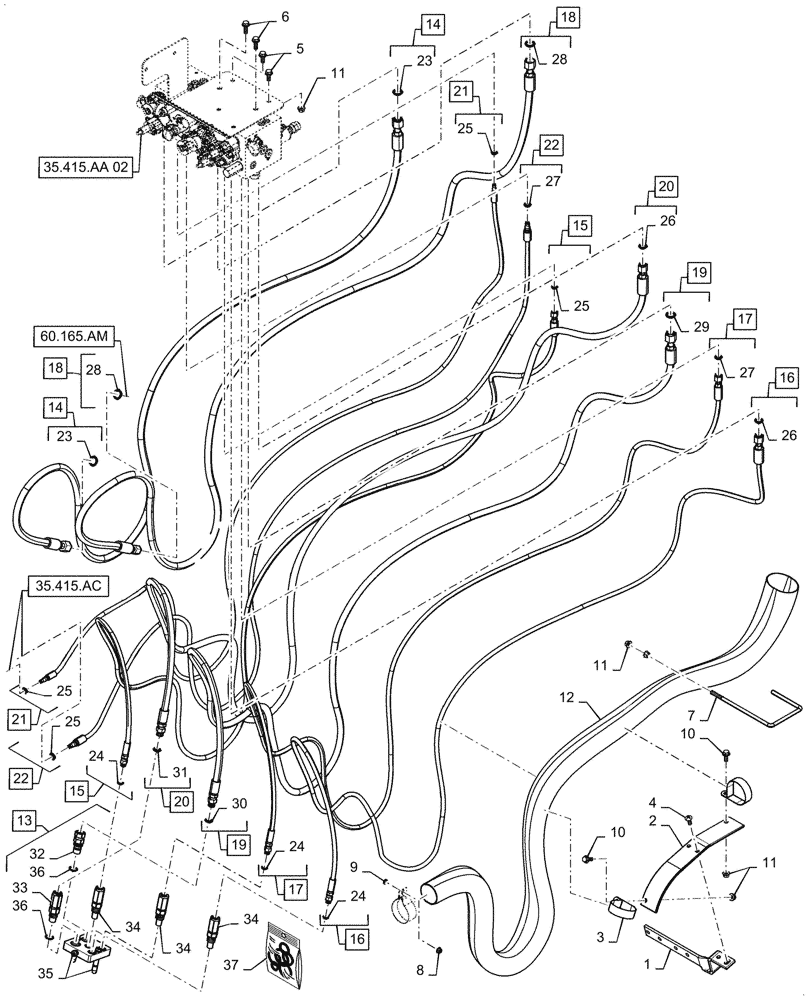

Схема запчастей Case IH 6088 - (35.518.AC[02]) - FEEDER HYDRAULIC SYSTEM, LATERAL TILT (35) - HYDRAULIC SYSTEMS
35.415.ac
25
25
25
7
27
22
35
12
17
20
19
20
31
14
16
19
34
16
18
23
22
32
11
13
14
23
15
29
21
10
3
8
9
26
1
24
27
15
34
33
36
28
26
28
30
24
34
25
11
2
36
5
18
11
37
17
10
21
6
35.415.aa 02
60.165.am
24
4

Артикул

Название

Примечание

Количество

1

87605327

BRACKET

Feeder Hose Support

1шт.

2

294511A1

SUPPORT

Feeder Hose

1шт.

3

87301362

CLAMP,76.2mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

2шт.

5

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

6

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

2шт.

7

87756997

GUIDE

Hose Bundle Bracket

1шт.

8

86619801

FLANGE NUT,M8 x 1.25, Cl 8

1шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

86705429

BOLT,M10 x 34.2mm OAL, Full Thd, Cl 10.9

2шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

12

87318604

TUBE

Hose Bundle Sleeve

1шт.

13

87721868

QUICK MALE COUPLING

Incl 32 - 37

1шт.

14

84126928

HOSE ASSY.

Feeder Reverser Return, Incl 23

1шт.

15

87755035

HOSE ASSY.

Reel Lift, Incl 24, 25

1шт.

16

87755036

HOSE ASSY.

Reel Fore, Incl 24, 26

1шт.

17

87755037

HOSE ASSY.

Reel Aft, Incl 24, 27

1шт.

18

87701305

HOSE ASSY.

Reverser Supply, Incl 28, 29

1шт.

19

87557416

HOSE ASSY.

Reel Return, Incl 29, 30

1шт.

20

87755034

HOSE ASSY.

Reel Drive Supply, Incl 26, 31

1шт.

21

84128544

HOSE ASSY.

Field Tracker Rod, Incl 25

1шт.

22

84128543

HOSE ASSY.

Field Tracker Piston, Incl 27

1шт.

23

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

24

89617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

29

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

32

84435502

HYD CONNECTOR

Quick Coupling

1шт.

33

84435503

HYD CONNECTOR

Quick Coupling

1шт.

34

87691267

COUPLING

Quick

3шт.

35

86623900

REPAIR KIT

Rebuild

1шт.

36

86623898

SEAL,1mm OD x 3.2mm Thk

2шт.

37

86623899

SEAL KIT,13mm OD x 2.5mm Thk

3шт.

Выбрано товаров: 37
