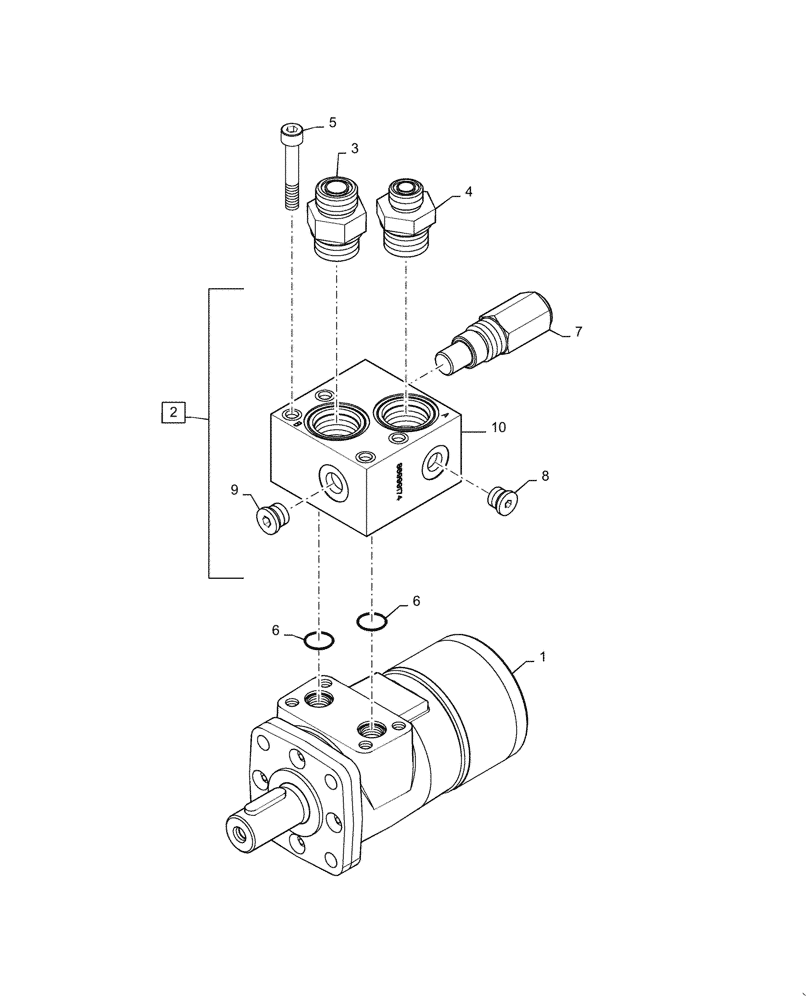

Запчасти Case IH 6088 (35.500.AH) - AIR INTAKE SCREEN MOTOR (35) - HYDRAULIC SYSTEMS

1

86995688

MOTOR, HYDRAULIC,293CC

Stationary Air Screen Drive

1шт.

2

86999174

VALVE PRESSURE RELIE

Hydraulic Bypass, Incl 7 - 10

1шт.

3

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

1шт.

4

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

5

73170457

HEX SOC SCREW,M8 x 50mm, Cl 8.8

4шт.

6

272344

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

7

86987869

VALVE PRESSURE RELIE

280 psi, Preset

1шт.

8

218-5208

PLUG,Hex, 1/2"-20 ORB

1шт.

9

218-5209

PLUG,Hex, 9/16"-18 ORB

1шт.

10

NSS

NOT SOLD SEPARAT

Bypass Valve Body, Incl In 2

1шт.
