Запчасти Case IH 6088 (35.440.AB) - UNLOADER SWING CYLINDER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

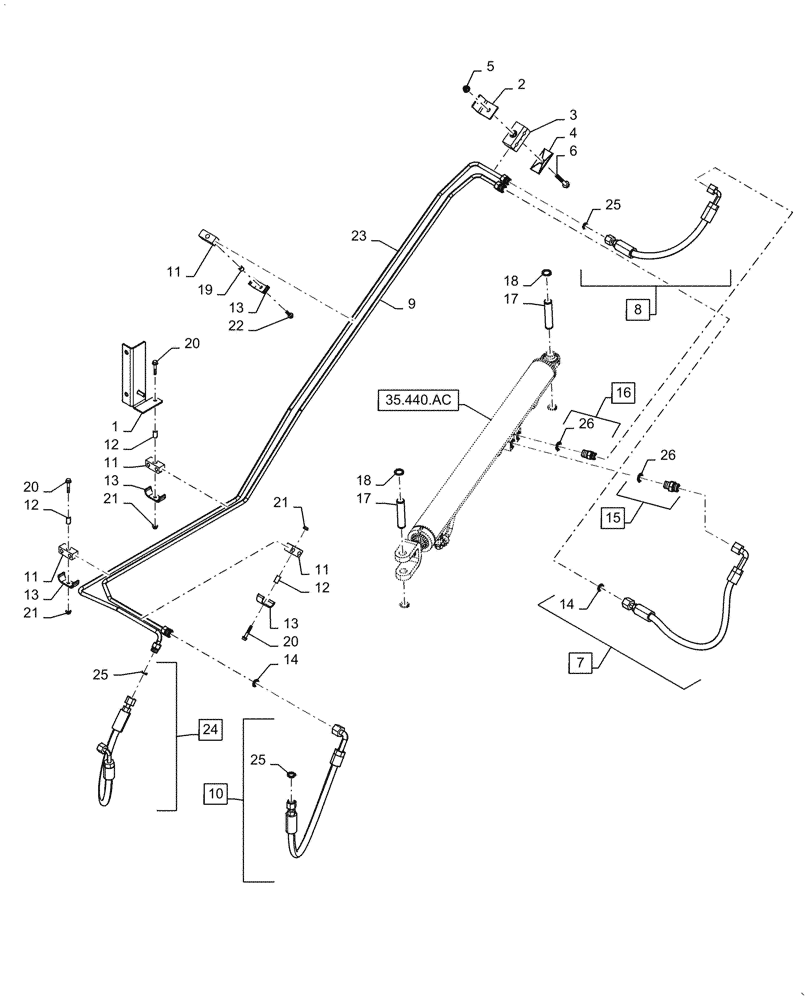

Схема запчастей Case IH 6088 - (35.440.AB) - UNLOADER SWING CYLINDER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS
35.440.ac
3
21
13
25
17
18
16
21
11
6
7
13
25
18
11
11
12
9
4
20
20
26
24
12
21
15
1
17
22
14
13
5
13
12
20
25
11
19
10
23
2
14
26
8

Артикул

Название

Примечание

Количество

1

84129177

BRACKET

Unloader Tube

1шт.

2

87560423

BRACKET

Clamp

1шт.

3

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

4

87000230

PLATE

Hose Clamp

1шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

6

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

7

87536687

HOSE ASSY.

Unload Cylinder Rod, Incl 14

1шт.

8

87536688

HOSE ASSY.

Unload Cylinder Piston, Incl 25

1шт.

9

87616985

HYD TUBE,9.53 mm OD x 1472.8 mm L

Unloader Swing Piston

1шт.

10

87756284

HOSE ASSY.

Unloader Swing Rod, Incl 25

1шт.

11

364170A1

INSERT

Tube Clamp

4шт.

12

418785A1

SPACER

Tube Clamp

3шт.

13

418784A1

PLATE

Tube Clamp

4шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

15

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 26

1шт.

16

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

Incl 26

1шт.

17

84254243

PIN,19.05mm OD x 89mm L

2шт.

18

300627

SNAP RING,M19, External

4шт.

19

87560349

SLEEVE

Spacer Tube Clamp

1шт.

20

87698832

FLANGE BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

21

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

22

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

23

87701881

TUBE,9.53 mm OD x 1439 mm L

Unloader Swing Rod

1шт.

24

87756280

HOSE ASSY.

Unloader Swing Piston, Incl 25

1шт.

25

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 26
