Запчасти Case IH 6088 (35.415.AA[04]) - VAR - 425081, 425082, 425083, 425086, 425087, 425088, 425125, 425126 - FEEDER VALVE BODY, LATERAL TILT/HILLCO (35) - HYDRAULIC SYSTEMS

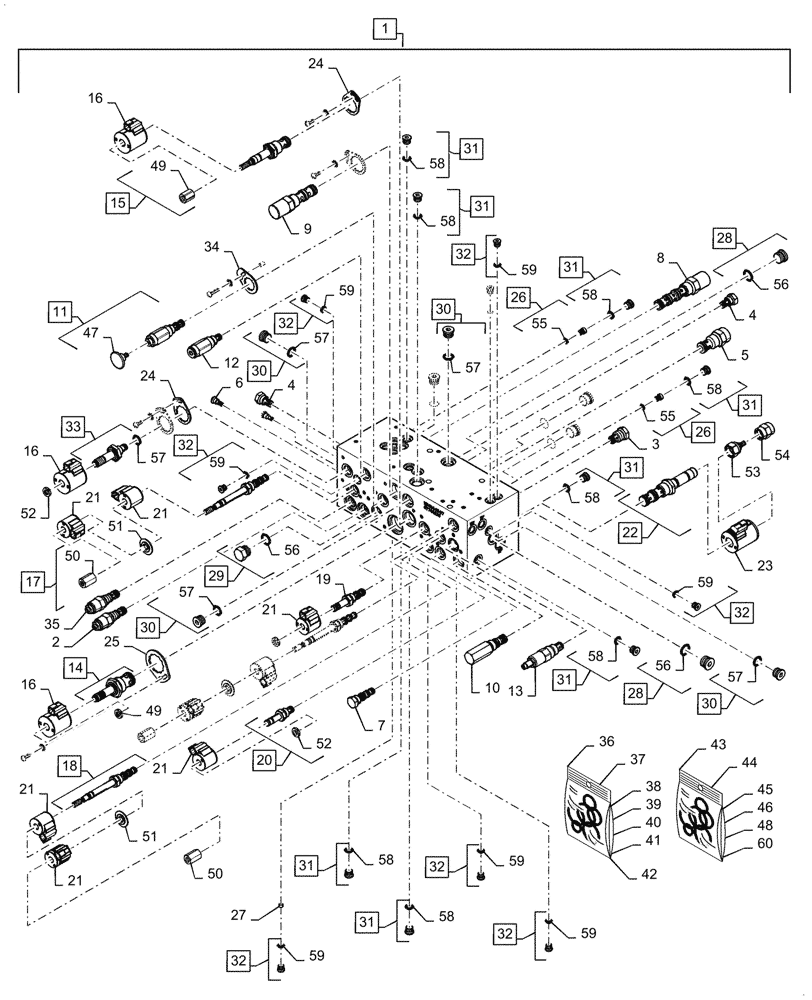

Схема запчастей Case IH 6088 - (35.415.AA[04]) - VAR - 425081, 425082, 425083, 425086, 425087, 425088, 425125, 425126 - FEEDER VALVE BODY, LATERAL TILT/HILLCO (35) - HYDRAULIC SYSTEMS
21
13
8
17
31
52
35
40
34
60
29
15
3
59
59
57
28
45
58
7
31
32
39
59
10
57
57
51
59
16
58
16
31
37
16
21
47
30
24
55
21
1
50
21
14
32
30
59
31
31
58
32
58
49
32
46
59
32
5
32
22
33
12
52
44
41
11
30
58
56
23
43
48
27
42
56
26
32
25
36
9
50
26
31
59
51
24
57
31
18
49
28
30
57
6
58
4
2
58
20
55
31
4
56
54
21
21
53
58
38
19

Артикул

Название

Примечание

Количество

1

87740275

VALVE

Feeder, Incl 2 - 60

1шт.

2

87348545

CARTRIDGE

Counterbalance Valve, Incl 36

1шт.

3

87347961

CARTRIDGE

Check Valve, Incl 37

1шт.

4

120459A1

VALVE,3/4" - 16

Sense Check, Incl 38, 39

2шт.

5

87692273

VALVE

Check Cartridge, Incl 40

1шт.

6

336791A1

VALVE

Check Cartridge, Incl 41

2шт.

7

87692274

VALVE

Dual P. O. Check Cartridge, Incl 42

1шт.

8

87743076

VALVE

Pressure Compensator Cartridge, Incl 43

1шт.

9

87713477

VALVE

Pressure Compensator Cartridge, Incl 44

1шт.

10

87637431

PILOT VALVE

Spool Logic Element, Incl Incl 45

1шт.

11

87706815

VALVE

Feeder Lift Manual Override, Incl 46, 47

1шт.

12

87348337

CARTRIDGE

Relief Valve, Incl 39

1шт.

13

87348335

CARTRIDGE

Relief Valve, Incl 37

1шт.

14

87707808

VALVE

NC Solenoid Cartridge, Incl 48, 49

1шт.

15

87532595

VALVE

Proportional Solenoid, Incl 40, 49

1шт.

16

87582525

COIL

Valve

3шт.

17

87347959

CARTRIDGE

Proportional Solenoid Valve, 4W/3P, Incl 42, 50, 51

1шт.

18

87347965

CARTRIDGE

Solenoid Valve, 4W/3P, Incl 42, 50, 51

2шт.

19

431548A1

VALVE

Solenoid Cartridge, 3W/2P

1шт.

20

87692445

VALVE

NC Solenoid Cartridge, Incl 39, 52

1шт.

21

87582524

COIL

Valve

8шт.

22

87648728

VALVE

Proportional Solenoid Cartridge, Incl 44, 53, 54

1шт.

23

87601433

CARTRIDGE

Coil Valve

1шт.

24

87484025

PACKAGE, REPAIR

Hydraulic Cartridge Lockdown, 1 1/4" Hex

4шт.

25

87582532

SEAL

Hydraulic Cartridge Lockdown, 1 1/2" Hex

1шт.

26

87637430

PLUG

Orifice W/ Screen, Incl 55

2шт.

27

87582543

PLUG

Orifice

1шт.

28

86625138

PLUG,7/18" - 14

Incl 56

4шт.

29

86512512

PLUG,7/8" - 14 ORB

Incl 56

1шт.

30

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 57

6шт.

31

9625178

PLUG,9/16" - 18 ORB

Incl 58

13шт.

32

278548

PLUG,Hex, 7/16"-20 ORB

Incl 59

8шт.

33

87637432

VALVE

NC Solenoid, 2W/2P, Incl 57

1шт.

34

84158912

PACKAGE, REPAIR

Hydraulic Cartridge Lockdown, 1" Hex

1шт.

35

87532596

CARTRIDGE

Counterbalance Valve, Incl 36

1шт.

36

87348634

SEAL KIT

Valve

2шт.

37

1542830C2

SEAL KIT

Valve

2шт.

38

87269971

SEAL KIT

Valve

2шт.

39

1542831C1

SEAL KIT

Valve

4шт.

40

431868A1

SEAL KIT

Valve

2шт.

41

336792A1

SET OF PARTS

Seal Kit, Valve

2шт.

42

86556830

SEAL KIT

Valve

4шт.

43

388744A1

SEAL KIT

Valve

1шт.

44

381050A1

KIT

Seal, Valve

2шт.

45

87606634

Seal Kit, Valve

1шт.

46

295302A1

SEAL KIT

Valve

1шт.

47

87708356

KNOB

Black, Manual Override

1шт.

48

87364588

SEAL KIT

Valve

1шт.

49

87641221

NUT

Coil

2шт.

50

87348587

Coil Nut

3шт.

51

87348582

Coil

SPACER

3шт.

52

87348571

NUT,Hex, 1/2" - 20, RH

Coil

2шт.

53

87608566

Coil Nut

1шт.

54

87608567

Cap, Override Guard

1шт.

55

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

56

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

57

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

58

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

13шт.

59

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

8шт.

60

329413A1

SEAL KIT

Cavity Plug

1шт.

Выбрано товаров: 60
