Запчасти Case IH 6088 (35.415.AA[03]) - VAR - 425079, 425080, 425084, 425085 - FEEDER VALVE BODY, STANDARD (35) - HYDRAULIC SYSTEMS

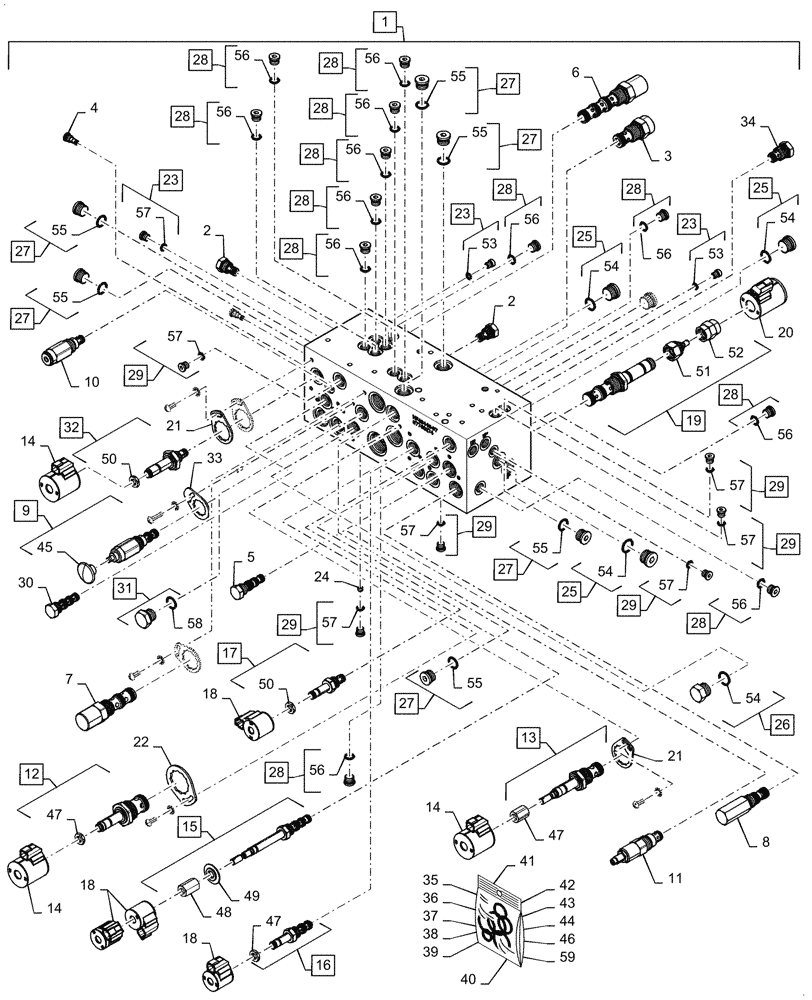

Схема запчастей Case IH 6088 - (35.415.AA[03]) - VAR - 425079, 425080, 425084, 425085 - FEEDER VALVE BODY, STANDARD (35) - HYDRAULIC SYSTEMS
28
29
30
57
27
24
29
53
23
18
12
28
36
31
25
47
58
8
29
50
57
10
37
55
56
57
39
18
48
50
2
56
56
54
55
19
22
27
28
16
6
47
46
41
56
17
25
27
47
56
54
28
14
40
51
27
27
21
3
57
56
55
57
44
28
35
29
49
55
28
15
1
52
27
53
29
57
38
32
57
28
43
21
54
13
28
56
14
29
42
11
26
28
4
2
14
54
7
56
59
5
55
56
56
28
28
23
18
20
25
9
33
55
45
23
56
56
34
28

Артикул

Название

Примечание

Количество

1

87740274

VALVE

Body, Feeder, Standard

1шт.

2

120459A1

VALVE,3/4" - 16

Sense Check, Incl 36, 37

2шт.

3

87692273

VALVE

Check, Incl 38

1шт.

4

336791A1

VALVE

Check , Incl 39

2шт.

5

87692274

VALVE

Dual P.O. Check, Incl 40

1шт.

6

87743076

VALVE

Pressure Compensator, Incl 41

1шт.

7

87713477

VALVE

Pressure Compensator, Incl 42

1шт.

8

87637431

PILOT VALVE

Spool Logic Element, Incl 43

1шт.

9

87706815

VALVE

Feeder Lift Manual Override, Incl 44, 45

1шт.

10

87348337

CARTRIDGE

Relief, Incl 37

1шт.

11

87348335

CARTRIDGE

Relief, Incl 35

1шт.

12

87707808

VALVE

Solenoid Cartridge, Incl 46, 47

1шт.

13

87532595

VALVE

Proportional Valve, Incl 38, 47

1шт.

14

87582525

COIL

Valve

3шт.

15

87347965

CARTRIDGE

Solenoid, Incl 40, 48, 49

2шт.

16

431548A1

VALVE

Solenoid Cartridge, Incl 47

1шт.

17

87692445

VALVE

Solenoid Cartridge, Incl 37, 50

1шт.

18

87582524

COIL

Valve

6шт.

19

87648728

VALVE

Proportional Solenoid Cartridge, Incl 42, 51, 52

1шт.

20

87601433

CARTRIDGE

Coil Valve

1шт.

21

87484025

PACKAGE, REPAIR

Hydraulic Cartridge Lockdown, 1 1/4" Hex

4шт.

22

87582532

SEAL

Hydraulic Cartridge Lockdown, 1 1/2" Hex

1шт.

23

87637430

PLUG

Orifice, Incl 53

2шт.

24

87582543

PLUG

Orifice

1шт.

25

86625138

PLUG,7/18" - 14

Incl 54

4шт.

26

86512512

PLUG,7/8" - 14 ORB

Incl 54

1шт.

27

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Incl 55

6шт.

28

9625178

PLUG,9/16" - 18 ORB

Incl 55

13шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

Incl 57

8шт.

30

87604610

FITTING

4 Way Cavity, Incl 40

1шт.

31

87013337

PLUG

M20, Incl 58

2шт.

32

87637432

VALVE

Solenoid, Incl 50, 59

1шт.

33

84158912

PACKAGE, REPAIR

Hydraulic Cartridge Lockdown, 1" Hex

1шт.

34

87347961

CARTRIDGE

Check Valve, Incl 35

1шт.

35

1542830C2

SEAL KIT

Valve

2шт.

36

87269971

SEAL KIT

Valve

2шт.

37

1542831C1

SEAL KIT

Valve

4шт.

38

431868A1

SEAL KIT

Valve

2шт.

39

336792A1

SET OF PARTS

Valve Seal Kit

2шт.

40

86556830

SEAL KIT

Valve

4шт.

41

388744A1

SEAL KIT

Valve

1шт.

42

381050A1

KIT

Seal

2шт.

43

87606634

Seal Kit, Valve

1шт.

44

295302A1

SEAL KIT

Valve

1шт.

45

87708356

KNOB

Manual Override

1шт.

46

87364588

SEAL KIT

Valve

1шт.

47

87641221

NUT

Coil

2шт.

48

87348587

Nut, Coil

2шт.

49

87348582

SPACER

2шт.

50

87348571

NUT,Hex, 1/2" - 20, RH

Coil

2шт.

51

87608566

Nut, Coil

1шт.

52

87608567

Cap, Override Guard

1шт.

53

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

2шт.

54

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5шт.

55

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

6шт.

56

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

13шт.

57

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

8шт.

58

84432615

O-RING

O-Ring

2шт.

59

329413A1

SEAL KIT

Valve

1шт.

Выбрано товаров: 59
