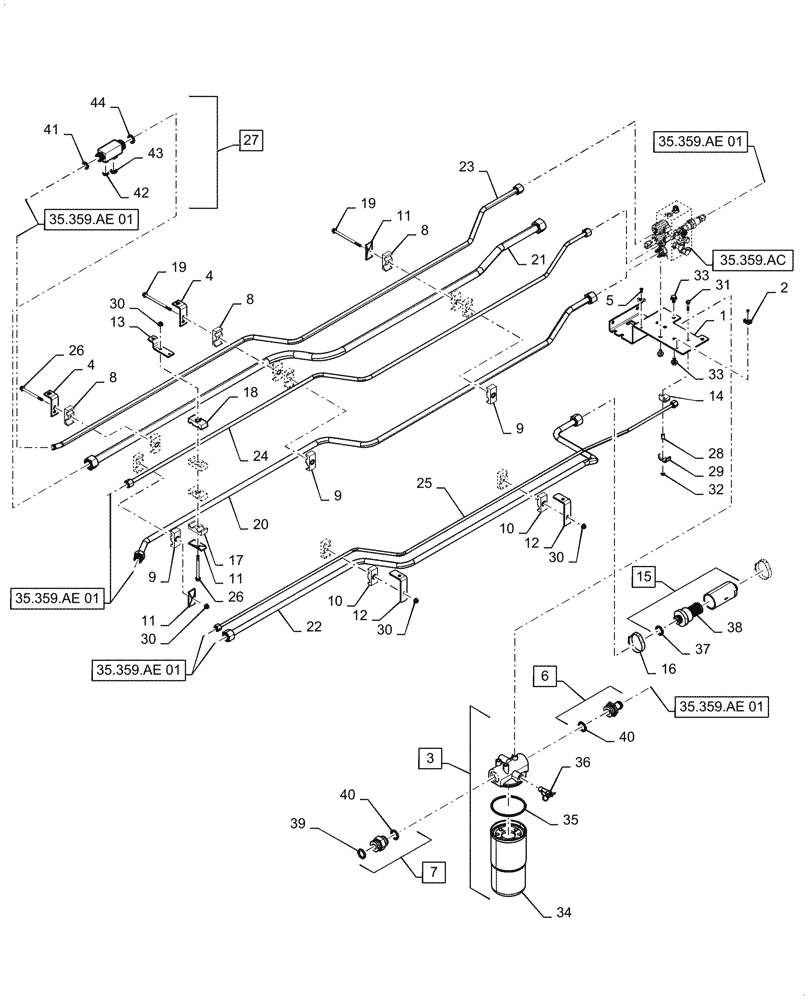

Запчасти Case IH 6088 (35.359.AE[02]) - HYDRAULIC TUBE ASSY (35) - HYDRAULIC SYSTEMS

1

87683601

BRACKET

Return Filter

1шт.

2

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

2шт.

3

87689482

FILTER ASSY

Return W/ Drain Valve, Incl 34 - 36

1шт.

4

87549264

SUPPORT TUBE,112.4 mm L

Bundle Center

2шт.

5

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

6

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Incl 40

1шт.

7

9847247

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

Incl 39, 40

1шт.

8

87000138

CLAMP

Hydraulic Tube

3шт.

9

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

3шт.

10

87000154

CLAMP

Hydraulic Tube

2шт.

11

87000230

PLATE

Hose Clamp

3шт.

12

84126046

BRACKET,100, 60 mm Length

Turbe Support

2шт.

13

87751622

BRACKET

Tube Support

1шт.

14

449127A1

CLAMP

Tube Single

1шт.

15

86525899

HYDRAULIC OIL FILTER

Incl 37, 38

1шт.

16

82012728

COLLAR,50mm - 65mm, Worm Gear

2шт.

17

87000140

CLAMP,Tube, 19.05mm

Hydraulic Tube

1шт.

18

87105732

CLAMP

Hydraulic Tube

1шт.

19

87681208

BOLT,Hex, M8 X 130, Class 10.9

2шт.

20

87544320

HYD TUBE,0.75" OD x 2127.25 mm L

Reel Drive Supply

1шт.

21

87544319

HYD TUBE,22.098 mm ID x 1 mm OD x 2078.5, 113.9 mm L

System Return

1шт.

22

87544318

HYD TUBE,0.75" OD x 1799.31 mm L

Header Lift Supply

1шт.

23

87544317

HYD TUBE,0.625" OD x 2162.13 mm L

Low Pressure Return

1шт.

24

87544314

HYD TUBE,0.5" OD x 2094.55 mm L

Regulated Pressure

1шт.

25

87544313

HYD TUBE,9.53 mm OD x 2046 mm L

Pump Signal

1шт.

26

87301686

BOLT,M8 x 108.1mm, Cl 10.9

2шт.

27

87350080

HYD CONNECTOR

Manifold, Incl 41 - 44

1шт.

28

418785A1

SPACER

Tube Clamp

1шт.

29

449128A1

CLAMP,20mm ID

Plate

1шт.

30

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

31

857-6035

BOLT

Flange

1шт.

32

86050300

FLANGE NUT,M6 x 1.0, Cl 10

1шт.

33

87021006

BOLT,M10 x 26.4mm, Cl 10.9

5шт.

34

A177605

HYDRAULIC OIL FILTER

Spin On

1шт.

35

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

36

301803R1

SHUT-OFF VALVE

PTO Drain

1шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

38

86596434

HYDRAULIC OIL FILTER

Element

1шт.

39

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

40

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

41

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

44

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
