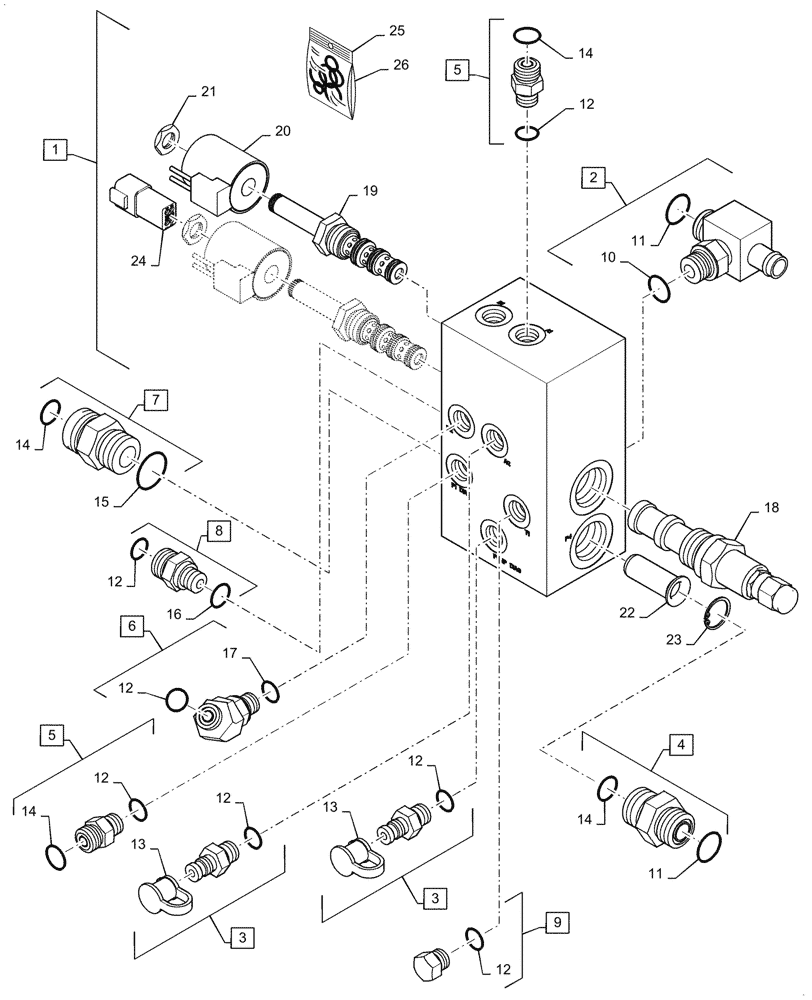

Запчасти Case IH 6088 (35.359.AC) - SEPARATOR / UNLOADING / REGULATOR VALVE (35) - HYDRAULIC SYSTEMS

1

84129051

VALVE

Separator / Unloader / Regulator, Incl 18 - 24

1шт.

2

141657A1

TEE

Hydraulic, Incl 10, 11

1шт.

3

1541849C1

COUPLING

Diagnostic, Incl 12, 13

2шт.

4

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

Incl 11, 14

1шт.

5

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 12, 14

2шт.

6

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 12, 17

1шт.

7

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl 14, 15

1шт.

8

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

Incl 12, 16

1шт.

9

218-5155

PLUG,9/16" - 18 ORB

Incl 12

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

13

H434163

DUST CAP

Diagnostic Coupler

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

377593A1

VALVE PRESSURE RELIE

Pressure Reducing

1шт.

19

187849C1

SOLENOID VALVE

12V

2шт.

20

190715A1

SOLENOID

Coil

2шт.

21

195683A1

JAM NUT,1/2"-20

2шт.

22

241892A1

FILTER SCREEN

Replacement

1шт.

23

100-2187

SNAP RING,0.875", Int, #87

1шт.

24

225326C1

ELEC CONNECTOR,Male, 4 Pin

1шт.

25

190709A1

SEAL KIT

Pressure Reducing Valve

1шт.

26

187850C1

SEAL KIT

Solenoid Valve

1шт.
