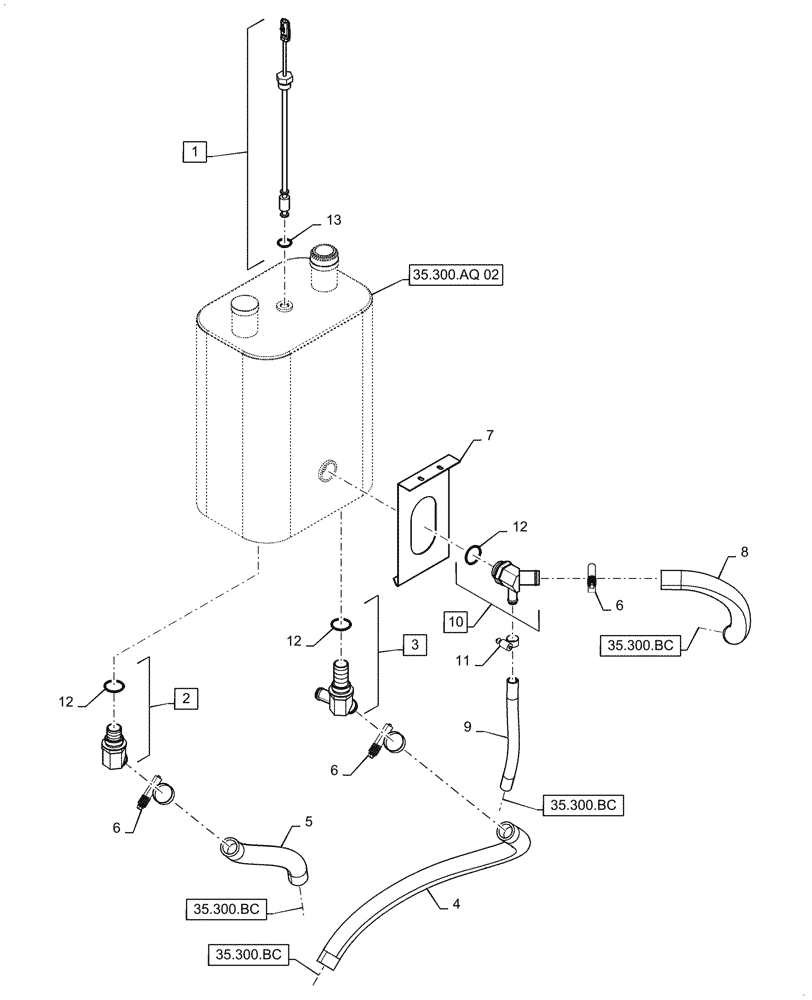

Запчасти Case IH 6088 (35.300.AQ[01]) - RESERVOIR & FITTING (35) - HYDRAULIC SYSTEMS

1

87602126

SWITCH

Hydraulic Level, Incl 13

1шт.

2

182811A1

ELBOW

Pump Suction In Reservoir, Incl 12

1шт.

3

182812A1

TEE

Charge Pump / Cooler Bypass, Incl 12

1шт.

4

1541691C1

FLEXIBLE HOSE

Charge Pump

1шт.

5

87575904

HYDRAULIC HOSE,31.80 mm ID x 360.00 mm

Feeder Lift Pump

1шт.

6

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

7

87634139

BRACKET

Hydraulic Reservoir

1шт.

8

87591052

HOSE

Reel Drive / Rotary Screen Pump

1шт.

9

87591072

HYDRAULIC HOSE,19.10 mm ID x 390.00 mm, SAE 30R2

Drain

1шт.

10

87591032

ORIFICE

Tee, Incl 12

1шт.

11

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

3шт.

13

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
