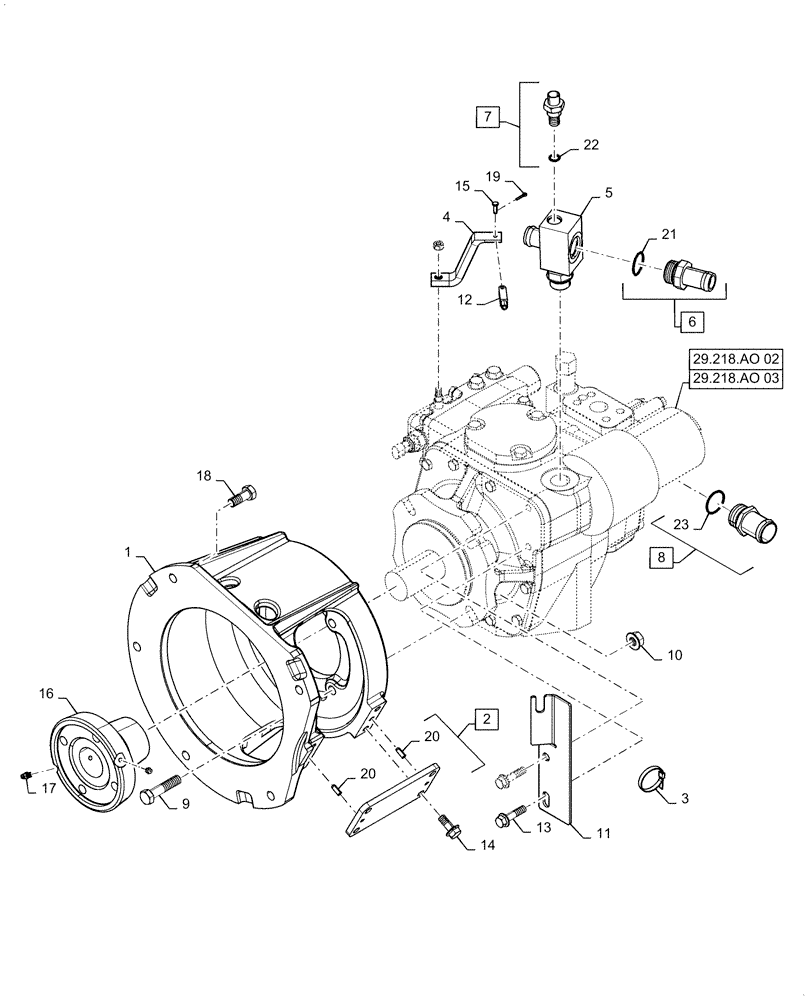

Запчасти Case IH 6088 (29.218.AO[01]) - HYDROSTATIC PUMP MOUNTING, (125 CC/REV) (29) - HYDROSTATIC DRIVE

1

87626988

HOUSING

Hydrostatic Pump

1шт.

2

87584790

SUPPORT ASSY.

Pump Housing, Incl 20

1шт.

3

306132C1

CABLE TIE,14.5" L

1шт.

4

184433A1

LEVER

Hydro Pump Control

1шт.

5

123521A2

TEE

Case Drain

1шт.

6

123487A1

VALVE

Cooler Bypass, Incl 21

1шт.

7

177678A1

TEMPERATURE SWITCH

Temperature, Incl 22

1шт.

8

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Incl 23

1шт.

9

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

10

86544265

FLANGE NUT,Flg, 1/2"-13, G8

4шт.

11

84217675

BRACKET, SUPPORTING

Hydro Control Cable

1шт.

12

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

13

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

14

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

15

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

16

87545084

HOUSING

Hub, Auxiliary Belt Drive, 27T

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

19

280236

COTTER PIN,1/16" x 1/2"

1шт.

20

87635856

PIN,6mm OD x 16mm L

2шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

197909A2

ADAPTER,9/16" - 18 x 3/4"- 16

Netural Start Switch Not Shown Incl 25- 29

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Shown

1шт.

26

84-1103

SET SCREW,Hex Soc, #10-32 x 3/16"

Not Shown

2шт.

27

211-1006

BALL,3/16" Dia

Not Shown

1шт.

28

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

Not Shown

1шт.

29

86991254

SLEEVE,9.397mm ID x 12.7mm OD x 9.397mm L

Not Shown

1шт.

30

197514A2

SWITCH

Netural Start, Not Shown

1шт.
