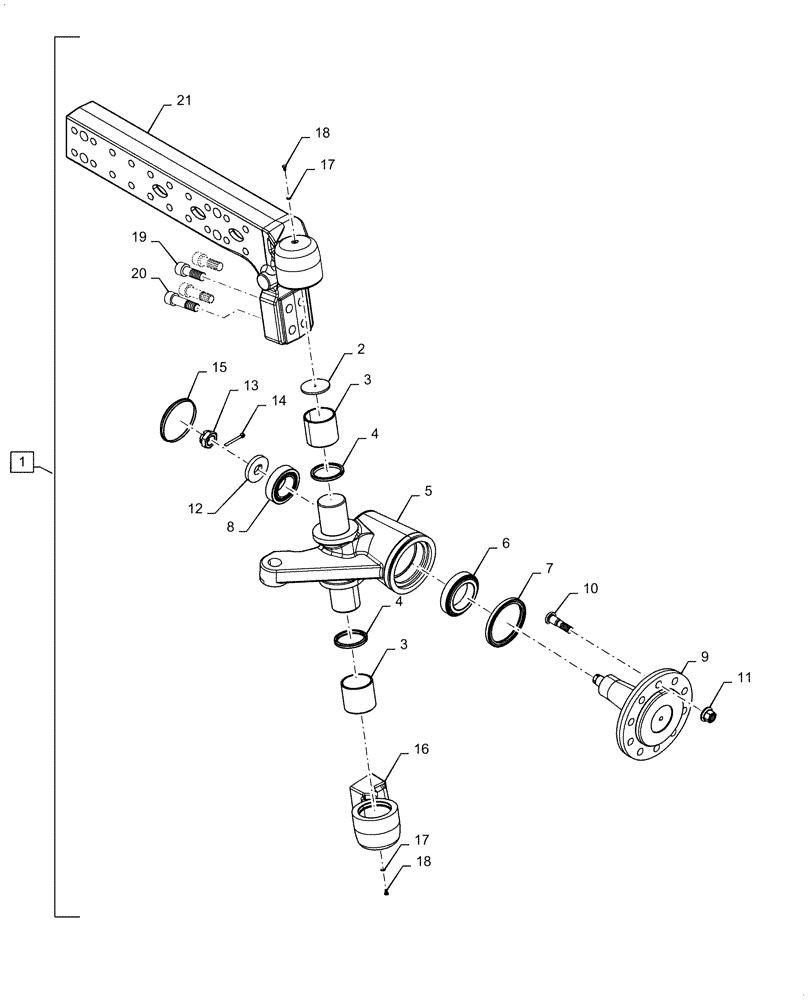

Запчасти Case IH 6088 (27.550.AM[01]) - VAR - 722034 - REAR AXLE EXTENSION, LH (27) - REAR AXLE SYSTEM

1

87711947

REAR AXLE

Extension Assy, LH, VAR - 722034, Incl 2 - 21

1шт.

2

84074068

DISC,5mm ID x 82mm OD x 5mm Thk

1шт.

3

84064163

BUSHING,80mm ID x 90mm OD x 80mm L

2шт.

4

84069731

SEALING RING,80mm ID x 94mm OD x 9mm Thk

2шт.

5

87660278

KNUCKLE JOINT

Steering, LH

1шт.

6

84068654

TAPERED BEARING,85mm ID x 130mm OD x 29mm W

1шт.

7

84454949

SEALING RING,125mm ID x 150mm OD x 12mm Thk

1шт.

8

84068653

TAPERED BEARING,65mm ID x 110mm OD x 34mm W

1шт.

9

47815139

FLANGE

Hub

1шт.

10

84443588

WHEEL BOLT,M20 x 76mm, Cl 10.9

10шт.

11

84062511

WHEEL NUT,M20

10шт.

12

47815148

WASHER,31MM ID X 80MM OD X 12MM THK

1шт.

13

47906315

SLOTTED NUT,M30 X 1.5

1шт.

14

130016

COTTER PIN,M6.3 x 63

1шт.

15

84429450

COVER

Rear Bearing

1шт.

16

84446948

SUPPORT

Bushing, LH

1шт.

17

446307

SEALING RING,6.3mm ID x 13mm OD x 1.5mm Thk

2шт.

18

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

19

84069505

BOLT,Hex Skt, Shldr, M24 x 2 x 70mm, Cl 8.8

2шт.

20

87618988

HEX SOC SCREW,M24 x 2 x 90mm, Cl 8.8

2шт.

21

87702084

EXTENSION

Rear Axle, LH

1шт.
