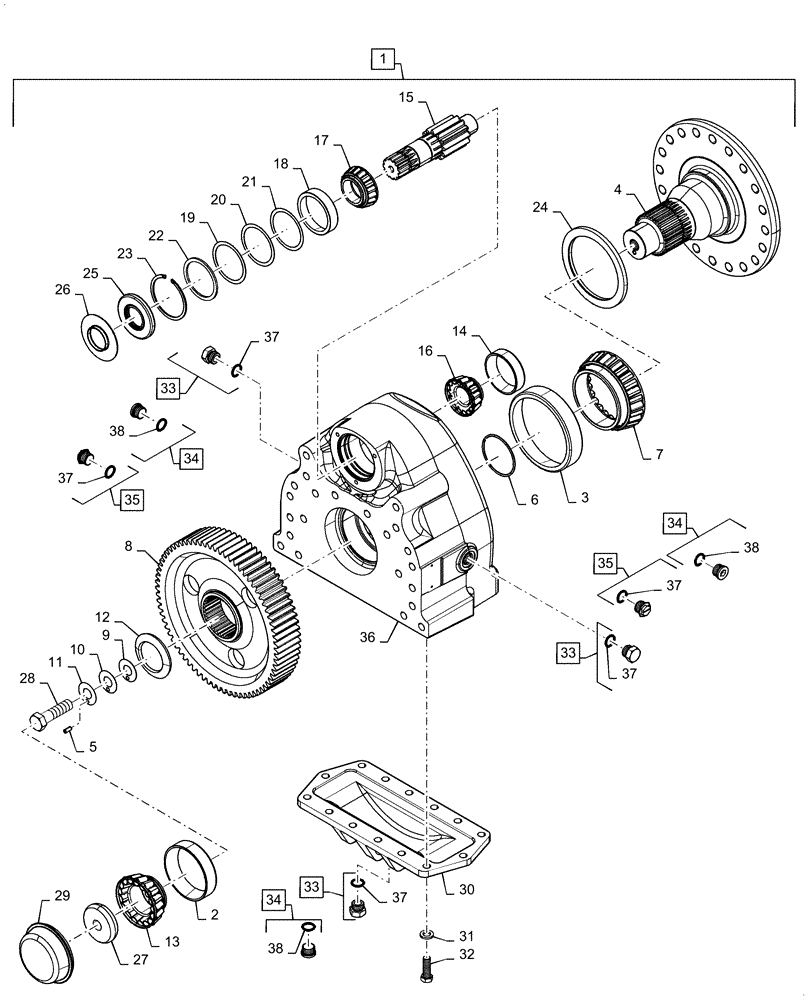

Запчасти Case IH 6088 (25.310.AB) - FINAL DRIVE, SHOTPEENED (25) - FRONT AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
1
87695215
GEARBOX ASSY
Final Drive, Incl 2 - 38
1шт.
2
71455R1
BEARING ASSY,136.53mm OD x 31.75mm W
1шт.
3
135649A1
BEARING CUP,196.85mm OD x 38.1mm W
1шт.
4
87338661
HUB
Final Drive Axle Shaft
1шт.
5
37-1512
DOWEL,5/16" x 3/4"
1шт.
6
135297A1
CIRCLIP
Final Drive Shaft
1шт.
7
335947A1
ROLLER BEARING,133.35mm ID x 46.04mm W
1шт.
8
87354349
GEAR
Driven, 73T
1шт.
9
135301A1
SHIM,0.635mm Thk
1шт.
10
135300A1
SHIM,0.457mm Thk
1шт.
11
135299A1
SHIM,0.051mm Thk
1шт.
12
135307A1
SPACER
Final Drive
1шт.
13
135294A1
THRUST BEARING,71.44mm ID x 41.19mm W
1шт.
14
135650A1
BEARING CUP,101.6mm OD x 26.99mm W
1шт.
15
87354348
SHAFT
Input, Pinion, 12T
1шт.
16
135295A1
ROLLER BEARING,44.46mm ID x 35.98mm W
1шт.
17
K4729
ROLLER BEARING,57.15mm ID x 30.96mm W
1шт.
18
135651A1
BEARING CUP,104.78mm OD x 23.81mm W
1шт.
19
135305A1
SHIM,88mm ID x 104mm OD x 0.63mm Thk
1шт.
20
135303A1
SHIM,88mm ID x 104mm OD x 0.46mm Thk
1шт.
21
135302A1
SHIM,88mm ID x 104mm OD x 0.05mm Thk
1шт.
22
193652A1
WASHER
Spacer
1шт.
23
101-21412
SNAP RING,#412, 4.430", Int
1шт.
24
135293A1
OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk
1шт.
25
135292A1
OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk
1шт.
26
135291A1
GUARD
Seal
1шт.
27
135289A1
RETAINER
Bearing Plate
1шт.
28
828-24090
BOLT,Hex, M24 x 3 x 90mm, Cl 10.9
1шт.
29
135296A1
BEARING COVER
Plate
1шт.
30
135286A1
COVER
Final Drive Housing
1шт.
31
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
14шт.
32
628-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
14шт.
33
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
Incl 37
3шт.
34
218-5212
PLUG,1-1/16" - 12 ORB
Incl 38
3шт.
35
353-782
PLUG,Slotted, 1 1/16"-12
Incl 37
2шт.
36
87695213
HOUSING
Final Drive, Heavy Duty
1шт.
37
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
5шт.
38
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
3шт.
Выбрано товаров: 38
