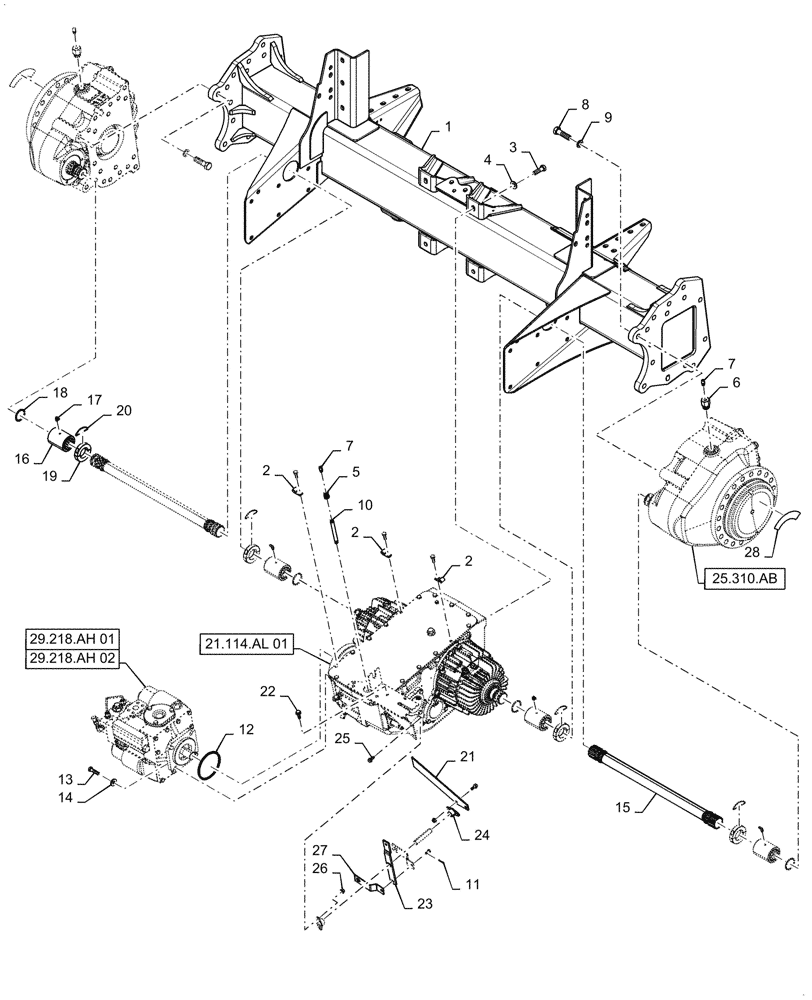

Запчасти Case IH 6088 (25.100.AA) - FRONT AXLE ASSY (25) - FRONT AXLE SYSTEM

1

87690614

DRIVE AXLE

Front

1шт.

2

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

3

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

4

394631

WASHER,17mm ID x 34mm OD x 4mm Thk

4шт.

5

105420

REDUCER FITTING

1/4" to 1/8"

1шт.

6

135950A1

ADAPTER

Final Drive Vent

2шт.

7

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

3шт.

8

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

26шт.

9

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

26шт.

10

121210

PIPE,Nipple, 1/4" NPT x 4 1/2"

, Serial Range: -Y9G001908

1шт.

10

84198534

NIPPLE

Pipe, 1/4" NPTF, Start Serial: Y9G001908

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

1шт.

12

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

13

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

VAR - 425028, 425032, 425119, 425123

4шт.

13

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

VAR - 425030, 425025, 425121, 425124

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

VAR - 425028, 425032, 425119, 425123

4шт.

14

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

VAR - 425030, 425025, 425121, 425124

4шт.

15

87703493

SHAFT

Final Drive, 764mm L

2шт.

16

84416329

SPLINED COUPLING,12T

Transmission to Final Drive Shaft

4шт.

17

323713

LUBE NIPPLE,M6 x 1mm

4шт.

18

123763A1

SNAP RING

Retaining

4шт.

19

244549A1

COLLAR

2 Piece Shaft, 1-7/8" OD

4шт.

20

245105A2

CLIP

Retension Spring

4шт.

21

87490248

BRACKET

Transmission Shift Linkage Support

1шт.

22

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

3шт.

23

84160202

LEVER

Transmission Shift Lower

1шт.

24

87364072

BEARING

Pivot Upper and Lower

2шт.

25

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

26

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

27

194437C1

LINK

Shift Rail Control Lever

1шт.

28

84121811

DECAL

Front Wheel Bolt Torque

2шт.
