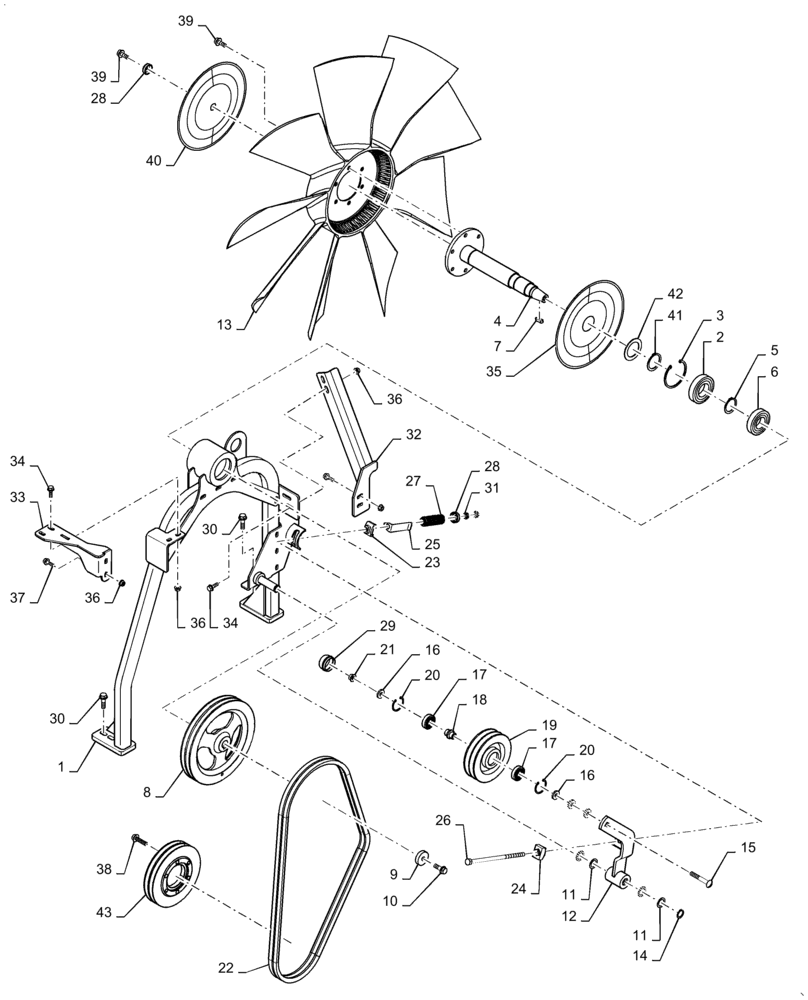

Запчасти Case IH 5140 (10.414.AC) - FAN DRIVE (10) - ENGINE

1

47432136

SUPPORT

Fan Drive

1шт.

2

450716

BALL BEARING,40mm ID x 80mm OD x 18mm Thk

1шт.

3

300633

SNAP RING,M80, Internal

1шт.

4

84514654

SHAFT

Drive

1шт.

5

370006

SNAP RING,M40, Ext

1шт.

6

87621965

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

7

170005

KEY,M8 x 7mm W x 25mm OAL

1шт.

8

84557659

PULLEY,253.9mm OD

Engine Fan

1шт.

9

330083A1

SPACER,11mm ID x 40mm OD x 10mm Thk

Boss

1шт.

10

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

1шт.

11

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

12

87540958

ARM ASSY.

Tensioner

1шт.

13

84457284

FAN

Engine

1шт.

14

370024

CIRCLIP,M20, Ext

1шт.

15

87752069

CARRIAGE BOLT,Sht Sq Nk, M10 x 70mm, Cl 10.9

1шт.

16

447336

WASHER,11mm ID x 25mm OD x 3.99mm Thk

4шт.

17

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

2шт.

18

87538002

BUSHING,10.2mm ID x 25mm OD x 29.4mm L

1шт.

19

87533880

PULLEY,144mm OD

Belt

1шт.

20

300644

SNAP RING,M40, Internal

2шт.

21

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

22

47708569

V-BELT,12.7mm x 1692.5mm L W, 1 Rib

Fan

1шт.

23

442398

GUIDE

Bracket

1шт.

24

754131

GUIDE

Bracket

1шт.

25

84188560

BRACKET

Indicator, Fan Drive, Spring

1шт.

26

9514334

ROD,M10 x 225mm

Stud

1шт.

27

84069932

COMPRESSION SPRING,25mm OD x 100mm L

Expander

1шт.

28

356728

CUP

Spring

2шт.

29

87540959

CAP

Dust

1шт.

30

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

4шт.

31

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

32

47376768

BRACKET

Fan Drive Brace

1шт.

33

84299967

BRACKET

Fan Drive

1шт.

34

87698833

BOLT,M8 x 33.1mm, Cl 10.9

6шт.

35

84120743

DISC

Cover

1шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

37

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

2шт.

38

16288724

FLANGE BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8

6шт.

39

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

7шт.

40

84120744

DISC

Cap

1шт.

41

370007

SNAP RING,M45, Ext

1шт.

42

87613252

WASHER,1.81" ID x 2.5" OD x 0.11" Thk

1шт.

43

47616673

PULLEY,69mm ID x 185.6mm OD x 38.65mm Thk

Drive

1шт.
