(60.130.AJ[01]) - DRIVE, FEEDER DRIVESHAFT, STANDARD

Запчасти Case IH 5140 (60.130.AJ[01]) - DRIVE, FEEDER DRIVESHAFT, STANDARD (60) - PRODUCT FEEDING

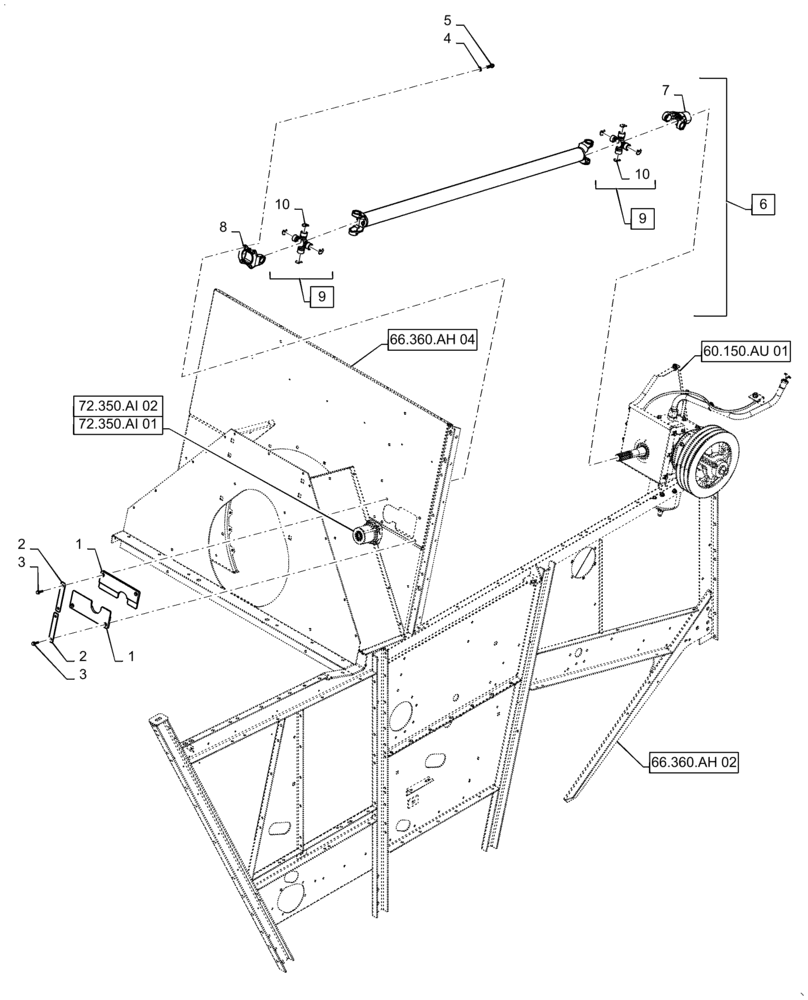

Схема запчастей Case IH 5140 - (60.130.AJ[01]) - DRIVE, FEEDER DRIVESHAFT, STANDARD (60) - PRODUCT FEEDING
5
72.350.ai 01
3
72.350.ai 02
1
6
4
3
1
2
66.360.ah 02
9
10
10
8
9
7
60.150.au 01
66.360.ah 04
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87584502

SEAL

Feeder Driveshaft

2шт.

2

87624399

STRAP

Drive Shaft Seal Retainer

2шт.

3

87030775

BOLT,M8 x 38.1mm, Cl 10.9

4шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

5

87035075

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

6

87330901

DRIVE SHAFT

Separator Jackshaft, Incl 7 - 10

1шт.

7

87600701

YOKE

Slip, 1 3/8" 10T Spline

1шт.

8

87600700

FLANGE

Yoke

1шт.

9

87597409

BEARING ASSY

Universal Joint, Incl 10

2шт.

10

87600698

SNAP RING

Universal Joint Retainer

8шт.

Выбрано товаров: 10
