Запчасти Case IH 5140 (55.101.AC[17]) - WIRE HARNESS, STEERING COLUMN (55) - ELECTRICAL SYSTEMS

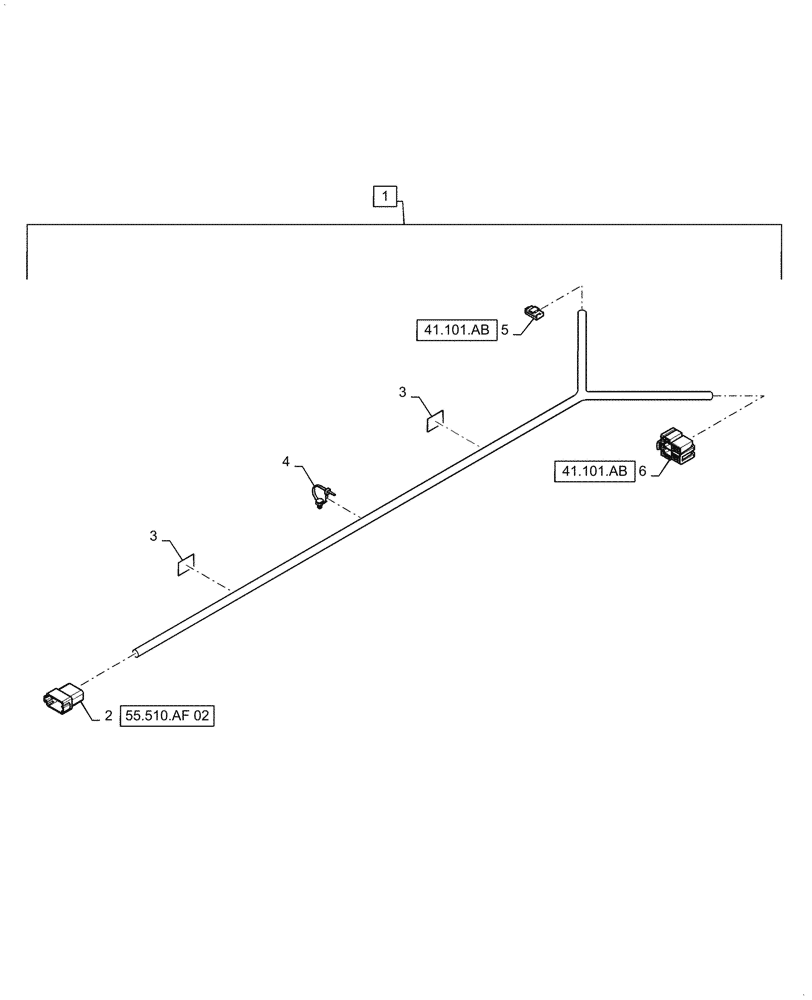

Схема запчастей Case IH 5140 - (55.101.AC[17]) - WIRE HARNESS, STEERING COLUMN (55) - ELECTRICAL SYSTEMS
41.101.ab
3
4
6
2
3
1
5
55.510.af 02
41.101.ab

Артикул

Название

Примечание

Количество

1

84524006

HARNESS

Steering Column, Incl 2 - 6

1шт.

2

87695724

ELEC CONNECTOR,Male, 12 Pole

To Main Cab Harness, X-067

1шт.

2

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge, To Main Cab Harness, X-067

1шт.

2

87695623

ELEC. TERMINAL PIN

To Main Cab Harness, X-067

12шт.

3

84123434

TAPE

White

2шт.

4

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

1шт.

5

87715979

ELEC CONNECTOR

Indicator Lights, X-143

1шт.

5

87715982

ELEC. TERMINAL PIN

Indicator Lights, X-143

4шт.

6

87318288

TERMINAL CONNECTOR

Stalk Switch, X-140

1шт.

6

84164963

TERMINAL

Stalk Switch, X-140

8шт.

Выбрано товаров: 10
