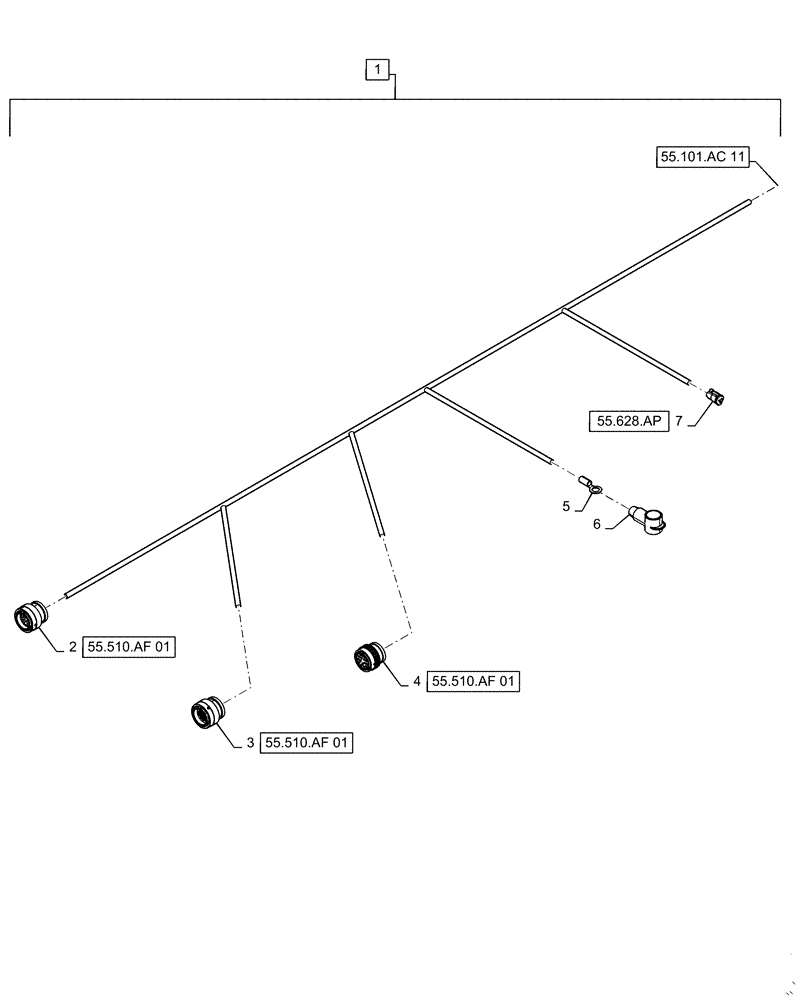

Запчасти Case IH 5140 (55.101.AC[10]) - WIRE HARNESS, LEFT MAIN (55) - ELECTRICAL SYSTEMS

1

48055020

WIRE HARNESS

Left Main, Incl 2 - 7

1шт.

2

47761866

ELEC CONNECTOR,Female, 47 Cavities

to Cab Main 1, X-1045A

1шт.

2

84068583

PLUG,12 - 16 Ga, White

to Cab Main 1, X-1045A

5шт.

2

84807680

PLUG

to Cab Main 1, X-1045A

4шт.

2

87696141

TERMINAL

to Cab Main 1, X-1045A

38шт.

3

47761869

ELEC CONNECTOR

to Cab Main 1, X-1045

1шт.

3

84068583

PLUG,12 - 16 Ga, White

to Cab Main 1, X-1045

3шт.

3

87696141

TERMINAL

to Cab Main 1, X-1045

28шт.

4

87703935

ELEC CONNECTOR

to Cab Main 2, X-1046

1шт.

4

84068583

PLUG,12 - 16 Ga, White

to Cab Main 2, X-1046

5шт.

4

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, to Cab Main 2, X-1046

11шт.

5

84407992

TERMINAL,Straight 3/8”

Eyelet, Cab Power Stud, X-550L

1шт.

6

47819257

COVER

to Cab Main 2, X-1046

1шт.

7

84074635

CONTACT HOUSING,Female, 3 Pole

Concave Position, X-189

1шт.

7

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Concave Position, X-189

3шт.

7

84074639

LOCKING TAB,Wedge Lock

Wedge, Concave Position, X-189

1шт.
