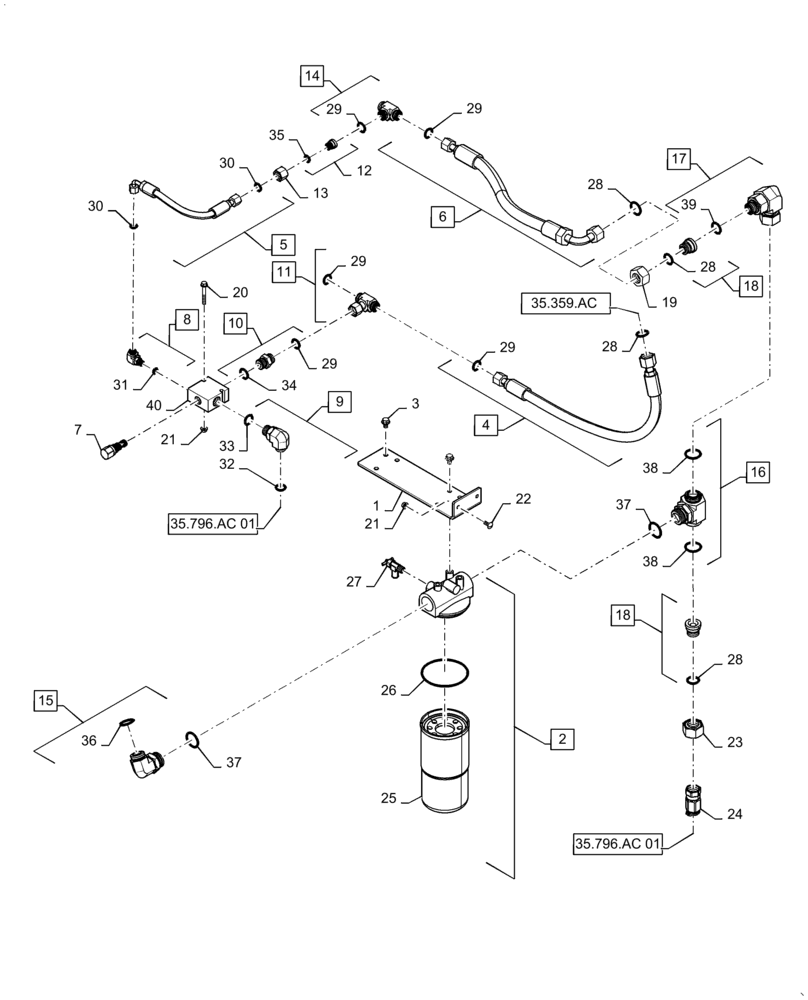

Запчасти Case IH 5140 (35.796.AC[02]) - SPREADER HOOD FILTER & LINE (35) - HYDRAULIC SYSTEMS

1

47581898

BRACKET

Spreader Filter

1шт.

2

87689482

FILTER ASSY

Return, Incl 25 - 27

1шт.

3

87021006

BOLT,M10 x 26.4mm, Cl 10.9

3шт.

4

47575160

HYDRAULIC HOSE

Pump Regulator Supply, Incl 28, 29

1шт.

5

47575161

HOSE

Regulator Drain, Incl 30

1шт.

6

47591139

HOSE

Air Screen Return, Incl 28, 29

1шт.

7

84280236

VALVE

Piloted Logic Element

1шт.

8

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 31

1шт.

9

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

Incl 32, 33

1шт.

10

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

Incl 29, 34

1шт.

11

87564726

TEE,1-14 ORFS x 1-1/8' ORFS

Incl 29

1шт.

12

201-161

UNION

Adapter, Incl 35

1шт.

13

86624028

TUBE NUT,1"-14 ORFS

1шт.

14

201-415

TEE,1"-14 ORFS

Incl 29

1шт.

15

86511661

90 ELBOW,Adj, 1 7/16"-12 ORFS x 1 5/8"-12" ORB

Incl 36, 37

1шт.

16

84302526

HYD CONNECTOR

Incl 37, 38

1шт.

17

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

Incl 39

1шт.

18

87724431

HYD CONNECTOR

Adapter, Incl 28

2шт.

19

203-906

TUBE NUT,1 11/16"-12 ORFS

1шт.

20

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

22

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

23

87530411

NUT

ORFS

1шт.

24

47733262

ADAPTER

Female Quick Connect

1шт.

25

1329214C1

HYDRAULIC OIL FILTER

Spin On

1шт.

26

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

1шт.

27

301803R1

SHUT-OFF VALVE

Drain

1шт.

28

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

29

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

36

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

37

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

38

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

39

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

40

84283524

SEAL KIT

Piloted Valve

1шт.
