Запчасти Case IH 5140 (10.500.AD[01]) - DEF/ADBLUE™ LINES & TANK, ASN YEG012701 (10) - ENGINE

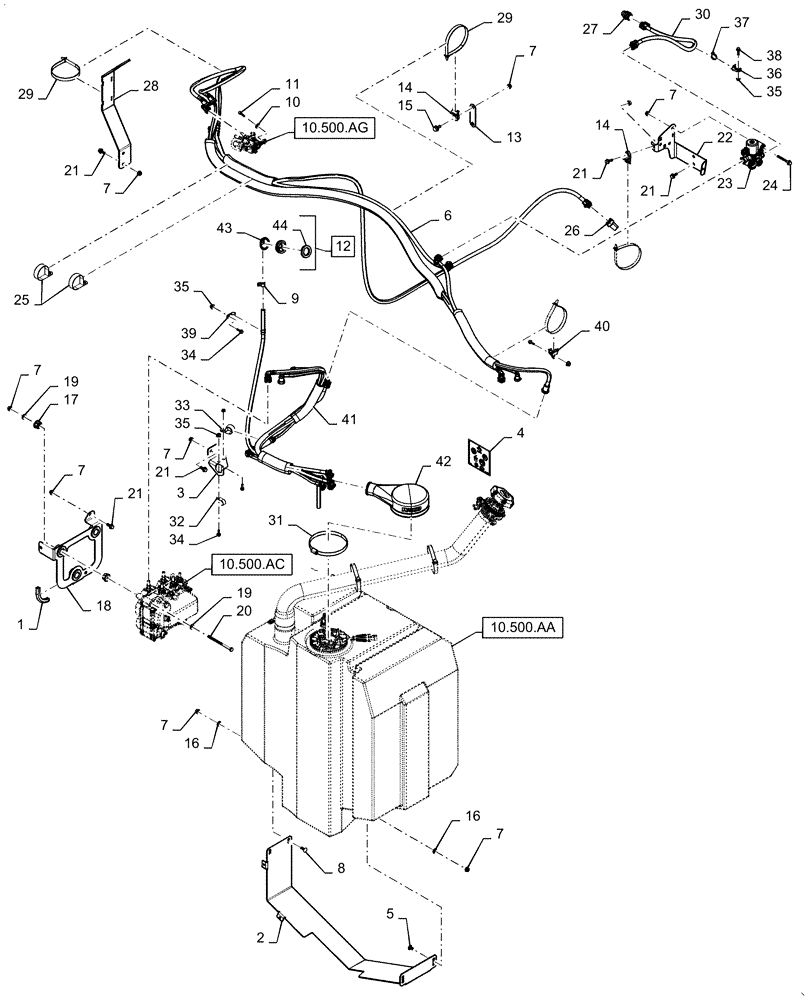

Схема запчастей Case IH 5140 - (10.500.AD[01]) - DEF/ADBLUE™ LINES & TANK, ASN YEG012701 (10) - ENGINE
10.500.ac
10
30
28
9
20
21
32
17
7
11
19
23
29
4
25
33
8
39
37
16
31
42
14
13
15
5
38
18
7
7
7
34
22
6
35
24
19
21
35
7
7
7
7
2
14
3
29
35
1
34
21
16
44
43
41
27
21
26
36
12
40
21
10.500.ag
10.500.aa

Артикул

Название

Примечание

Количество

1

1327979C1

MOLDING

Edge Trim

1шт.

2

47378282

SUPPORT

Tank Bottom

1шт.

3

47644486

BRACKET

Filter Mount

1шт.

4

47692590

DECAL

DEF/Adblue Tank - Clean Machine

1шт.

5

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

6

47582498

FUEL HOSE

Line Bundle

1шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

21шт.

8

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

9

87436932

CLAMP,13.9mm - 15.5mm, Spring

1шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

11

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

12

47592872

FILTER ASSY

Incl 43 - 44

1шт.

13

84519694

SUPPORT

Bundle

1шт.

14

84474186

BASE

Tie

2шт.

15

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

16

131-440

PUSH-ON NUT

Retainer

4шт.

17

2855150

INSULATOR BLOCK

Rubber Bushing

6шт.

18

47426870

BRACKET

Supply Unit

1шт.

19

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

20

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

3шт.

21

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

22

47583204

BRACKET

Coolant Valve

1шт.

23

84483089

HEATER,12V

Valve, 12V

1шт.

24

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

25

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

26

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

27

47441450

ADAPTER

NG12

1шт.

28

47556126

BRACKET

Bundle At DOC

1шт.

29

84266050

CABLE TIE,384mm L, Polyamide

6шт.

30

47422252

HOSE

Coolant Supply

1шт.

31

337049

CLAMP,137mm - 150mm

Strap

1шт.

32

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

Hose

1шт.

33

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

34

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

4шт.

35

86050300

FLANGE NUT,M6 x 1.0, Cl 10

5шт.

36

84340333

BASE PLATE

Tie Base

1шт.

37

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

38

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

39

87564736

CLAMP,14.3mm, Insul, M6 Bolt

Hose

1шт.

40

84360210

BASE

Tie

1шт.

41

47651824

FILTER, DEF,70 Micron

Bundle

1шт.

42

84153506

CAP

Bundle

1шт.

43

47592873

FILTER, DEF

Breather

1шт.

44

47592880

FILTER

Breather

1шт.

Выбрано товаров: 44
