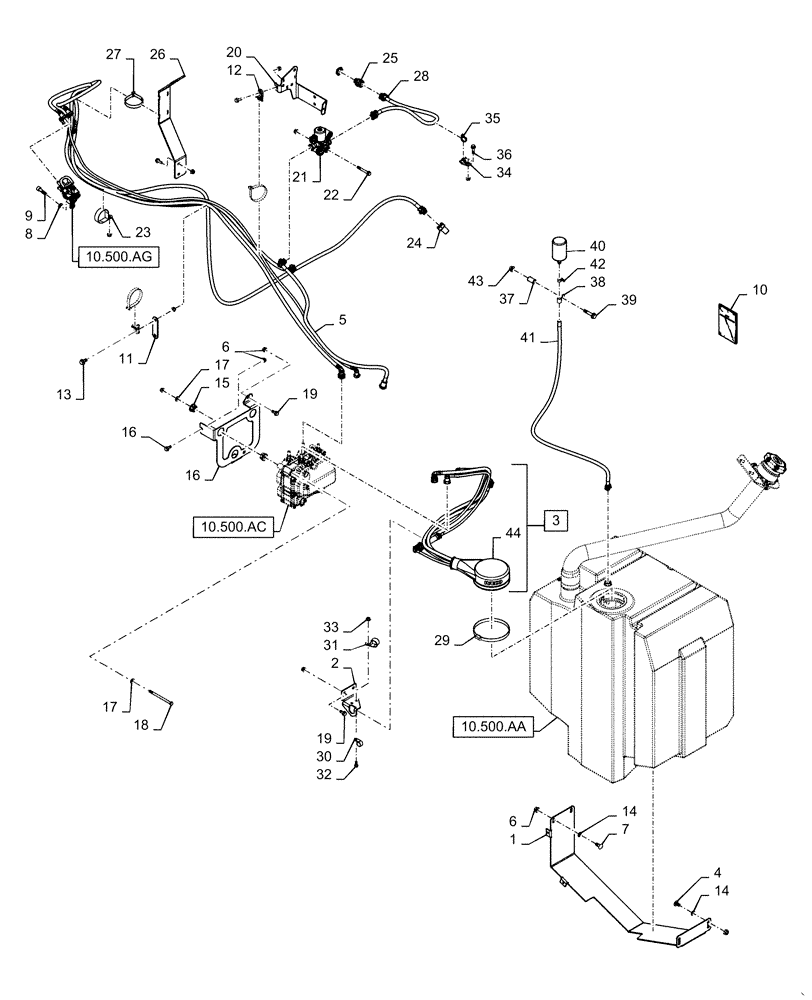

Запчасти Case IH 5140 (10.500.AD[01]) - DEF LINES, DEF TANK, BSN YEG012701 (10) - ENGINE

1

47378282

SUPPORT

DEF Tank Bottom, Dark Grey

1шт.

2

84422163

BRACKET

Filter Mount, Dark Grey

1шт.

3

47582496

FUEL HOSE

DEF Line Bundle, Rear Hood, Incl 44

1шт.

4

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

5

47582498

FUEL HOSE

DEF Line Bundle, NEF Engine

1шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

21шт.

7

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

9

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

10

84284896

DECAL,DEF TANK identification label

DEF Tank

1шт.

11

84519694

SUPPORT

DEF Bundle, Dark Grey

1шт.

12

84474186

BASE

Tie

2шт.

13

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

14

131-440

PUSH-ON NUT

Retainer

4шт.

15

2855150

INSULATOR BLOCK

Rubber Bushing

6шт.

16

47426870

BRACKET

Supply Unit, Dark Grey

1шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

18

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

3шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

20

47583204

BRACKET

Coolant Valve, Dark Grey

1шт.

21

84483089

HEATER,12V

Valve

1шт.

22

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

23

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

24

87270102

FITTING,1/2" NPTF to Quick Connect

1/2" NPTF

1шт.

25

47441450

ADAPTER

M18 W/O-Ring

1шт.

26

47556126

BRACKET

DEF Bundle at DOC, Dark Grey

1шт.

27

84266050

CABLE TIE,384mm L, Polyamide

Strap

5шт.

28

47422252

HOSE

DEF Coolant Supply, NEF

1шт.

29

337049

CLAMP,137mm - 150mm

Strap

1шт.

30

87552802

CLAMP,19mm, Coat, 7.1mm Bolt Hole, P Type

19MM

1шт.

31

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

32

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

33

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

34

84340333

BASE PLATE

Tie Base

1шт.

35

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

36

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

37

84132594

SPACER,10.7mm ID x 17.1mm OD x 30mm OAL

1шт.

38

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

39

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

1шт.

40

47437399

FUEL FILTER

Tank Vent

1шт.

41

47567176

HOSE

Vent

1шт.

42

86625041

HOSE CLAMP,11.2mm - 19.8mm

1шт.

43

86050279

FLANGE NUT,M10 x 1.5, Cl 10

1шт.

44

47614262

FILTER, DEF

1шт.
