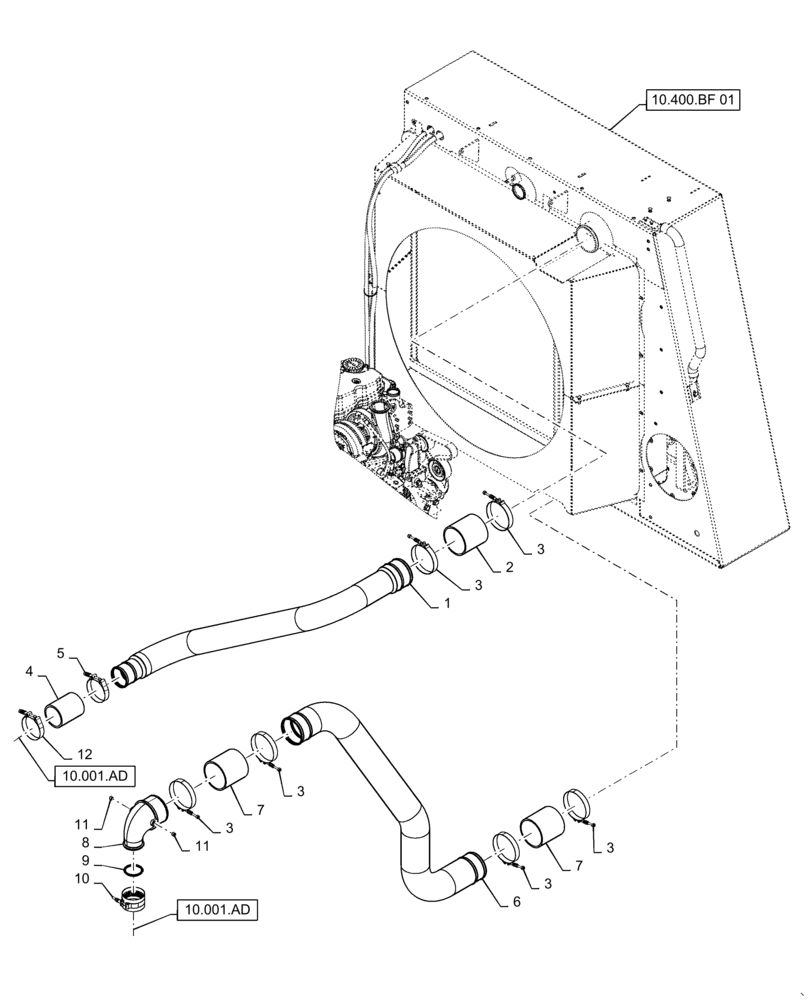

Запчасти Case IH 5140 (10.250.AJ[01]) - COOLING SYSTEM, CAC MR5 (10) - ENGINE

1

84255119

AIR INTAKE TUBE

CAC Cold Side

1шт.

2

87732308

HOSE,101mm ID x 110mm L

CAC Cold

1шт.

3

87420676

HOSE CLAMP,108mm - 115.8mm

T-Bolt. Spring Loaded

3шт.

4

84458881

HOSE,76mm ID x 110mm L

1шт.

5

352198A1

CLAMP,90mm

Hose

1шт.

6

47427189

AIR INTAKE TUBE

CAC Hot Side

1шт.

7

87732307

HOSE,101.6mm ID x 110mm L

CAC Hot

2шт.

8

86998476

ELBOW

Turbo Outlet

1шт.

9

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

10

87524288

CLAMP,77mm

Turbo Outlet V-Band

1шт.

11

86998472

PLUG

1/8" -27

2шт.

12

352198A1

CLAMP,90mm

Hose

1шт.
