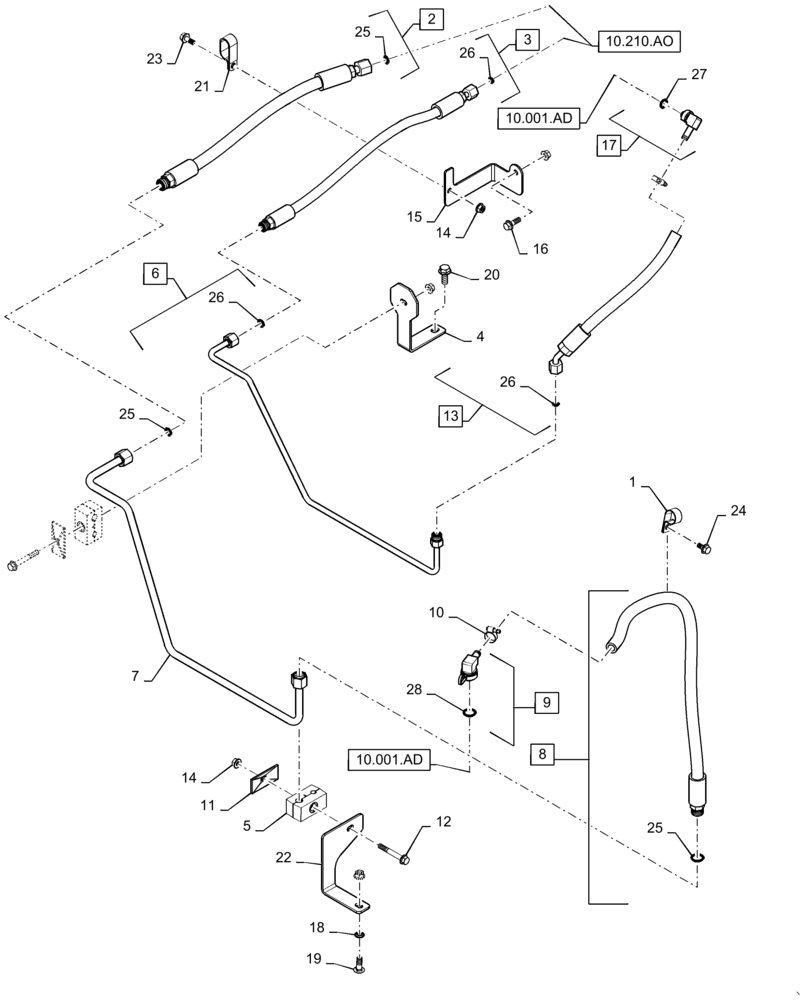

Запчасти Case IH 5140 (10.210.AF[01]) - FUEL LINE, ENGINE (10) - ENGINE

1

700514

CLAMP,3.8mm, Coat, M8 Bolt

Cable

1шт.

2

47381895

HYDRAULIC HOSE

Fuel Supply, Rear Hood, Incl 25

1шт.

3

84565334

FUEL HOSE,9.53mm ID x 530mm L, SAE 100R6

Return, Incl 26

1шт.

4

84513921

BRACKET

Tube Clamp

1шт.

5

87105732

CLAMP

Tube, 12.7mm x 9.52mm

2шт.

6

84565331

FUEL TUBE

Fuel Return, Incl 26

1шт.

7

84565332

FUEL TUBE

Fuel Supply

1шт.

8

47379727

FUEL HOSE

Supply, At Engine, Incl 25

1шт.

9

87442270

FITTING

90 Degree Elbow, Incl 28

1шт.

10

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

11

87000230

PLATE

Hose Clamp

2шт.

12

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

2шт.

13

84498846

HOSE ASSY.,9.53mm ID x 405mm L, SAE 100R6

Fuel Return, Incl 26

1шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

15

84565367

SUPPORT

Fuel Lines

1шт.

16

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

17

87400460

90 ELBOW

NG-8, Incl 27

1шт.

18

131-440

PUSH-ON NUT

5/16"

1шт.

19

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

1шт.

20

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

1шт.

21

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

Fuel Lines

1шт.

22

47407663

BRACKET

Tube Clamp

1шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

24

87681207

BOLT,M8 x 24.1mm, Cl 10.9

1шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

27

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

NG-8

1шт.

28

87445405

O-RING

NG-12

1шт.
