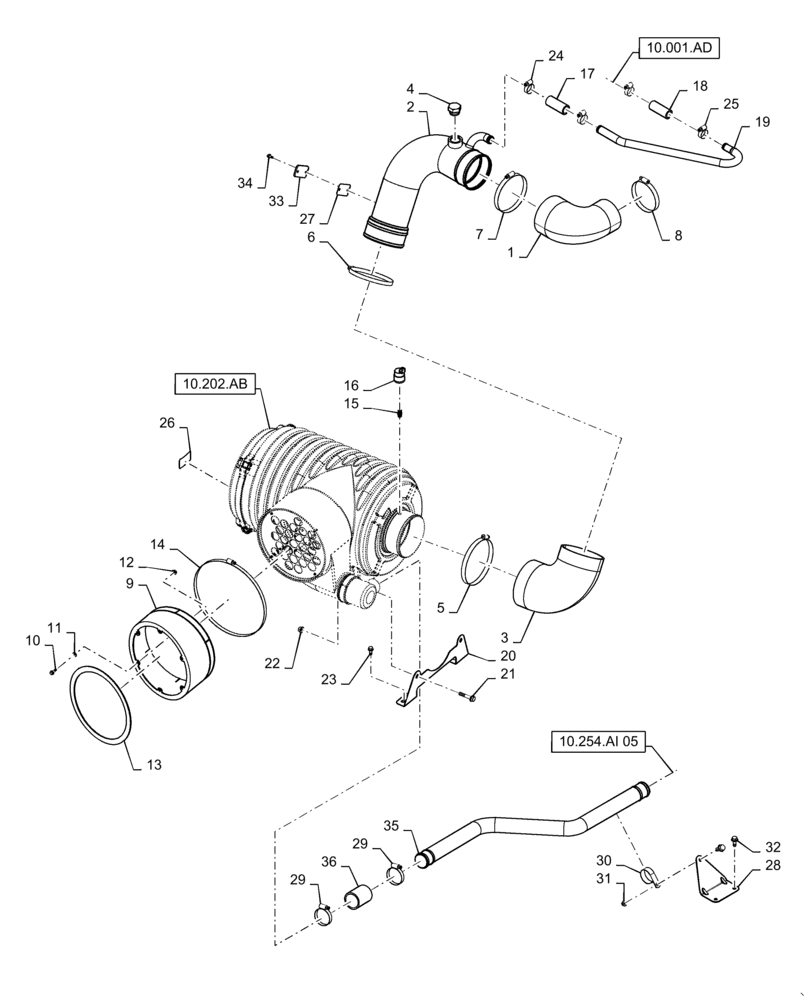

Запчасти Case IH 5140 (10.202.BD[01]) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

1

87313999

ELBOW

Air Inlet

1шт.

2

47373764

TUBE

Air Intake

1шт.

3

86995317

ELBOW

Air Intake Mid

1шт.

4

273916

PLUG,Hex, 1-5/16" - 12 ORB

1шт.

5

86633350

HOSE CLAMP,159mm - 181mm

1шт.

6

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

7

86637712

HOSE CLAMP,133mm - 156mm

1шт.

8

86637711

HOSE CLAMP,108mm - 130mm

1шт.

9

451775A1

DUCT

Air Intake

1шт.

10

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

6шт.

11

495-11028

WASHER,1/4", SAE

6шт.

12

87301498

FLANGE NUT,Hex, M6 x 1.0, Cl 10

6шт.

13

87302039

SEAL,856mm L

Air Intake Duct

1шт.

14

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

15

86976679

ADAPTER

To Restriction Switch

1шт.

16

87013666

SWITCH,Air Filter Restriction

Filter Indicator

1шт.

17

87637434

HYDRAULIC HOSE,1" ID x 3.1" L

1шт.

18

84296251

HOSE,22.23mm ID x 80mm L, SAE J30R7, Type 2

1шт.

19

47389493

TUBE

Crankcase Vent

1шт.

20

84158622

BRACKET

Air Cleaner Support

2шт.

21

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

4шт.

22

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

4шт.

23

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

5шт.

24

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

25

86643166

HOSE CLAMP,#16, 20.6mm - 38.1mm, Type F Worm Gear, W/ Liner

2шт.

26

84215544

DECAL

Air Filter Element ID

1шт.

27

84485285

GASKET,0.8mm Thk

Cover

1шт.

28

47543824

SUPPORT

Aspiration Tube

1шт.

29

86625019

HOSE CLAMP,44mm - 67mm

1шт.

30

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

50.8mm, Insulated

1шт.

31

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

32

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

33

84485287

COVER

Intake Tube

1шт.

34

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

35

47394886

TUBE

Aspiration

1шт.

36

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

1шт.
