Запчасти Case IH 5140 (73.230.AJ[04]) - 6 ROW FLAIL STRAW CHOPPER (73) - RESIDUE HANDLING

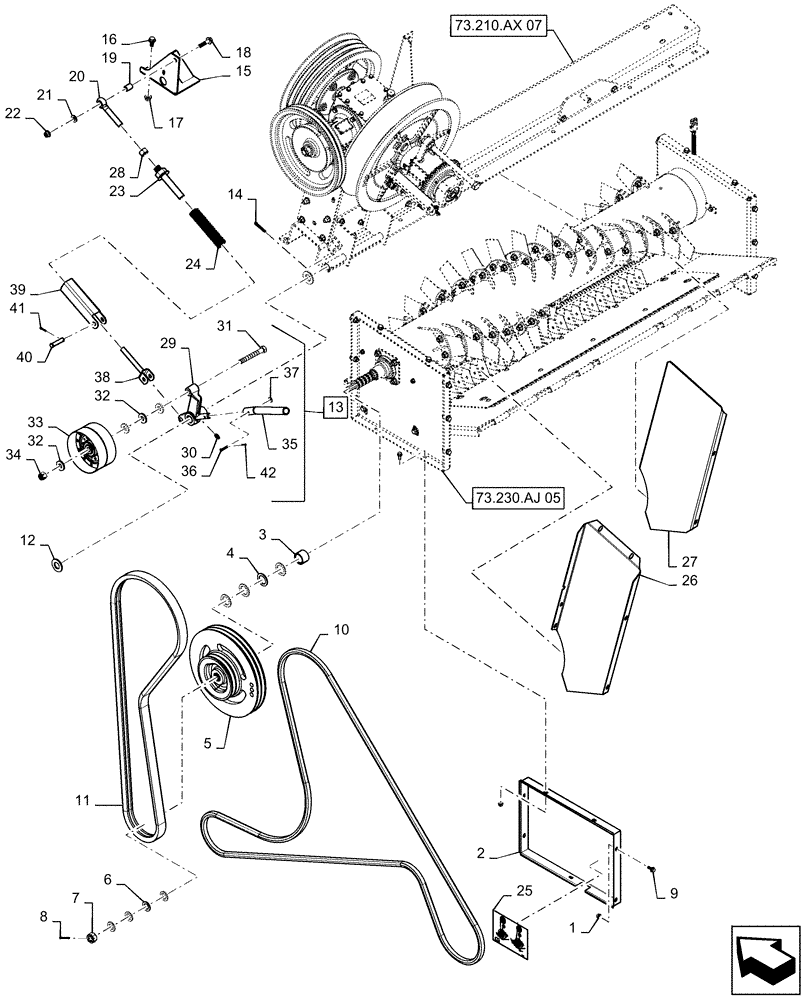

Схема запчастей Case IH 5140 - (73.230.AJ[04]) - 6 ROW FLAIL STRAW CHOPPER (73) - RESIDUE HANDLING
16
29
15
31
28
2
24
23
42
11
8
38
13
35
73.210.ax 07
20
26
1
22
73.230.aj 05
3
21
25
34
41
36
10
27
40
30
17
19
14
7
12
37
32
4
18
9
32
5
39
6
33

Артикул

Название

Примечание

Количество

1

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

2

87757116

SUPPORT

Chopper - Beater Filler Panel

2шт.

3

87614520

SPACER

Chopper Driven Pulley

1шт.

4

87629040

WASHER,1.34" ID x 2" OD x 0.12" Thk

5шт.

5

87735266

PULLEY,356mm OD

Chopper Drive

1шт.

6

87629039

WASHER,0.91" ID x 1.5" OD x 0.12" Thk

4шт.

7

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

8

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

10

87476486

V-BELT,22.33 mm W x 5105.40 mm L

Cleaning System Drive

1шт.

11

87330903

V-BELT,16mm W x 2748mm L, 2 Ribs

Chopper Drive

1шт.

12

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

13

84146274

PACKAGE,SERVICE

Chopper Drive Idler Lever, Incl 29 - 42

1шт.

14

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

15

84389239

SUPPORT

Idler Spring

1шт.

16

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

17

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

18

87670764

BOLT,M12 x 61.8mm, Cl 10.9

1шт.

19

87036416

SPACER,13.51mm ID x 19.05mm OD x 26.97mm L

1шт.

20

1315259C1

BOLT,3/4" - 10 x 113mm

1шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

22

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

23

87566525

PIN ASSY.

Tension Rod Connector

1шт.

24

87564865

SPRING

Idler Tension

1шт.

25

175788A1

DECAL

Straw Chopper Drive

1шт.

26

1347215C1

SUPPORT

RH, Deflector

1шт.

27

1347214C1

SUPPORT

LH, Deflector

1шт.

28

425-1012

NUT,3/4"-10, G5

1шт.

29

84146254

LEVER ASSY.

Chopper Drive Idler

1шт.

30

87414

LUBE NIPPLE,1/4" - 28

1шт.

31

280183

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 5

1шт.

32

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

4шт.

33

84146249

PULLEY,88.9mm W x 165.1mm OD

Idler

1шт.

34

85700693

NUT,5/8" - 11, Gr C

1шт.

35

84146241

TUBE,20.90 mm ID x 26.97 mm OD x 300, 50 mm L

Idler Arm Lever

1шт.

36

127-218

CLEVIS PIN,4.78mm OD x 30.94mm L

1шт.

37

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

1шт.

38

1315256C1

ROD

Tension Slider

1шт.

39

84146244

CHANNEL

Idler Arm Lock

1шт.

40

86837477

CLEVIS PIN,12.7mm OD x 57.15mm L

1шт.

41

80755

COTTER PIN,1/8" OD x 1" L

1шт.

42

9512667

COTTER PIN,M2 x 20mm OAL

1шт.

Выбрано товаров: 42
