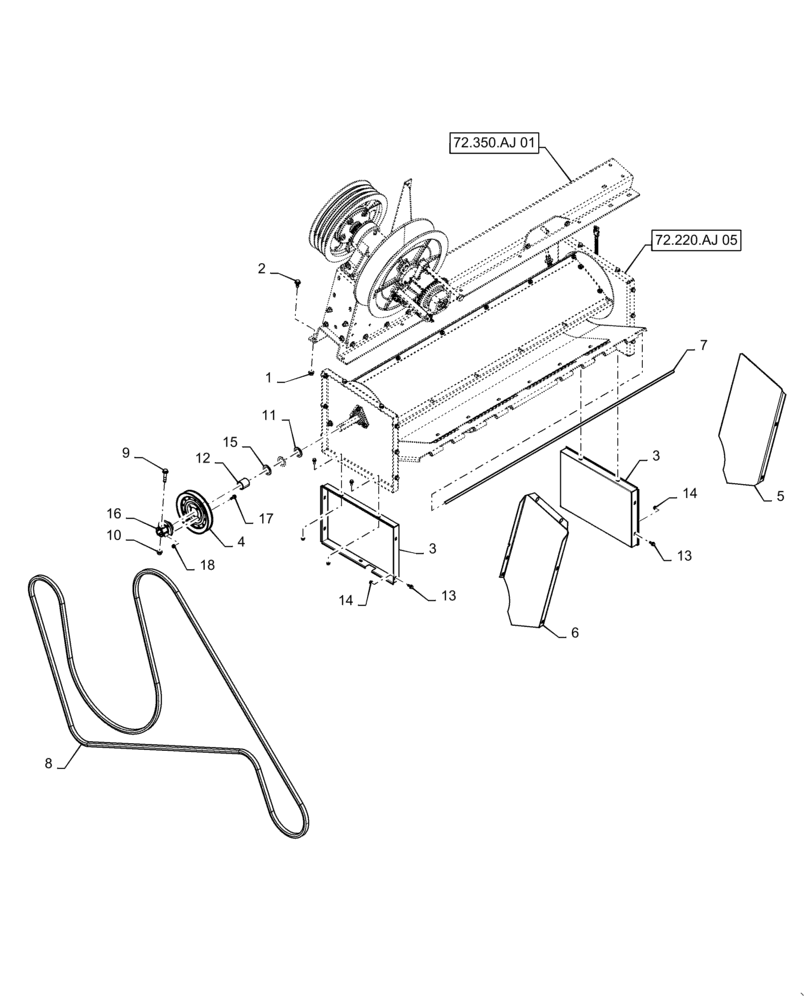

Запчасти Case IH 5140 (72.220.AJ [04]) - BEATER (72) - SEPARATION

1

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

2

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

3

87753814

SHEET

Chopper Beater, Filler, 563.9mm OAL x 413.5mm W

2шт.

4

87752814

PULLEY

Beater, 50.96mm ID x 215.9mm OD

1шт.

5

182948C2

DEFLECTOR

LH, 846.1mm OAL x 354.6mm W

1шт.

6

182949C2

DEFLECTOR

RH, 846.1mm OAL x 354.6mm W

1шт.

7

182980C1

ROD,11.11mm OD x 1556mm L

Hinge, 11.113mm OD x 1556mm OAL

1шт.

8

87476487

V-BELT,22.33 mm W x 6502.40 mm L

1шт.

9

87301277

BOLT,M12 x 71.8mm, Cl 10.9

1шт.

10

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

1шт.

11

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

2шт.

12

632147R1

SPACER

Auger Drive, 33.3mm ID x 41.3mm OD x 41.1mm OAL

1шт.

13

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

10шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

10шт.

15

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

1шт.

16

1319402C1

HUB

Beater, 33mm ID x 86.5mm OD x 68.5mm W

1шт.

17

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

18

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
