Запчасти Case IH 5140 (66.260.AV[01]) - PULLEY, TORQUE LIMITER (66) - THRESHING

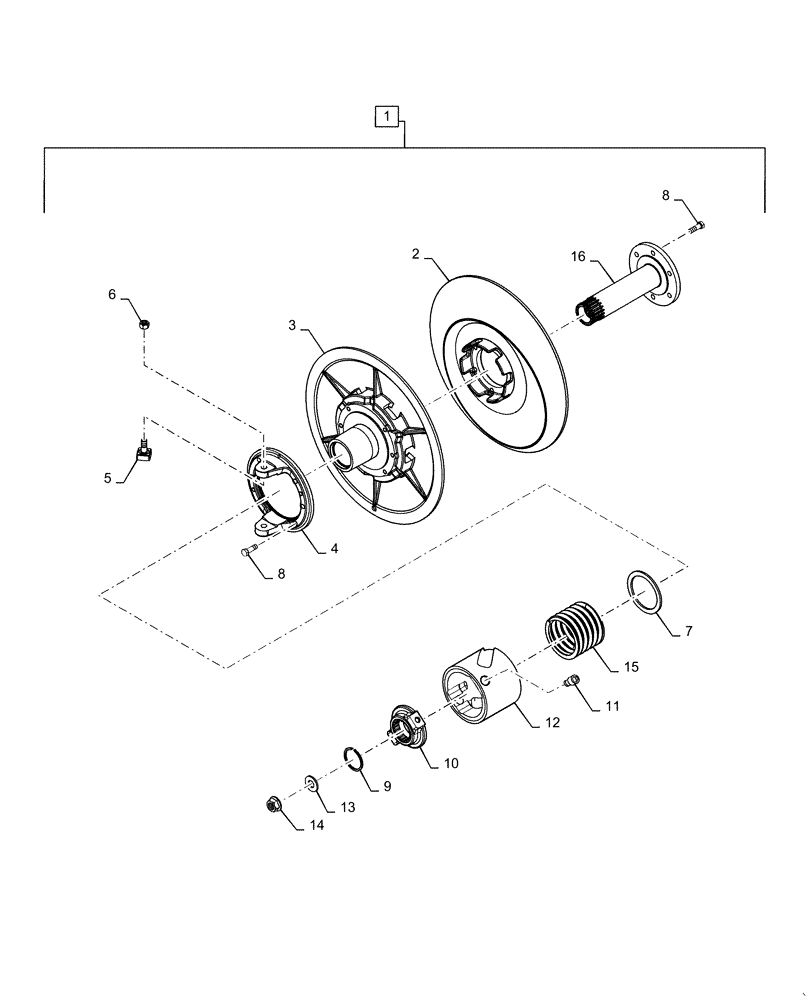

Схема запчастей Case IH 5140 - (66.260.AV[01]) - PULLEY, TORQUE LIMITER (66) - THRESHING
8
5
16
11
10
2
13
15
3
8
1
4
12
14
7
6
9

Артикул

Название

Примечание

Количество

1

84188228

PULLEY

Torque Sensing Unit, Incl 2 - 16

1шт.

2

87369115

PULLEY

Rotor Driven, Fixed

1шт.

3

413163A1

PULLEY,546.1mm OD

Rotor Driven, Variable

1шт.

4

411411A1

CAM FOLLOWER

Cam Follower

1шт.

5

87554227

CAMSHAFT BEARING,1-1/2" OD x 2-3/8" OAL, 5/8" - 18

2шт.

6

425-1110

NUT,5/8"-18, G5

2шт.

7

188210C91

CAM FOLLOWER

Thrust Bearing

1шт.

8

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

9

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

Hub Cam Follower Retainer

1шт.

10

411410A1

HUB,60.58mm ID x 137.4mm OD x 42mm L

Sensing Torque Cam

1шт.

11

194167C1

SCREW,5/8 - 11" x 1"

Spcket head .625"-11 x 1"

2шт.

12

413165A1

HUB

Cam Assembly, Torque Sensing

1шт.

13

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

Outer Bearing Retainer

1шт.

14

1315288C1

FLANGE NUT

Special

1шт.

15

413160A1

SPRING

Rotor Drive

1шт.

16

184489C1

HUB

Fixed Half Pulley

1шт.

Выбрано товаров: 16
