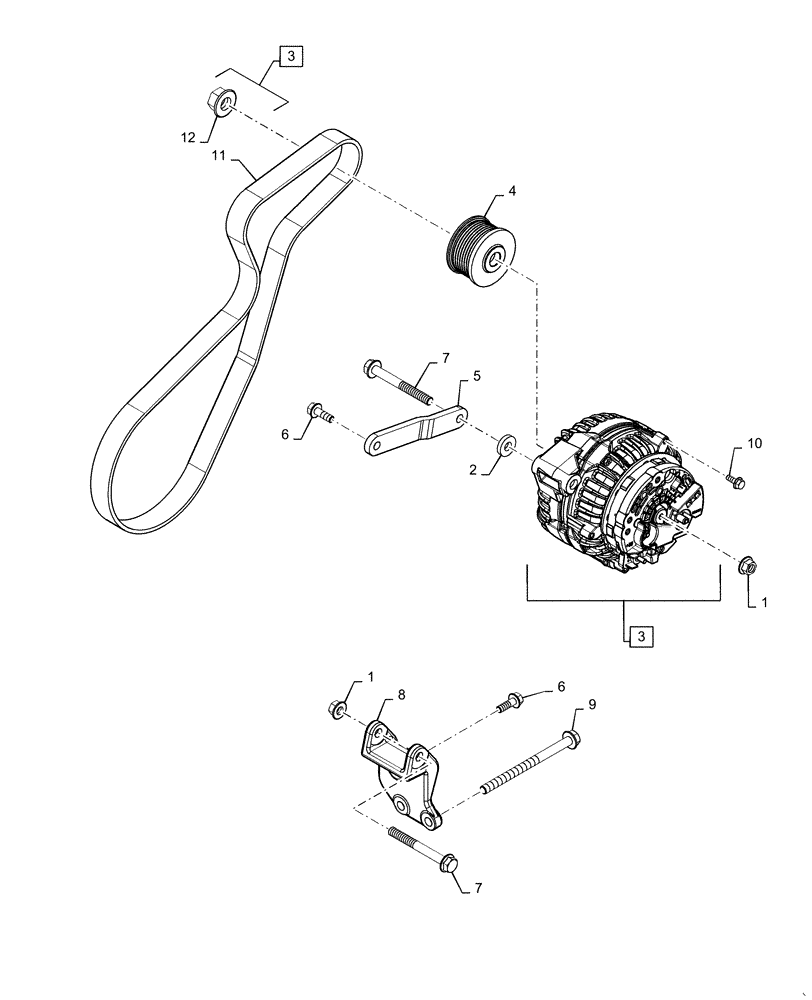

Запчасти Case IH 5140 (55.301.AD[01]) - ALTERNATOR ASSY, MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

1

86050279

FLANGE NUT,M10 x 1.5, Cl 10

2шт.

2

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

10mm

1шт.

3

84474354

ALTERNATOR,12V, 200A

200A, Incl 12

1шт.

3

84474354R

REMAN-ALTERNATOR,12V, 200A

1шт.

3

84474354C

CORE-ALTERNATOR

Return Number

1шт.

4

84174273

PULLEY

Alternator

1шт.

5

84530585

BRACKET

Alternator Mount, Upper

1шт.

6

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

7

87695408

BOLT,M10 x 1.5 x 100.4mm OAL, Cl 10.9

Flange, M10 x 90mm, 10.9

2шт.

8

84305176

MOUNT

Alternator, Lower

1шт.

9

87681213

BOLT,Hex, M10 x 140mm, Cl 10.9

2шт.

10

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

11

84312027

BELT,1276mm L

Alternator Drive

1шт.

12

NSS

NOT SOLD SEPARAT

Nut, Incl In 3

1шт.
