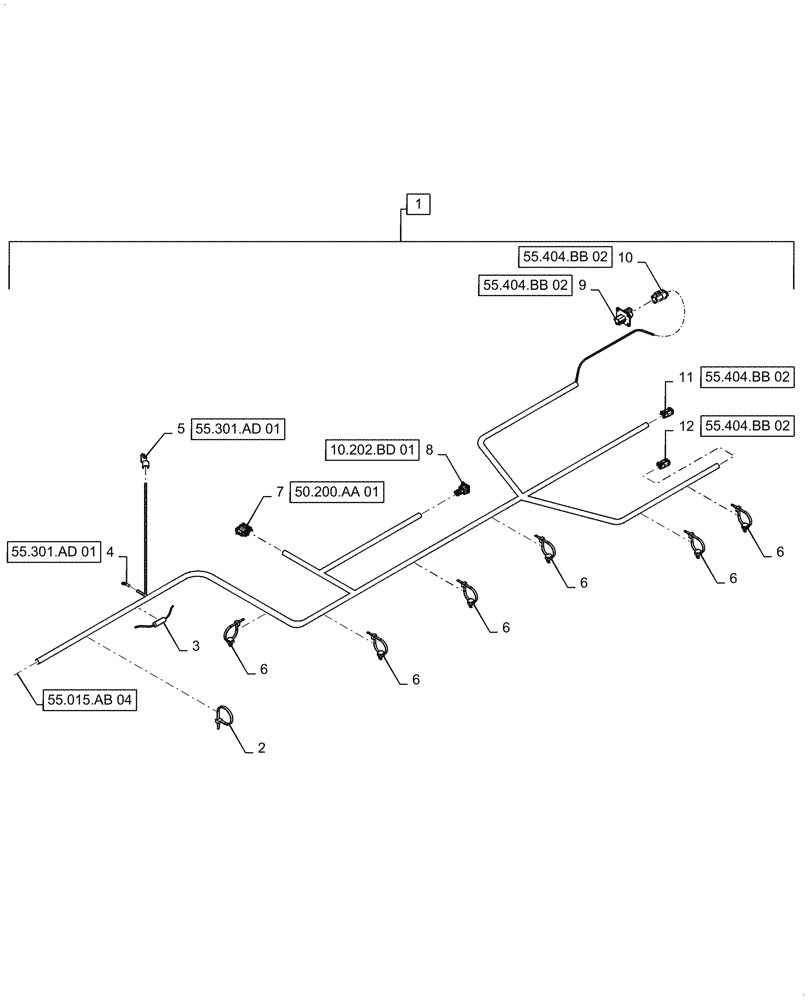

Запчасти Case IH 5140 (55.015.AB[05]) - WIRE HARNESS, ENGINE, CONTINUED (55) - ELECTRICAL SYSTEMS

1

47681971

WIRE HARNESS

Engine, NEF T4B, Incl 2 - 12

1шт.

2

87567356

CLAMP,200mm L x 4.6mm W x 1.2mm Thk

Cable Tie

1шт.

3

81878921

DIODE

Diode, V-099L

1шт.

4

84159852

TERMINAL,#10 Ring, SAE 18 - 20

Alternator D+ Stud, X-970

1шт.

5

84278797

TERMINAL

Alternator B+ Stud, X-987

1шт.

6

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

6шт.

7

87709809

ELEC CONNECTOR

Inlet Air Temp and Humidity Sensor, X-607

1шт.

7

87705973

TERMINAL

Inlet Air Temp and Humidity Sensor, X-607

4шт.

8

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Clogging Switch, X-309

1шт.

8

87702681

TERMINAL

Air Filter Clogging Switch, X-309

2шт.

9

84146319

3 WAY CONNECTION

Service Light Connector, X-194

1шт.

9

87695625

WIRE CONNECTOR,Locking, Green

Service Light Connector, X-194

1шт.

9

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Service Light Connector, X-194

2шт.

9

87695623

ELEC. TERMINAL PIN

Service Light Connector, X-194

1шт.

10

87695580

ELEC CONNECTOR,Female, 3 Pole

Dust Cap, X-194A

1шт.

10

84074639

LOCKING TAB,Wedge Lock

Wedge, Dust Cap, X-194A

1шт.

10

84068583

PLUG,12 - 16 Ga, White

Dust Cap, X-194A

2шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Dust Cap, X-194A

1шт.

11

87695909

ELEC CONNECTOR,Female, 2 Pole

Rear Beacon Light X-312

1шт.

11

84074638

LOCKING TAB,Locking Wedge, Green

Rear Beacon Light X-312

1шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Rear Beacon Light X-312

2шт.

12

87695909

ELEC CONNECTOR,Female, 2 Pole

Engine and Deck Light, X-197

1шт.

12

84074638

LOCKING TAB,Locking Wedge, Green

Engine and Deck Light, X-197

1шт.

12

84391159

WIRE CONNECTOR

Dust, Engine and Deck Light, X-197

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Engine and Deck Light, X-197

2шт.
