Запчасти Case IH 5140 (55.015.AB[04]) - WIRE HARNESS, ENGINE, CONTINUED (55) - ELECTRICAL SYSTEMS

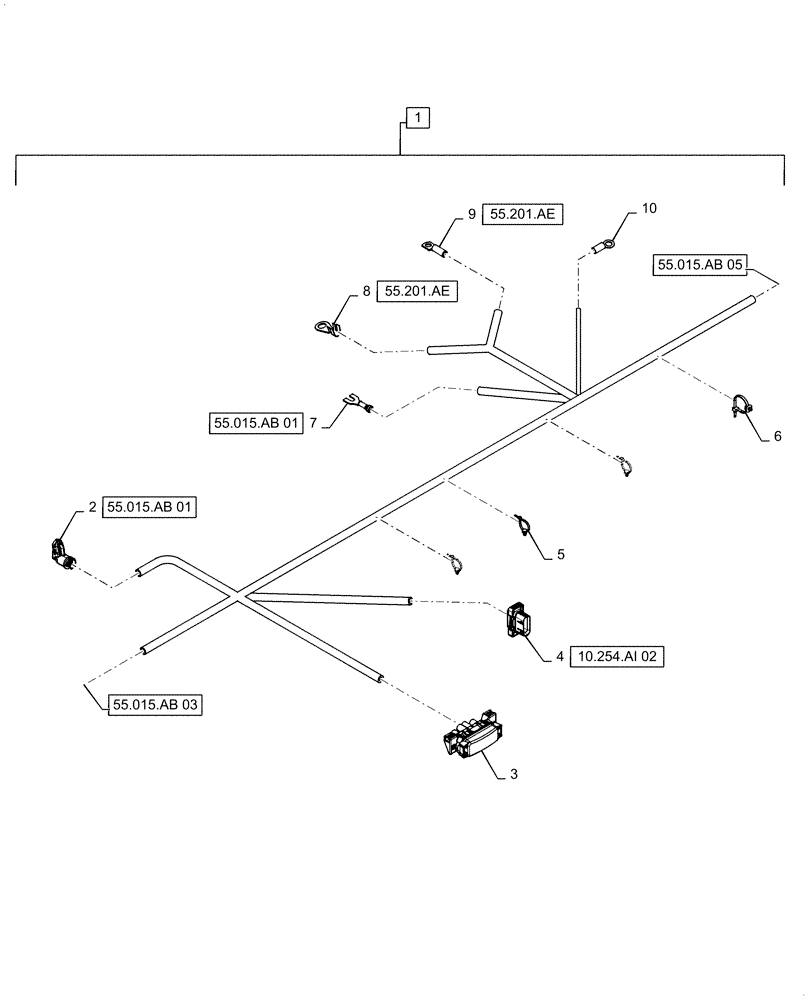

Схема запчастей Case IH 5140 - (55.015.AB[04]) - WIRE HARNESS, ENGINE, CONTINUED (55) - ELECTRICAL SYSTEMS
55.201.ae
1
4
9
6
8
5
2
10
3
7
55.015.ab 03
55.015.ab 05
55.015.ab 01
55.015.ab 01
10.254.ai 02
55.201.ae

Артикул

Название

Примечание

Количество

1

47681971

WIRE HARNESS

Engine, NEF T4B, Incl 2 - 10

1шт.

2

84519617

ELEC CONNECTOR

Elec Connector, Engine to LH Bulkhead, X-182

1шт.

2

84555419

WIRE CONNECTOR

Backshell, Engine to LH Bulkhead, X-182

1шт.

2

47519770

PLUG

Engine to LH Bulkhead, X-182

3шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Engine to LH Bulkhead, X-182

11шт.

2

87695923

TERMINAL

Engine to LH Bulkhead, X-182

4шт.

3

84603963

MODULE

Maxi Module, X-645

1шт.

3

82012388

FUSE,30A, Maxival, Green

Maxi Module, X-645

2шт.

3

84539290

RELAY,12V, 50A

Maxi Module, X-645

2шт.

3

47563654

ELEC CONNECTOR

Tether, Maxi Module, X-645

1шт.

3

84577567

TERMINAL

Maxi Module, X-645

2шт.

3

87693343

TERMINAL

Maxi Module, X-645

2шт.

3

84574203

TERMINAL

Maxi Module, X-645

2шт.

4

84550084

ELEC CONNECTOR

Elec Connector, Engine to Exhaust Bulkhead, X-619

1шт.

4

84068583

PLUG,12 - 16 Ga, White

Engine to Exhaust Bulkhead, X-619

14шт.

4

84807680

PLUG

Engine to Exhaust Bulkhead, X-619

2шт.

4

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

Engine to Exhaust Bulkhead, X-619

2шт.

4

87696141

TERMINAL

Engine to Exhaust Bulkhead, X-619

12шт.

5

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

3шт.

6

87567356

CLAMP,200mm L x 4.6mm W x 1.2mm Thk

Cable Tie

1шт.

7

47655328

TERMINAL

Terminal, Starter Solenoid, X-992

1шт.

8

84426141

TERMINAL

Starter, X-990

1шт.

9

84401302

TERMINAL

Starter, X-989

1шт.

10

84398828

TERMINAL,3/8" Ring, SAE 8

Ground, X-916

1шт.

Выбрано товаров: 24
