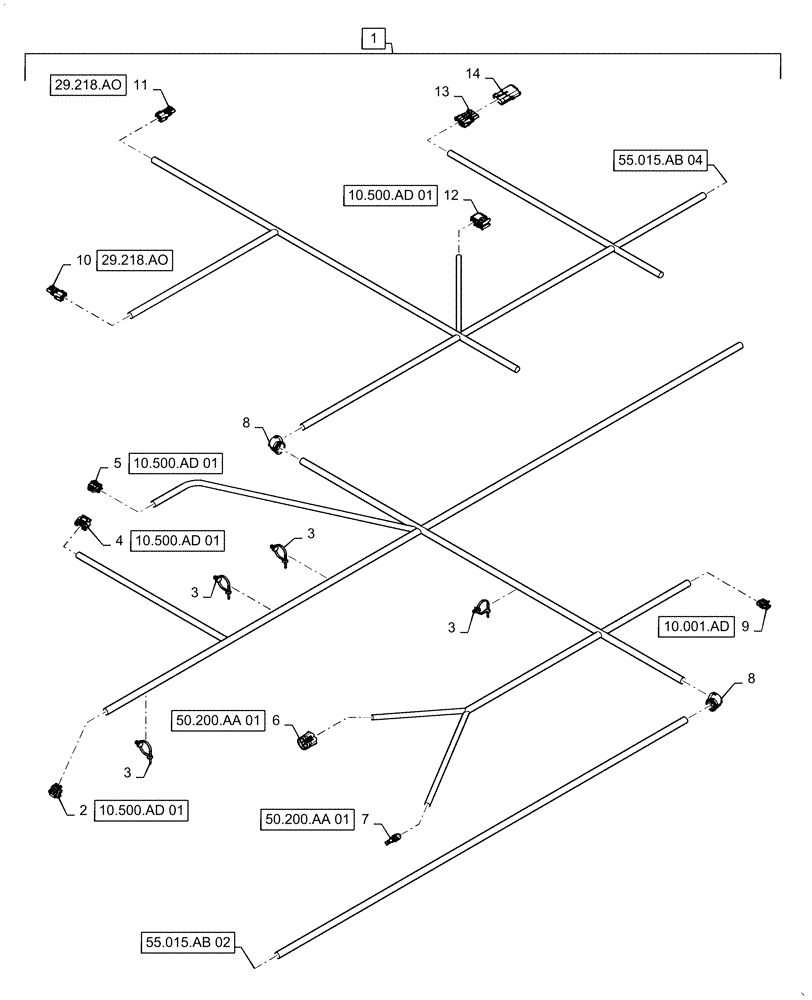

Запчасти Case IH 5140 (55.015.AB[03]) - WIRE HARNESS, ENGINE, CONTINUED (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47681971
WIRE HARNESS
Engine, NEF T4B, Incl 2 - 14
1шт.
2
84137906
BOOT
DOC Upstream Exhaust Gas Temp, X-651
1шт.
2
47399877
TERMINAL
DOC Upstream Exhaust Gas Temp, X-651
2шт.
3
84292754
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
4шт.
4
84190317
WIRE CONNECTOR,Female, 5 Cavities
DOC Upstream NOX, X-648
1шт.
4
84428160
BOOT
DOC Upstream NOX, X-648
1шт.
4
47400437
TERMINAL
DOC Upstream NOX, X-648
2шт.
4
47400436
TERMINAL
DOC Upstream NOX, X-648
3шт.
5
87709798
ELEC CONNECTOR,Female, 2 Cavities
Urea Dosing Valve, X-605
1шт.
5
84137906
BOOT
Urea Dosing Valve, X-605
1шт.
5
84130602
TERMINAL CONNECTOR
Urea Dosing Valve, X-605
2шт.
6
87688788
MULTIPOLE CONNECTOR,Male, 2 Pole
A/C High Pressure Switch, X-311
1шт.
6
87688862
LOCKING TAB
A/C High Pressure Switch, X-311
1шт.
6
87688814
TERMINAL
A/C High Pressure Switch, X-311
2шт.
7
87693744
WIRE CONNECTOR
A/C Compressor Clutch, X-310N
1шт.
7
87692876
CABLE TERMINAL,Female, Tin, 1 - 2mm
A/C Compressor Clutch, X-310N
1шт.
8
87497297
ELBOW
WIre Harness
2шт.
9
87687241
CONTACT HOUSING,Female, 2 Pole
Grid Heater Relay, X-360
1шт.
9
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
Grid Heater Relay, X-360
2шт.
10
87692855
CONTACT HOUSING,Male, 2 Cavities
Hydro Neutral Switch, X-184
1шт.
10
87692856
CABLE TERMINAL
Hydro Neutral Switch, X-184
2шт.
11
87692855
CONTACT HOUSING,Male, 2 Cavities
Hydraulic Oil Temp High, X-185
1шт.
11
87692856
CABLE TERMINAL
Hydraulic Oil Temp High, X-185
2шт.
12
84146685
WIRE CONNECTOR,Female, 3 Cavities
SCR Tank Heating Valve, X-612
1шт.
12
84123824
BOOT
SCR Tank Heating Valve, X-612
1шт.
12
84129571
PLUG
SCR Tank Heating Valve, X-612
1шт.
12
84152576
TERMINAL
SCR Tank Heating Valve, X-612
2шт.
13
87692817
ELEC CONNECTOR
Lincoln Lube, X-183
1шт.
13
87692876
CABLE TERMINAL,Female, Tin, 1 - 2mm
Lincoln Lube, X-183
3шт.
13
87692856
CABLE TERMINAL
Lincoln Lube, X-183
1шт.
14
87692802
ELEC CONNECTOR
Dust Cap, X-183A
1шт.
14
87686742
PLUG
Dust Cap, X-183A
4шт.
Выбрано товаров: 33
