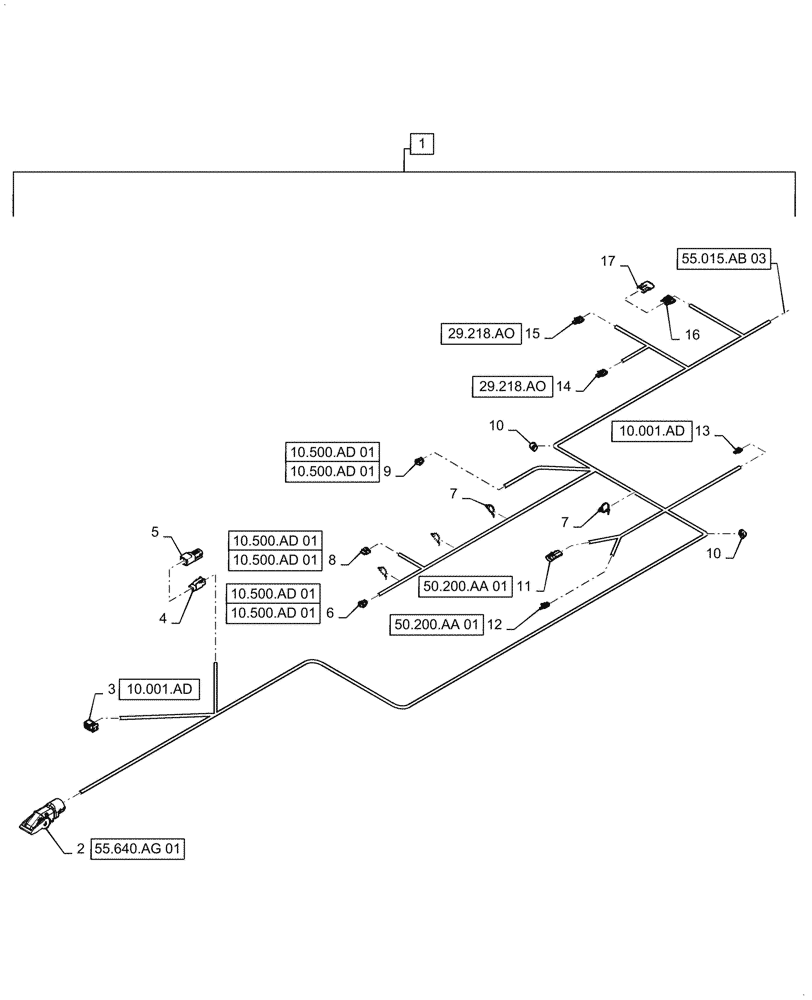

Запчасти Case IH 5140 (55.015.AB[02]) - WIRE HARNESS, ENGINE, SN YEG012001 THRU YEG012595 (55) - ELECTRICAL SYSTEMS

1

47537149

WIRE HARNESS

Engine, T4B, Incl 2 - 17, Serial Range: YEG012001-YEG012116

1шт.

Has a Shunt Wire in R1 Position of Relay Block

1шт.

1

47679303

WIRE HARNESS

Engine, T4B, Incl 2 - 17, Serial Range: YEG012117-YEG012595

1шт.

Has Shunt Wire Removed and R1 Position in Relay Block is Open

1шт.

2

84595906

ELEC CONNECTOR

ECM, X-358

1шт.

2

84596421

COVER

Backshell, ECM, X-358

1шт.

2

84300195

TERMINAL

ECM, X-358

40шт.

3

84152563

ELEC CONNECTOR

FPT Interface Connector C, X-647

1шт.

3

47529852

COVER

Backshell, FPT Interface Connector C, X-647

1шт.

3

84129571

PLUG

FPT Interface Connector C, X-647

3шт.

3

84152586

TERMINAL,Tin, 1.50 - 2.50mm

FPT Interface Connector C, X-647

2шт.

4

87696093

ELEC CONNECTOR,Female, 2 Cavities

CAN B Interface, X-650

1шт.

4

87696145

LOCKING TAB

CAN B Interface, X-650

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

CAN B Interface, X-650

2шт.

5

87696547

ELEC CONNECTOR,Female, 2 Cavities

Dust Cap, X-650A

1шт.

5

84807680

PLUG

Dust Cap, X-650A

2шт.

6

87709793

WIRE CONNECTOR,Female, 2 Cavities

DOC Upstream Exhaust Gas Temp, X-651

1шт.

6

84137906

BOOT

DOC Upstream Exhaust Gas Temp, X-651

1шт.

6

47399877

TERMINAL

DOC Upstream Exhaust Gas Temp, X-651

2шт.

7

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

4шт.

8

84190317

WIRE CONNECTOR,Female, 5 Cavities

DOC Upstream NOX, X-648

1шт.

8

84428160

BOOT

DOC Upstream NOX, X-648

1шт.

8

47400437

TERMINAL

DOC Upstream NOX, X-648

2шт.

8

47400436

TERMINAL

DOC Upstream NOX, X-648

3шт.

9

87709798

ELEC CONNECTOR,Female, 2 Cavities

Urea Dosing Valve, X-605

1шт.

9

84137906

BOOT

Urea Dosing Valve, X-605

1шт.

9

84130602

TERMINAL CONNECTOR

Urea Dosing Valve, X-605

2шт.

10

87497297

ELBOW

Conduit

2шт.

11

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

A/C High Pressure Switch, X-311

1шт.

11

87688862

LOCKING TAB

A/C High Pressure Switch, X-311

1шт.

11

87688814

TERMINAL

A/C High Pressure Switch, X-311

2шт.

12

87693744

WIRE CONNECTOR

A/C Compressor Clutch, X-310N

1шт.

12

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

A/C Compressor Clutch, X-310N

1шт.

13

87687241

CONTACT HOUSING,Female, 2 Pole

Grid Heater Relay, X-360

1шт.

13

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Grid Heater Relay, X-360

2шт.

14

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydro Neutral Switch, X-184

1шт.

14

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Hydro Neutral Switch, X-184

2шт.

15

87692855

CONTACT HOUSING,Male, 2 Cavities

Hydraulic Oil Temp High, X-185

1шт.

15

87692856

CABLE TERMINAL

Hydraulic Oil Temp High, X-185

2шт.

16

87692802

ELEC CONNECTOR

Dust Cap, X-183A

1шт.

16

87686742

PLUG

Dust Cap, X-183A

4шт.

17

87692817

ELEC CONNECTOR

Lincoln Lube, X-183

1шт.

17

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Lincoln Lube, X-183

3шт.

17

87692856

CABLE TERMINAL

Lincoln Lube, X-183

1шт.
