Запчасти Case IH 5140 (55.015.AB[02]) - WIRE HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

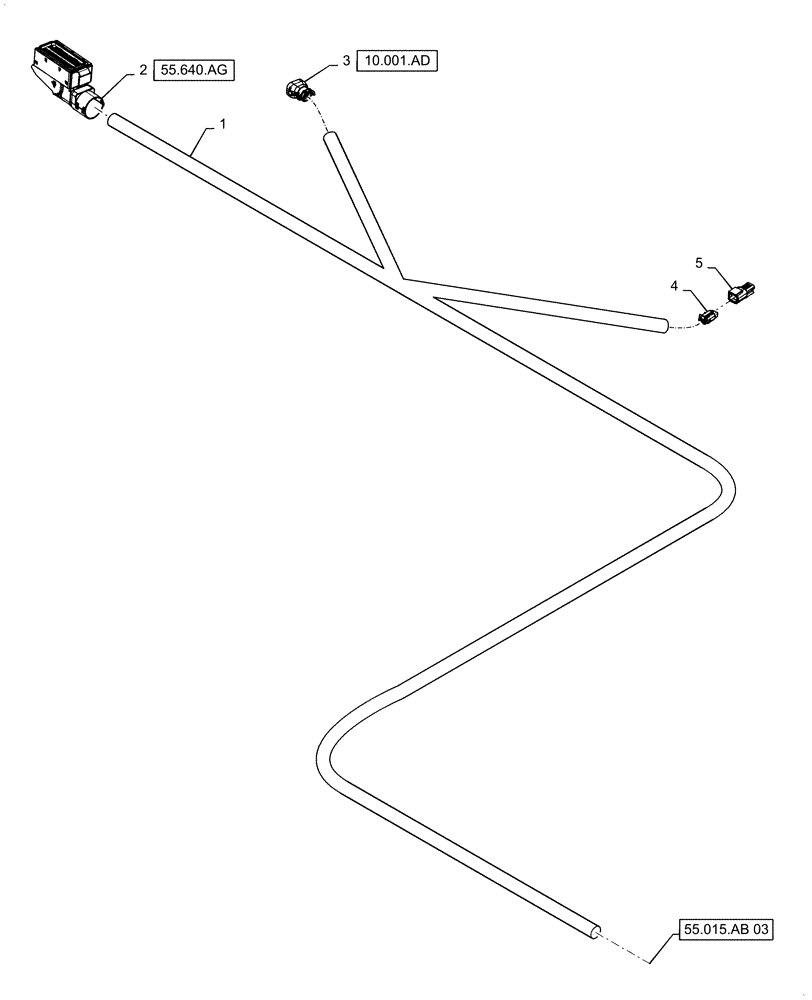

![Схема запчастей Case IH 5140 - (55.015.AB[02]) - WIRE HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5389257.png)
55.640.ag
5
3
2
1
4
3
55.015.ab 03
10.001.ad
10.001.ad
№
Артикул
Название
Примечание
Количество
1
47681971
WIRE HARNESS
Engine, NEF T4B, Incl 2 - 5
1шт.
2
84595906
ELEC CONNECTOR
ECM, X-358
1шт.
2
84596421
COVER
ECM, X-358
1шт.
2
84300195
TERMINAL
ECM, X-358
39шт.
3
84152563
ELEC CONNECTOR
FPT Interface Connector, X-647
1шт.
3
47529852
COVER
FPT Interface Connector, X-647
1шт.
3
84152586
TERMINAL,Tin, 1.50 - 2.50mm
FPT Interface Connector, X-647
2шт.
3
84152576
TERMINAL
FPT Interface Connector, X-647
2шт.
4
87696093
ELEC CONNECTOR,Female, 2 Cavities
CAN B Interface, X-650
1шт.
4
87696145
LOCKING TAB
CAN B Interface, X-650
1шт.
4
87696954
TERMINAL,Female, Nickel, 0.35 - 1.50mm
CAN B Interface, X-650
2шт.
5
84807680
PLUG
Dust Cap, X650A
2шт.
Выбрано товаров: 13
