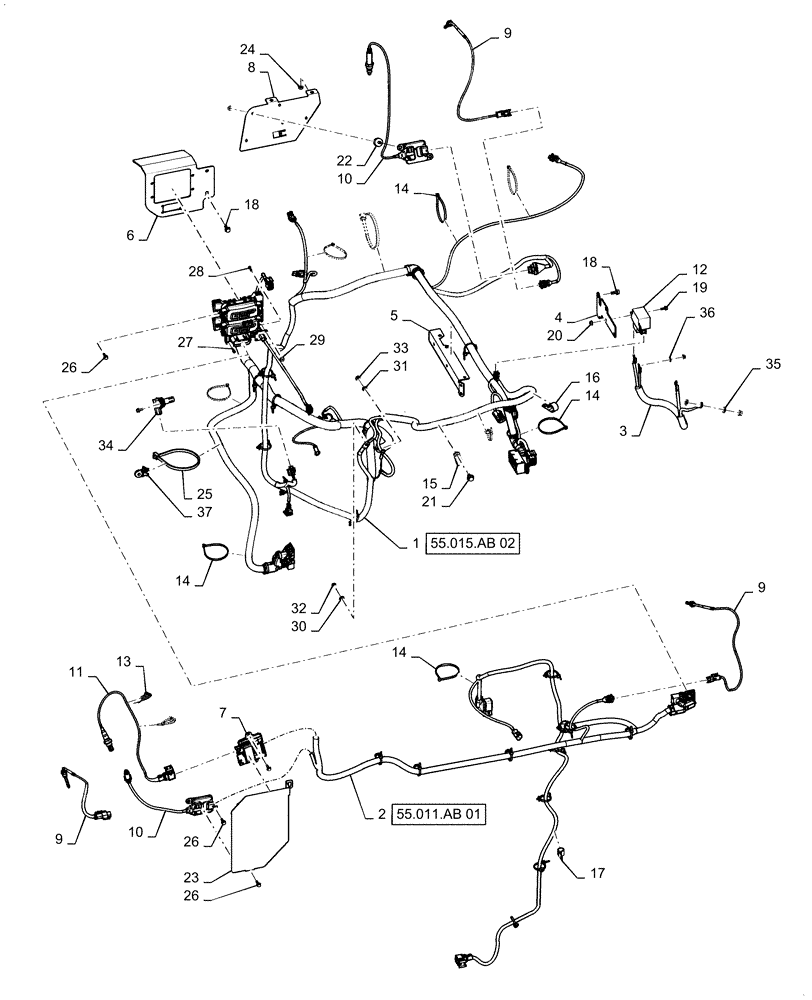

Запчасти Case IH 5140 (55.015.AB[01]) - WIRING ASSY, ENGINE (55) - ELECTRICAL SYSTEMS

1

47537149

WIRE HARNESS

Engine, Serial Range: YEG012001-YEG012116

1шт.

1

47679303

WIRE HARNESS

Wire Harness, Engine, Serial Range: YEG012117-YEG012595

1шт.

1

47681971

WIRE HARNESS

Engine, Serial Range: YEG012596-YFG014000

1шт.

2

47565487

WIRE HARNESS

T4B Exhaust

1шт.

3

87391332

WIRE HARNESS

Grid Heater

1шт.

4

84312225

SUPPORT

Relay

1шт.

5

47406561

BRACKET

Wiring Harness

1шт.

6

47383498

BULKHEAD

Bracket

1шт.

7

47368959

ECU

DEF/ADBLUE Injection

1шт.

8

47543627

PLATE

Upstream Sensor

1шт.

9

47478880

TEMPERATURE SENDER,50mm, Closed

EGT, Exhaust Gas Temperature

3шт.

10

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX Sensor

2шт.

11

47520140

SENSOR,8 Pin

DEF/ADBLUE

1шт.

12

86619908

RELAY,12V, 150A

Grid Heater

1шт.

13

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Fir Tree

8шт.

14

86566990

CABLE TIE,292mm OAL x 4.8mm W

13шт.

15

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

87032428

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, J Type

1шт.

17

510640

CLIP,15.8mm, Coat, 10.3mm Bolt Hole, J Type

J, 15.8mm Insulated

1шт.

18

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

6шт.

19

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

4шт.

20

86050300

FLANGE NUT,M6 x 1.0, Cl 10

9шт.

21

87021006

BOLT,M10 x 26.4mm, Cl 10.9

1шт.

22

84341086

DAMPER,M6 x 51mm, 25mm OD

Rubber, M6 Stud

2шт.

23

47438724

SHEET

SCR Electrical Cover

1шт.

24

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

25

529070

CABLE TIE,368.3mm L

4шт.

26

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

8шт.

27

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

4шт.

28

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

4шт.

29

100012

NUT,M4 x 0.7, Cl 8

4шт.

30

80681

LOCK WASHER,5/16"

1шт.

31

892-11005

LOCK WASHER,M5

1шт.

32

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

33

84139322

NUT

M5

1шт.

34

87482355

SENSOR

Inlet Air Temperature

1шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

36

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

37

84474186

BASE

Wire Tie

1шт.
