Запчасти Case IH 5140 (50.200.AB[01]) - TUBE, HOSE, AIR CONDITIONER, ENGINE (50) - CAB CLIMATE CONTROL

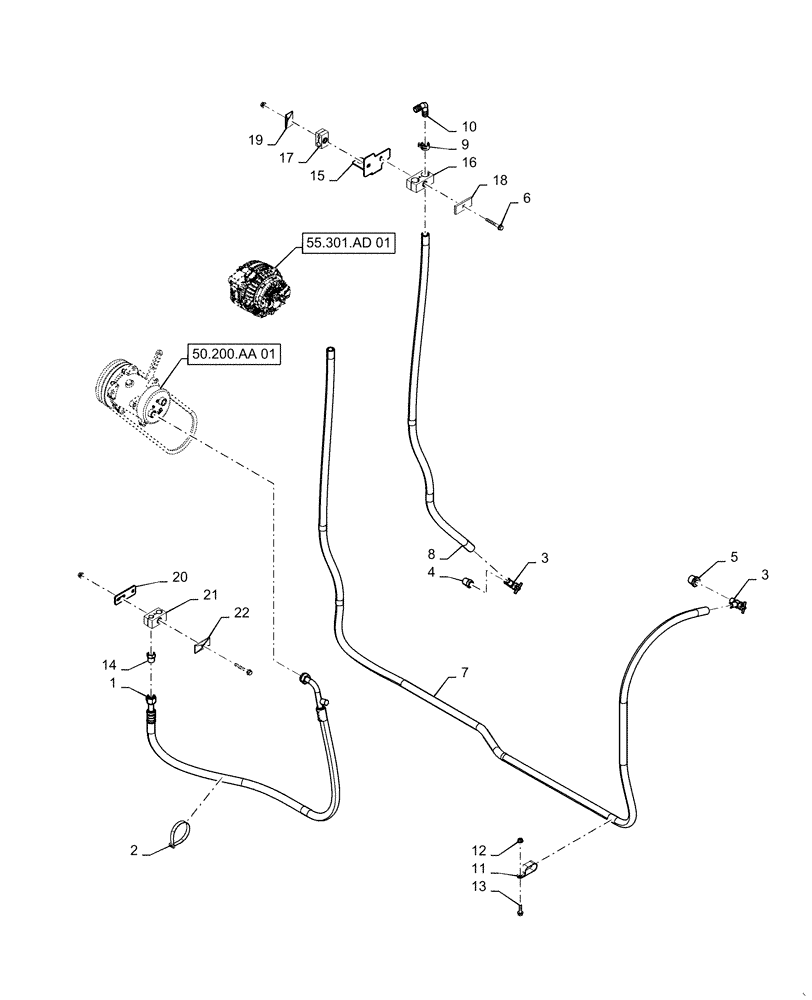

Схема запчастей Case IH 5140 - (50.200.AB[01]) - TUBE, HOSE, AIR CONDITIONER, ENGINE (50) - CAB CLIMATE CONTROL
2
12
9
14
21
50.200.aa 01
7
19
11
20
22
16
3
3
10
17
18
4
6
5
55.301.ad 01
15
13
8
1

Артикул

Название

Примечание

Количество

1

47467583

A/C HOSE

Suction

1шт.

2

84266050

CABLE TIE,384mm L, Polyamide

Strap

1шт.

3

301803R1

SHUT-OFF VALVE

90 Degree

2шт.

4

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

5

87015348

REDUCER,3/4"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

6

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

4шт.

7

87567192

HEATER HOSE,5/8” Bulk Roll 500 FT, Return

Heater Hose Supply, 143.7", Cut From Bulk

1шт.

8

47426827

HEATER HOSE

Heater Hose Return

1шт.

9

1954736C1

HOSE CLAMP,#24

4шт.

10

127083A1

ELBOW,16mm OD x 17mm OD Bead

Heater Hose

2шт.

11

470375C1

CLAMP,1", Insul, 3/8" Bolt

Tube

4шт.

12

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

13

87030775

BOLT,M8 x 38.1mm, Cl 10.9

5шт.

14

47405998

TUBE

A/C Suction

1шт.

15

47408802

BRACKET

Tube Clamp

1шт.

16

87000152

CLAMP,25.4mm D Clamping Pipes x 2

Tube, 25.4mm x 25.4mm

1шт.

17

87000159

CLAMP

Tube, 15.87mm x 9.52mm

1шт.

18

84283495

SECURING STRAP

Hydraulic Clamp Mounting

1шт.

19

72180326

PLATE

Clamp Support

1шт.

20

84551627

BRACKET

Adjustment

1шт.

21

87000144

CLAMP

Tube, 19.05mm x 15.87mm

2шт.

22

87000230

PLATE

Hose Clamp

2шт.

Выбрано товаров: 22
