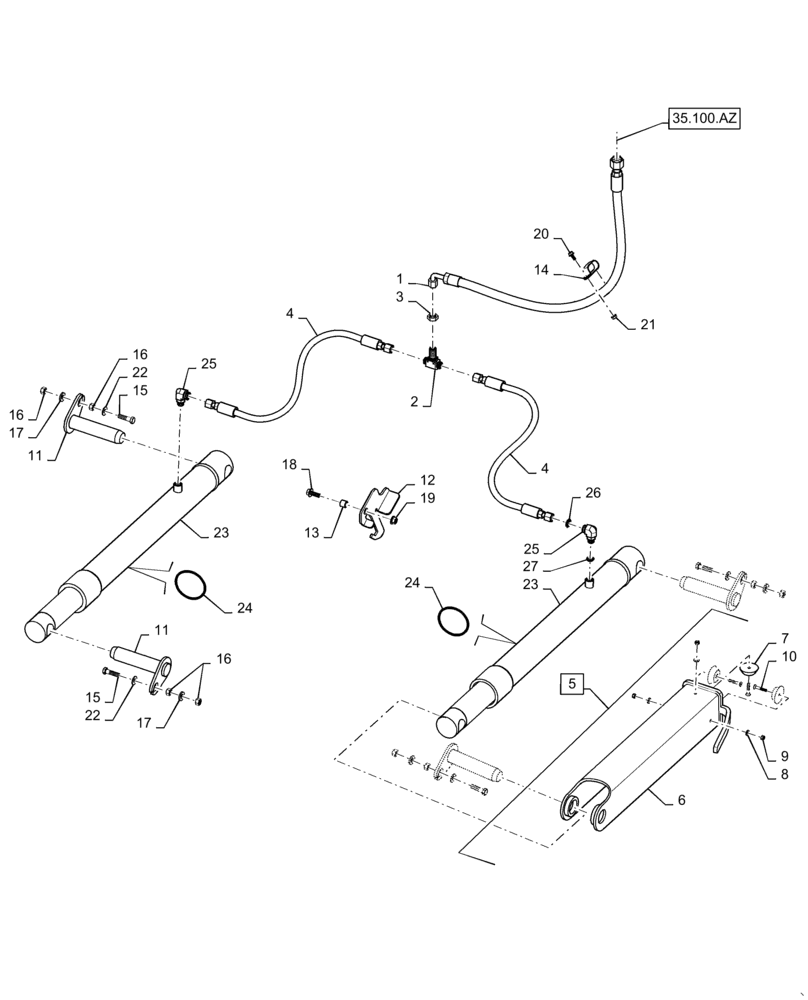

Запчасти Case IH 5140 (35.410.AH[01]) - VAR - 425193 - HYDRAULIC SYSTEM, FEEDER, HYDRAULIC LIFT (35) - HYDRAULIC SYSTEMS

1

84490696

HOSE ASSY.,15.88mm ID x 1170mm L, SAE 100R17

Feeder Lift

1шт.

2

201-452

TEE,13/16"-16, Blkhd Br

1шт.

3

87381289

BHD LOCK NUT,13/16"-16, 12mm OD

13/16" - 16

1шт.

4

87673511

HOSE ASSY.

To Lift Cylinder

2шт.

5

84411618

STAND

75mm, Incl 6 - 10

1шт.

6

84411619

CHANNEL

75mm

1шт.

7

87499125

LINER

Poly

3шт.

8

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

9

353308

NUT,M6 x 1.0, Cl 8

3шт.

10

1589127

SCREW,Flat Csk Hd, M6 x 35mm, Cl 8.8

3шт.

11

87332721

PIN ASSY.,41.27mm OD x 202mm L

41.275mm OD x 117.8mm

4шт.

12

84402613

HANGER

Safety Stand

1шт.

13

87387107

BUSHING

Hanger Pivot

1шт.

14

470375C1

CLAMP,1", Insul, 3/8" Bolt

P-Style

1шт.

15

120080

BOLT,Hex, M12 x 45, 8.8

4шт.

16

9706685

NUT,M12 x 1.75, Cl 8

8шт.

17

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

18

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

1шт.

19

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

21

86507066

FLANGE NUT,M8 x 1.25, Cl 10

1шт.

22

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

23

84365099

CYLINDER,60mm Rod, 654mm Stroke

Feeder Lift, 75mm

2шт.

24

84274488

SEAL KIT

Lift Cylinder, Services 23

1шт.

25

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 26, 27

2шт.

26

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

27

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
