Запчасти Case IH 5140 (29.218.AD) - HYDROSTATIC PUMP, MOUNTING PARTS, 105CC (29) - HYDROSTATIC DRIVE

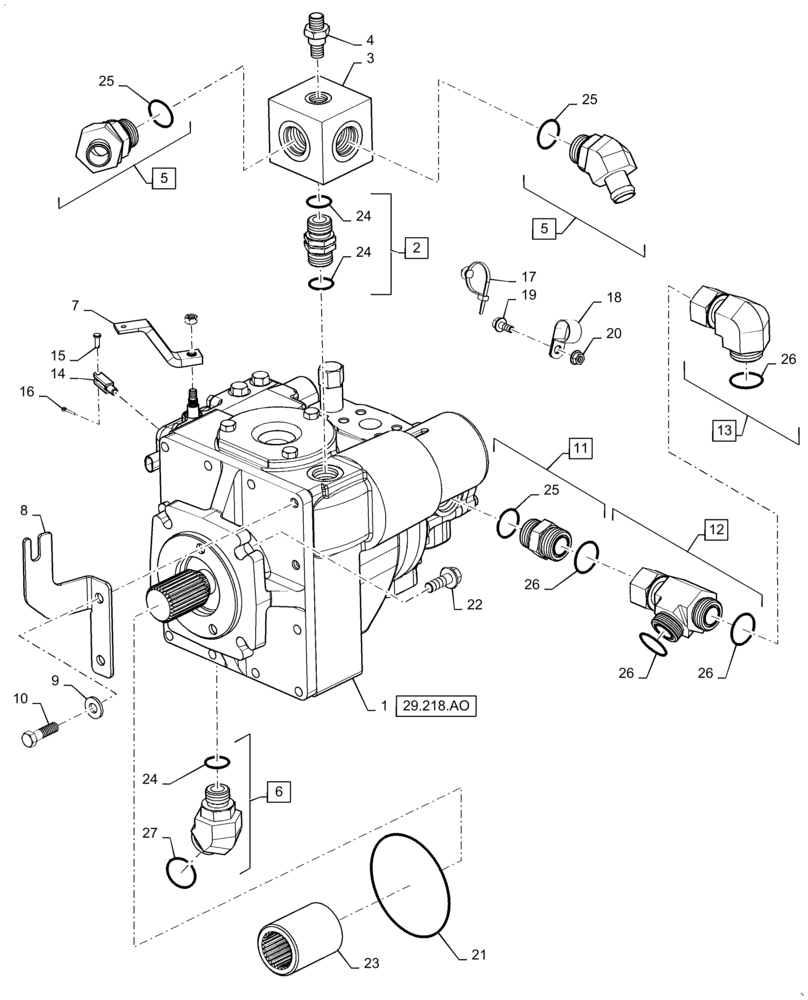

Схема запчастей Case IH 5140 - (29.218.AD) - HYDROSTATIC PUMP, MOUNTING PARTS, 105CC (29) - HYDROSTATIC DRIVE
5
14
26
21
8
24
4
18
25
17
2
1
24
20
16
10
7
24
23
12
6
19
5
11
26
27
13
25
3
15
26
25
22
9
26
29.218.ao

Артикул

Название

Примечание

Количество

1

84148069

HYDROSTATIC PUMP,105.4 CC

105CC

1шт.

1

84148069R

REMAN-HYDROSTAT PUMP

1шт.

1

84148069C

CORE-HYDROSTAT PUMP

Return

1шт.

2

86517116

HYD CONNECTOR,1-1/16-12 ORB x 1-1/16-12 ORB

Union, Incl 24

1шт.

3

47388263

TEE

Case Drain

1шт.

4

177678A1

TEMPERATURE SWITCH

Temperature

1шт.

5

87029968

HYD CONNECTOR

Stem, 45 Degree, 1" ID x 1 5/16" -12, Incl 25

2шт.

6

87302733

HYD CONNECTOR

Elbow, 45 Degree 1" ORFS - ORB 3/4", Incl 24, 27

1шт.

7

47428202

LEVER

Control, Hydrostat

1шт.

8

47428203

BRACKET

Hydro Control Cable

1шт.

9

495-81009

WASHER,.469" x 1" x .120"

2шт.

10

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

2шт.

11

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl 25 - 26

1шт.

12

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl 26

1шт.

13

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 26

1шт.

14

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

15

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

16

280236

COTTER PIN,1/16" x 1/2"

1шт.

17

84292754

CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL

Fir Tree

3шт.

18

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

19

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

1шт.

20

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

21

274336

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

Hydrostatic Pump Mount

1шт.

22

87695414

BOLT,M12 x 1.25 x 46.8mm, Cl 10.9

4шт.

23

84292721

COUPLING

Pump To PTO

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

27

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
