Запчасти Case IH 5140 (25.100.AV) - VAR - 425194, 425196, 425197 - AXLE EXTENSION (25) - FRONT AXLE SYSTEM

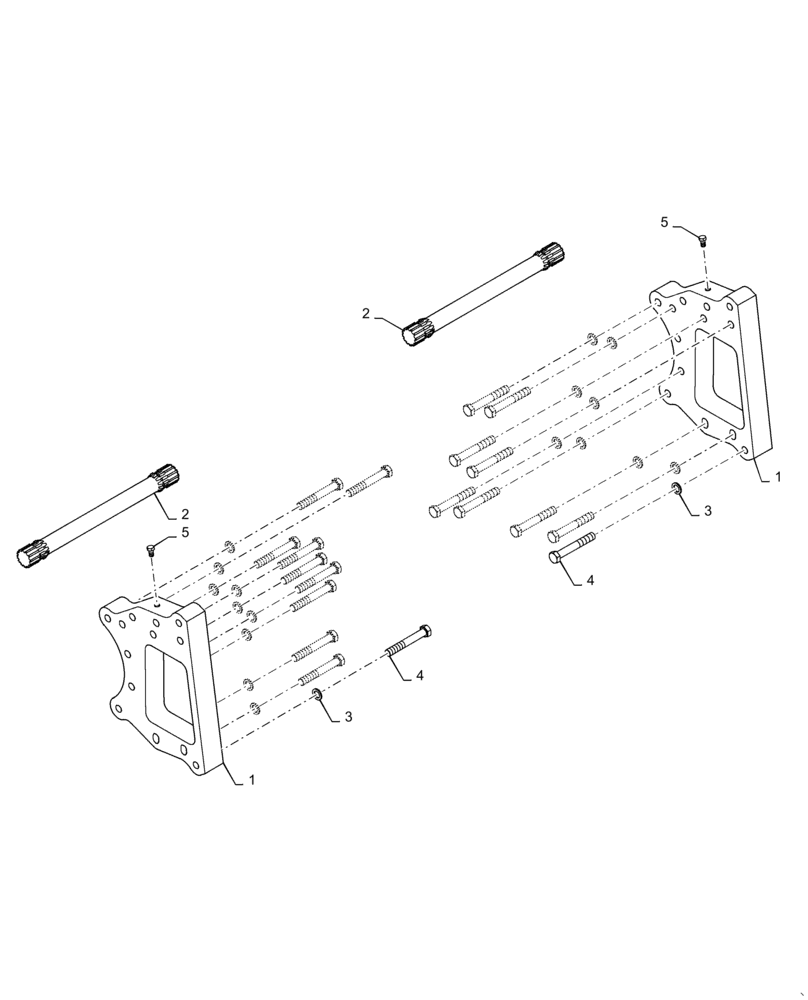

Схема запчастей Case IH 5140 - (25.100.AV) - VAR - 425194, 425196, 425197 - AXLE EXTENSION (25) - FRONT AXLE SYSTEM
3
2
5
5
4
1
3
1
4
2

Артикул

Название

Примечание

Количество

1

87704454

EXTENSION

Axle, 70mm OAL, - VAR - 425194, 425197

1шт.

2

87703491

SHAFT

Final Drive, 572mm OAL, - VAR - 425194, 425197

1шт.

2

87638946

SHAFT

Final Drive, 502mm OAL, - VAR - 425194, 425196

1шт.

3

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

Final Drive, 33.5mm OD x 21.3mm ID x 4mm W

26шт.

4

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

VAR - 425194, 425197

1шт.

4

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

VAR - 425194, 425196

1шт.

5

43151

BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

VAR - 425194, 425197

1шт.

Выбрано товаров: 7
