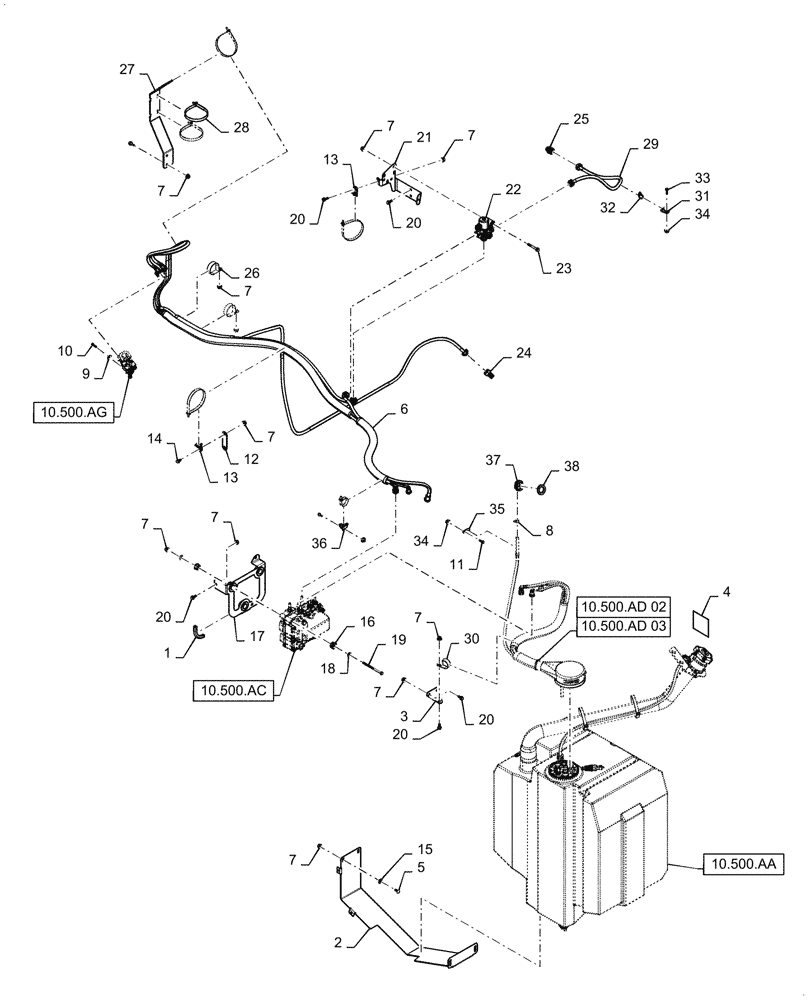

Запчасти Case IH 5140 (10.500.AD[01]) - DEF/ADBLUE™ LINES & TANK (10) - ENGINE

1

1327979C1

MOLDING

Edge Channel

1шт.

2

47378282

SUPPORT

DEF/ADBLUE™ Tank Bottom

1шт.

3

47975533

BRACKET

DEF/ADBLUE™ Bundle Support

1шт.

4

47692590

DECAL

DEF/ADBLUE™ Tank - Clean Machine

1шт.

5

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

4шт.

6

47967119

TUBE

DEF/ADBLUE™ Bundle, Engine

1шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

22шт.

8

87436932

CLAMP,13.9mm - 15.5mm, Spring

1шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

10

14432221

HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8

3шт.

11

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

2шт.

12

84519694

SUPPORT

DEF/ADBLUE™ Bundle

1шт.

13

84474186

BASE

Tie

2шт.

14

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

1шт.

15

131-440

PUSH-ON NUT

Retainer

4шт.

16

2855150

INSULATOR BLOCK

Bushing

6шт.

17

47426870

BRACKET

Supply Unit

1шт.

18

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

19

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

3шт.

20

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

11шт.

21

47583204

BRACKET

Coolant Valve

1шт.

22

84483089

HEATER,12V

Valve, 12V

1шт.

23

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

3шт.

24

87270102

FITTING,1/2" NPTF to Quick Connect

1шт.

25

47441450

ADAPTER

264 NG

1шт.

26

87573379

CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

27

47556126

BRACKET

DEF/ADBLUE™ Bundle at DOC

1шт.

28

84266050

CABLE TIE,384mm L, Polyamide

6шт.

29

47967117

HOSE

Coolant Supply

1шт.

30

87301688

CLAMP,41.2mm, Coat, P Type

1шт.

31

84340333

BASE PLATE

Wire Tie

1шт.

32

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

33

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

1шт.

34

86050300

FLANGE NUT,M6 x 1.0, Cl 10

3шт.

35

87564736

CLAMP,14.3mm, Insul, M6 Bolt

1шт.

36

84360210

BASE

Tie

1шт.

37

47592873

FILTER, DEF

Breather

1шт.

38

47592880

FILTER

Foam Element, Breather

1шт.
