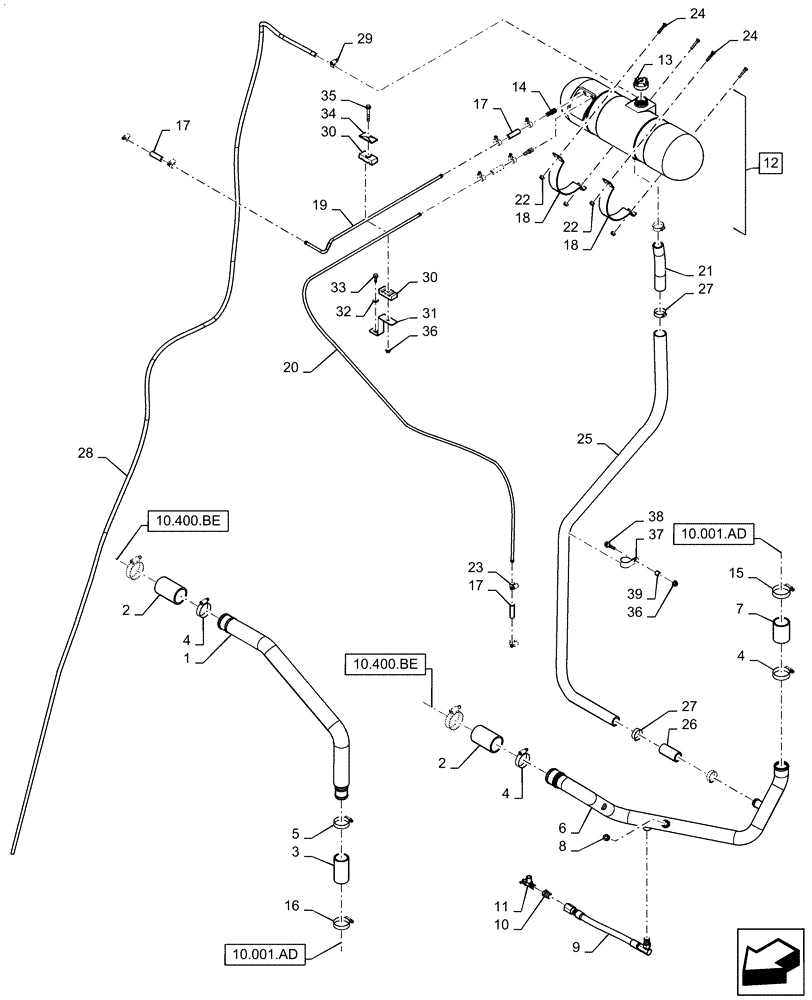

Запчасти Case IH 5140 (10.400.BI) - COOLING SYSTEM CIRCUIT (10) - ENGINE

1

84255125

TUBE

Upper Radiator

1шт.

2

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

Radiator

2шт.

3

87577140

RADIATOR HOSE,44.50mm ID x 100mm

Coolant Outlet

1шт.

4

214-3248

HOSE CLAMP,57mm - 79mm

3шт.

5

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

6

47422212

TUBE

Lower Radiator

1шт.

7

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

Aspirator

1шт.

8

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

9

84311373

HOSE ASSY.,12.7mm ID x 400mm L, SAE 100R1

Radiator Drain

1шт.

10

217-1035

REDUCER FITTING,1/2" - 14 Male NPTF x 3/8" - 18 Female NPTF

1шт.

11

301803R1

SHUT-OFF VALVE

90°

1шт.

12

87670349

RESERVOIR, COOLANT E

Deaeration Bottle, Incl 13, 14

1шт.

13

82022744

CAP,Female, Vented, Non-Locking

Deaeration Bottle

1шт.

14

87742820

FITTING,1/4" Barb x 3/8" Pipe

Barb to Male Pipe

2шт.

15

87778863

CLAMP,57mm ID - 79mm ID x 16mm W, Lined

3шт.

16

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

17

47548019

HOSE

Deaeration Connection

4шт.

18

84442536

CLAMP

Red

2шт.

19

47419355

TUBE

Engine Vent, NEF and Cursor

1шт.

20

47509931

TUBE

Engine Vent, NEF

1шт.

21

84271697

HOSE,28.6mm ID x 200mm L, SAE20R1

Deaeration Connection

1шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

23

87436932

CLAMP,13.9mm - 15.5mm, Spring

8шт.

24

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

25

47427228

TUBE

Deaeration

1шт.

26

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

Lower Radiator Connection

1шт.

27

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

4шт.

28

47720522

HOSE,7.1mm ID x 3850mm L

Deaeration Connection

1шт.

29

86625022

HOSE CLAMP,6.3mm - 15.7mm

1шт.

30

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Hose

1шт.

31

47543817

BRACKET

Deaeration Tube Support, Red

1шт.

32

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

33

87698833

BOLT,M8 x 33.1mm, Cl 10.9

1шт.

34

87000230

PLATE

Hose Clamp

1шт.

35

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

1шт.

36

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

37

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

38

87030775

BOLT,M8 x 38.1mm, Cl 10.9

1шт.

39

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

1шт.
