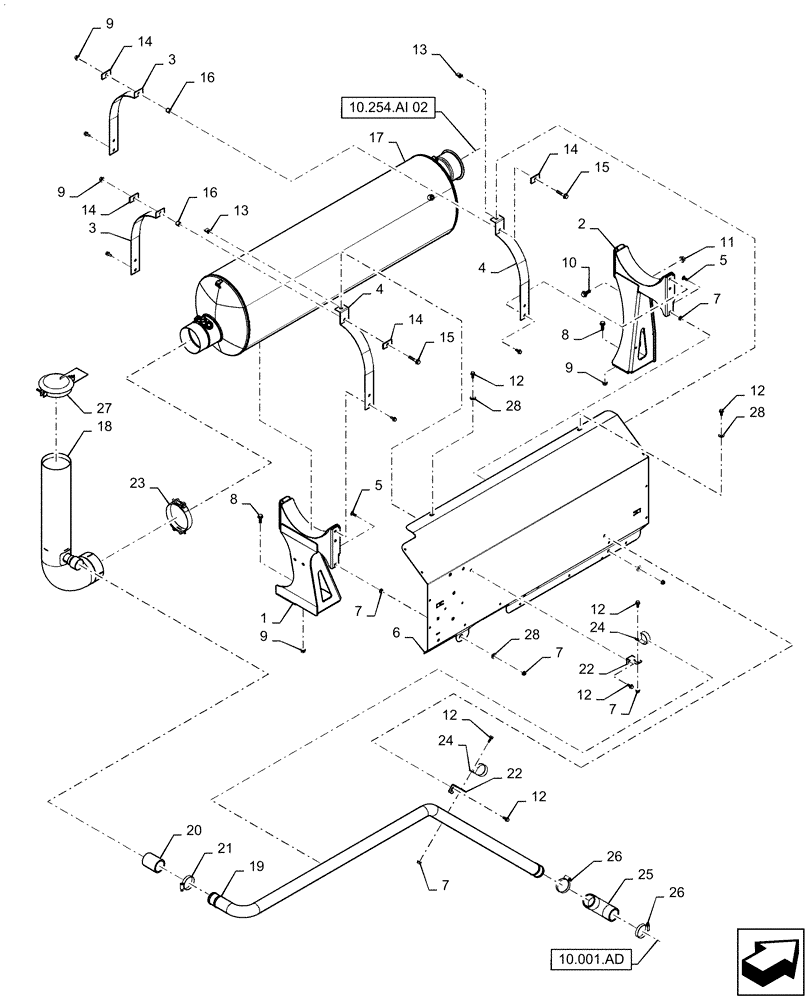

Запчасти Case IH 5140 (10.254.AI[03]) - MUFFLER ASSY W/ SHIELD (10) - ENGINE

1

47451790

BASE PLATE

Support, SCR Rear, Heat Resistant Black

1шт.

2

47547209

BASE PLATE

Support, SCR Front, Heat Resistant Black

1шт.

3

47451781

STRAP

Left, Heat Resistant Black

2шт.

4

47451783

STRAP

Right, Heat Resistant Black

2шт.

5

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

6

47439414

SHIELD

Heat, Dark Gray

1шт.

7

86507066

FLANGE NUT,M8 x 1.25, Cl 10

6шт.

8

87698837

FLANGE BOLT,M10 x 30mm, Full Thd, Cl 10.9

9шт.

9

86050279

FLANGE NUT,M10 x 1.5, Cl 10

11шт.

10

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

2шт.

11

86512497

FLANGE NUT,M12 x 1.75, Cl 10

2шт.

12

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

14шт.

13

86508354

PUSH-ON NUT,M8 x 1.25

2шт.

14

47461464

SPACER,11mm OD x 50mm L x 4.37mm Thk

Exhaust Strap

4шт.

15

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

2шт.

16

87340800

SPACER,5/8" Tube x 15.88mm

2шт.

17

47447513

MUFFLER

SCR Cluster

1шт.

18

47575650

EXHAUST SYSTEM PIPE

Extension, Heat Resistant Black

1шт.

19

47394885

PIPE

Aspiration

1шт.

20

87308234

HOSE,32mm ID - 66.67mm ID x 16mm W, Unlined

Aspirator

1шт.

21

86625019

HOSE CLAMP,44mm - 67mm

1шт.

22

47431680

BRACKET

Standoff, Dark Gray

2шт.

23

84193757

CLAMP,122mm - 130mm, Band

Muffler Extension

1шт.

24

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

Aspiration Pipe Support

2шт.

25

84378692

RADIATOR HOSE

Aspiration

1шт.

26

86625019

HOSE CLAMP,44mm - 67mm

3шт.

27

84594139

COVER,5" ID, High Temperature

Rain Cap

1шт.

28

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
