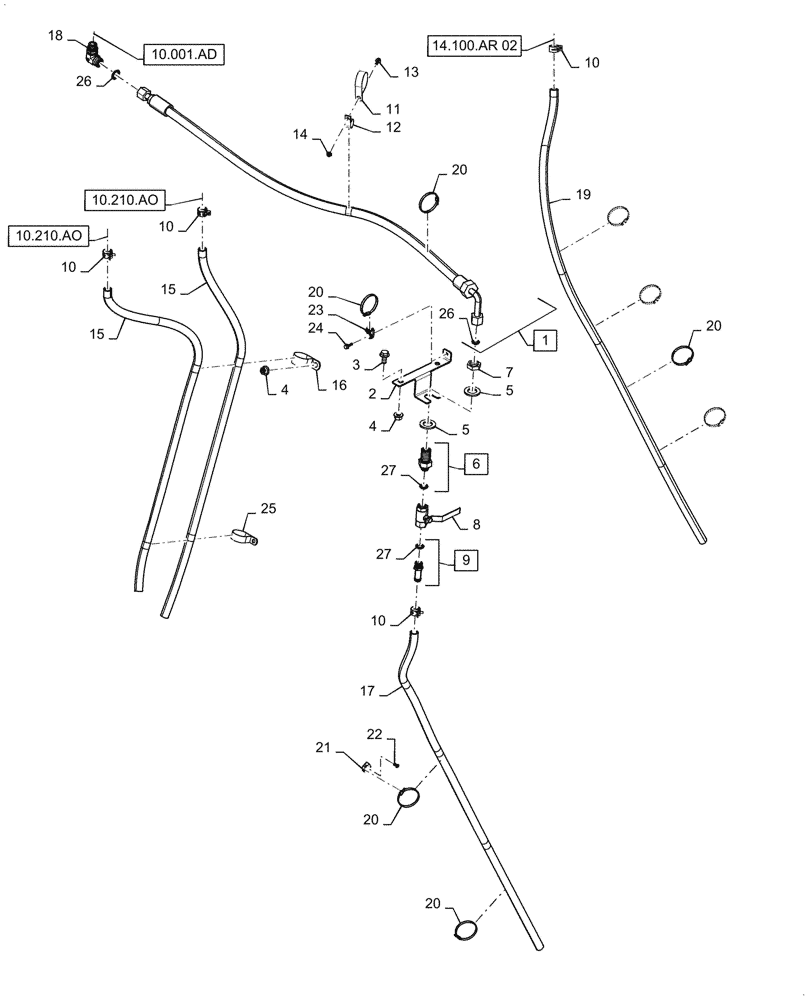

Запчасти Case IH 5140 (10.102.AW) - REMOTE DRAIN LINE (10) - ENGINE

1

84311371

HOSE ASSY.,15.88mm ID x 1350mm L, SAE 100R17

Oil Drain, Incl 26

1шт.

2

47794955

BRACKET

Bulkhead Support

1шт.

3

87343550

FLANGE BOLT,Hex, M12 x 25mm

2шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

3шт.

5

140022

WASHER,26mm ID x 44mm OD x 4mm Thk

2шт.

6

84288936

FITTING,3/4" - 16 ORB x 1" - 14 ORFS

Incl 27

1шт.

7

201-919

BHD LOCK NUT,1" - 14

1шт.

8

84185100

SHUT-OFF VALVE,3/4" - 16 x 3/4" - 16

1шт.

9

217-395

FITTING,5/8" Hose Barb x 3/4" - 16 Male ORB

Incl 27

1шт.

10

1954736C1

HOSE CLAMP,#24

4шт.

11

700514

CLAMP,3.8mm, Coat, M8 Bolt

1шт.

12

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

13

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

1шт.

14

86050300

FLANGE NUT,M6 x 1.0, Cl 10

2шт.

15

87106674

FLEXIBLE HOSE,5/8" ID

Drain

2шт.

16

86639007

CLAMP,44.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

17

1977293C3

HOSE,15.748mm ID x 1700mm L

Drain and Breather

1шт.

18

84562836

90 ELBOW

Engine Connection

1шт.

19

84364071

FLEXIBLE HOSE,15.75mm ID x 1900mm L

Hose and Breather

1шт.

20

306132C1

CABLE TIE,14.5" L

11шт.

21

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

4шт.

22

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

23

84340333

BASE PLATE

Wire Tie

1шт.

24

87675531

FLANGE BOLT,M6 x 26.6mm, Cl 10.9

1шт.

25

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

26

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
