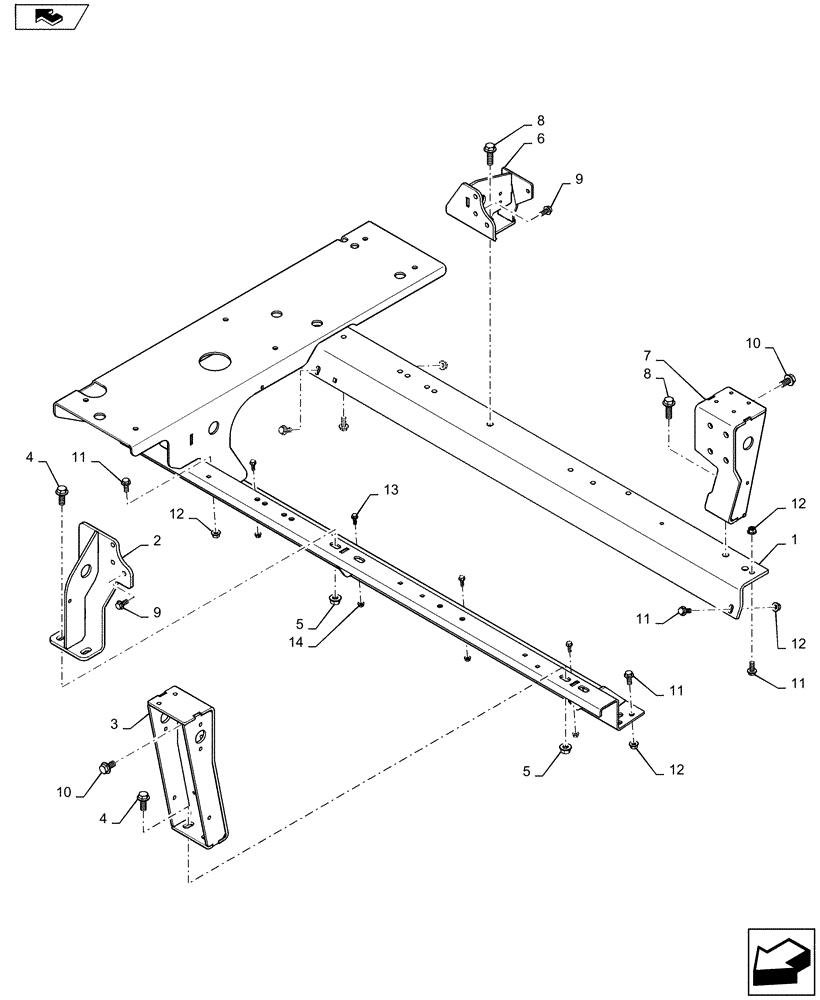

Запчасти Case IH 5140 (10.001.AK) - ENGINE MOUNT FRAME (10) - ENGINE

1

47608063

FRAME

Engine Mount

1шт.

2

84255166

BRACKET

Engine Support

1шт.

3

47375124

SUPPORT

Engine

1шт.

4

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

4шт.

5

87016581

FLANGE NUT,M16 x 2, CI 10

4шт.

6

47375155

MOUNT

Engine, Front

1шт.

7

47375165

MOUNT

Engine, Rear

1шт.

8

87698849

BOLT,M16 x 50mm, Cl 10.9

2шт.

9

87343550

FLANGE BOLT,Hex, M12 x 25mm

6шт.

10

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

8шт.

11

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

8шт.

12

86512497

FLANGE NUT,M12 x 1.75, Cl 10

7шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

4шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.
