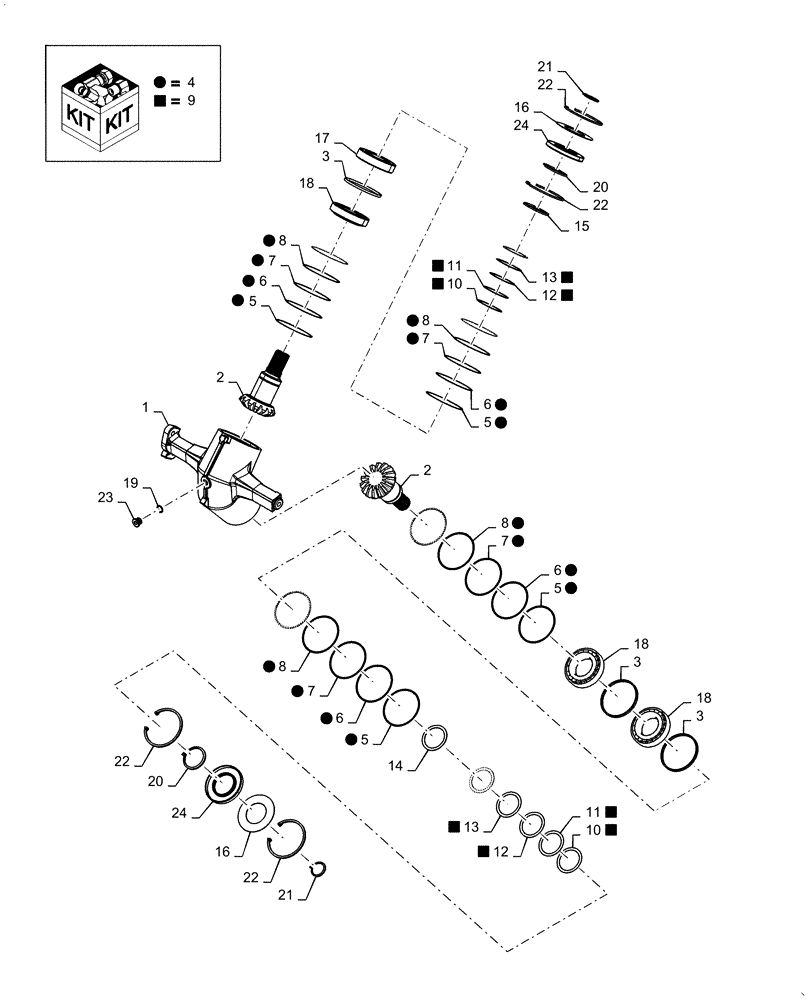

Запчасти Case IH 5140 (80.180.BN) - VAR - 425312, 425329, 722983, 425077, 425313, 425330, 425078, 425314, 722740 - UNLOADING TUBE UPPER GEARBOX (80) - CROP STORAGE/UNLOADING

1

87331121

HOUSING

Upper Unloader

1шт.

2

87331114

BEVEL GEAR

Shaft

2шт.

3

87332420

SPACER, RING

Shim, 94mm x 99.9mm x 5mm

3шт.

4

87346736

SHIM KIT

94mm x 100mm, Incl 5 - 8

4шт.

5

87346738

SHIM,94.2mm ID x 99.8mm OD x 0.3mm Thk

3шт.

6

87346739

SHIM,94.2mm ID x 99.8mm OD x 0.35mm Thk

3шт.

7

87346740

SHIM,94.2mm ID x 99.8mm OD x 0.4mm Thk

2шт.

8

87346741

SHIM,94.2mm ID x 99.8mm OD x 0.5mm Thk

2шт.

9

87332423

SHIM KIT

55mm x 68mm, Incl 10 - 13

2шт.

10

87345883

SHIM,55mm ID x 68mm OD x 0.1mm Thk

4шт.

11

87345884

SHIM,55mm ID x 68mm OD x 0.15mm Thk

4шт.

12

87345889

SHIM,55mm ID x 68mm OD x 0.3mm Thk

3шт.

13

87345890

SHIM,55mm ID x 68mm OD x 0.5mm Thk

2шт.

14

87345893

SHIM,55mm ID x 68mm OD x 1mm Thk

1шт.

15

87345894

SHIM,55mm ID x 68mm OD x 3mm Thk

1шт.

16

87332418

WASHER,55.5mm ID x 99.9mm OD x 1mm Thk

2шт.

17

ST265

BALL BEARING,55mm ID x 100mm OD x 21mm Thk

1шт.

18

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

3шт.

19

9511034

SEAL

Washer

1шт.

20

800-5155

SNAP RING,M55 x 3mm Thk, External

2шт.

21

87349260

SNAP RING,M34, External

2шт.

22

370026

SNAP RING,M100 x 3mm Thk, Internal

4шт.

23

84437088

PLUG,3/8" Gas

1шт.

24

87331115

SEAL,55mm ID x 100mm OD x 10mm Thk

Lip

2шт.
